Fuse Block - Rear C4
Fuse Block - Rear C4

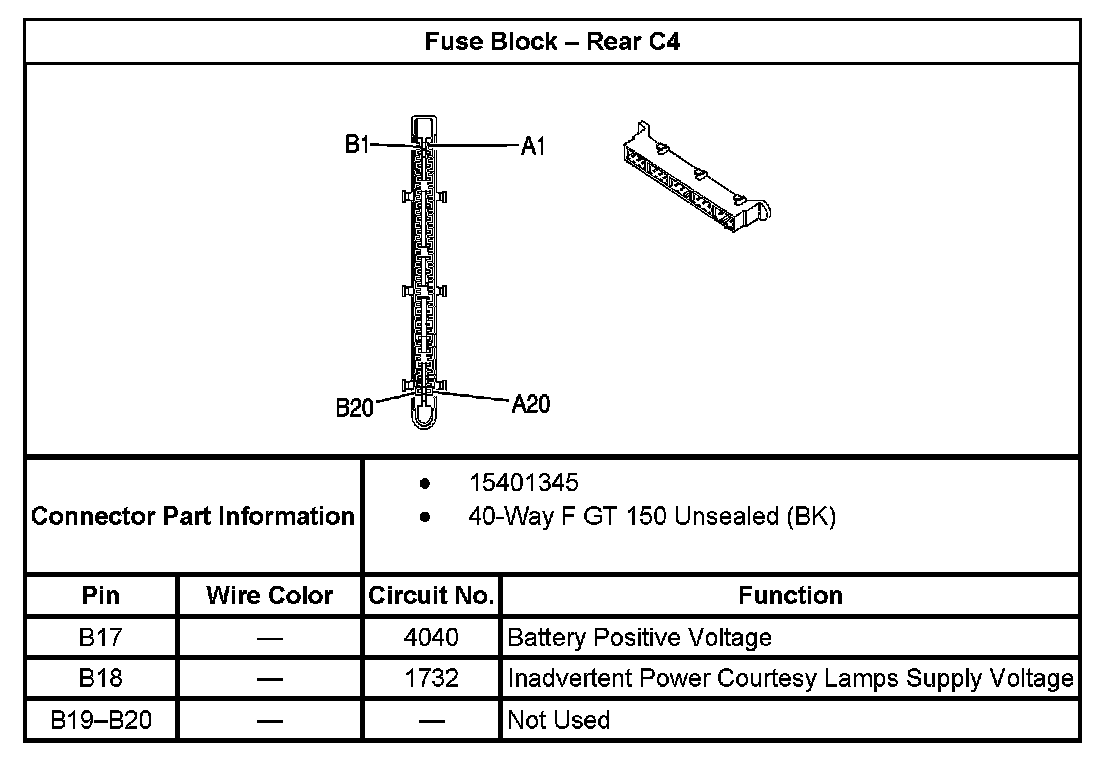

Fuse Block - Rear C4 (part 1):
Fuse Block - Rear C4 (part 2):
