C101
C101

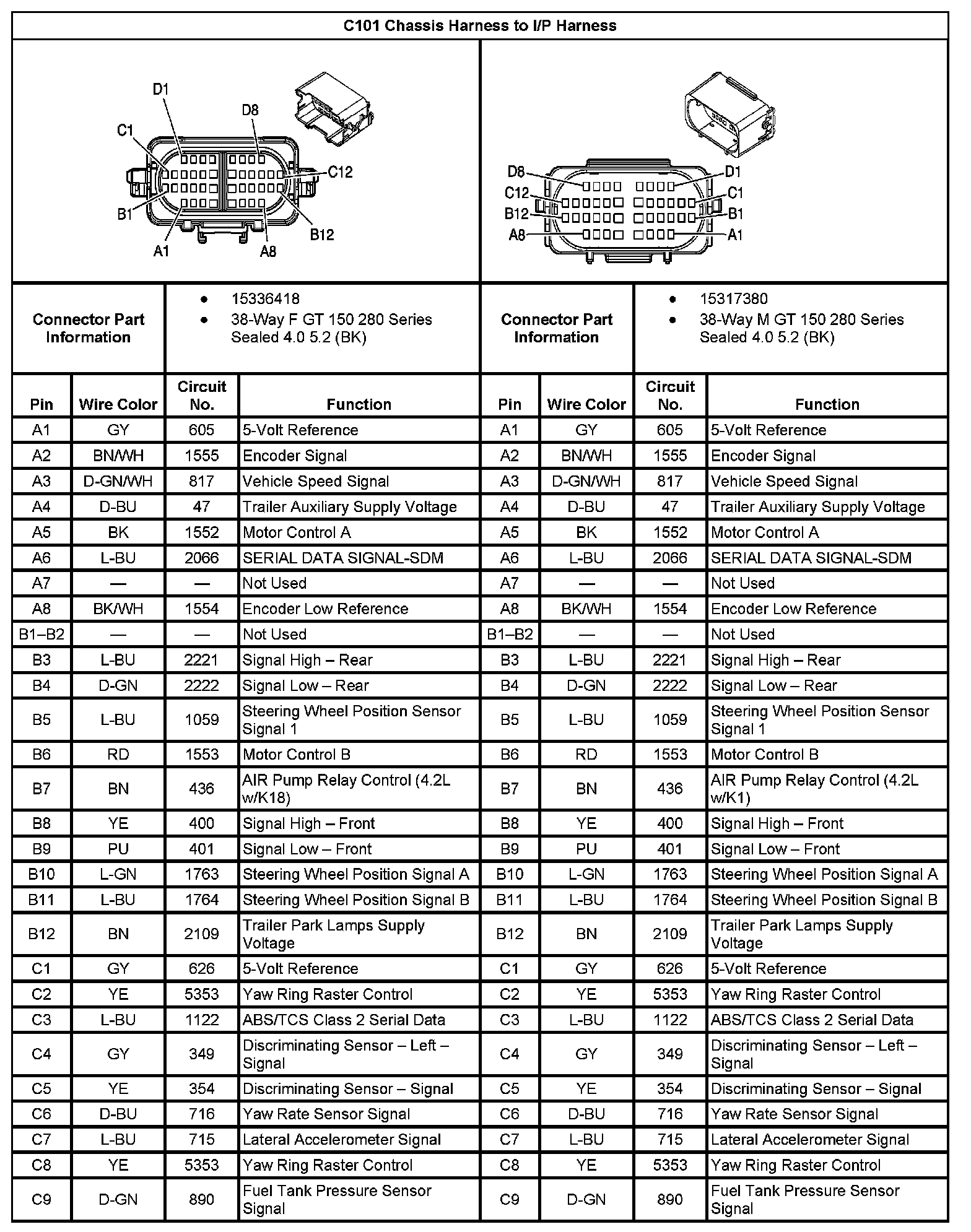

C101 Chassis Harness to I/P Harness (Part 1):
C101 Chassis Harness to I/P Harness (Part 2):
