Home
>>
Saab
>>
2006
>>
9-7X V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Inline Harness Connector End Views
>>
C900 - C999
>>
C906
C906

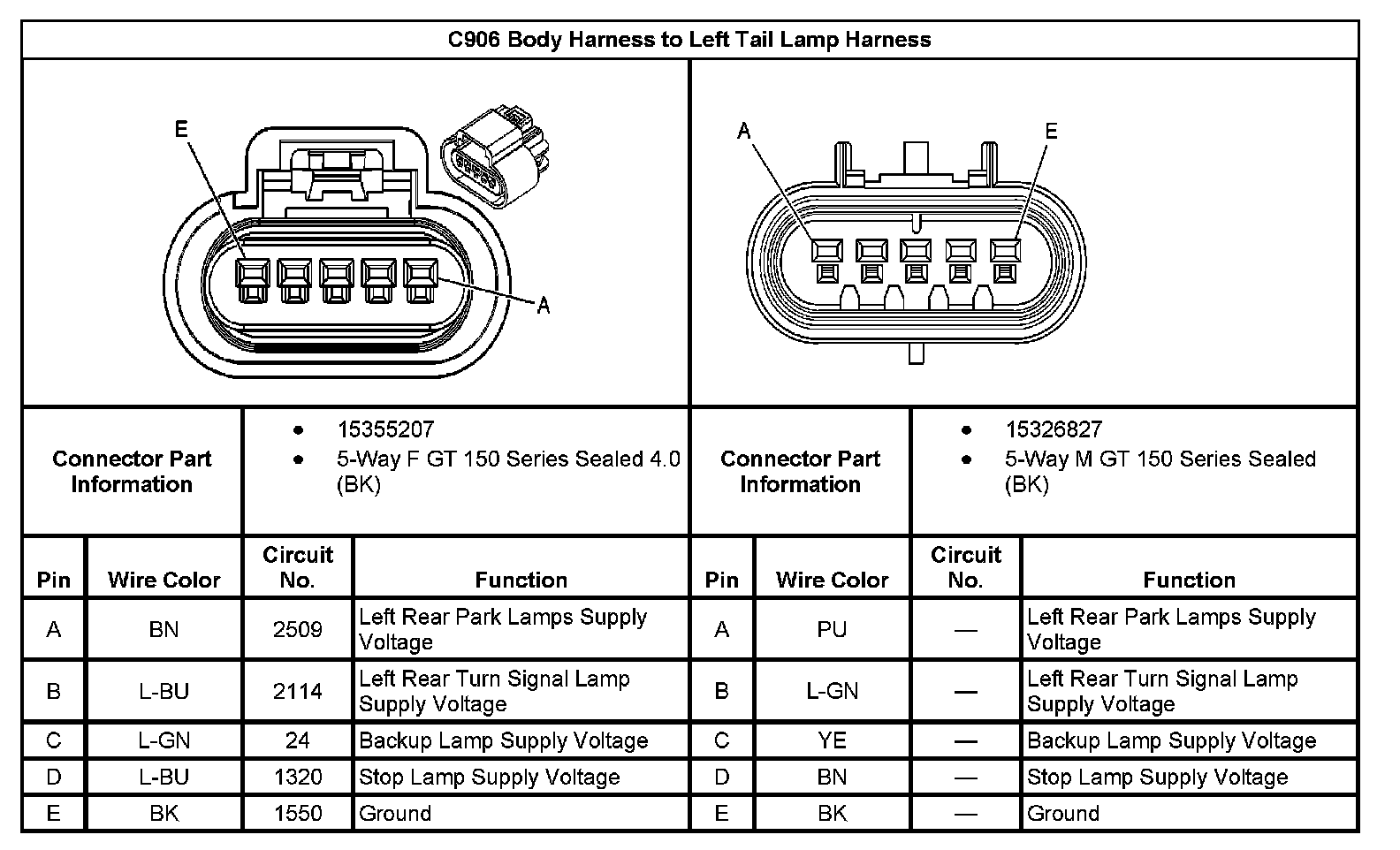

C906 Body Harness to Left Tail Lamp Harness:
