System Diagram

Automatic Transmission Controls Diagrams

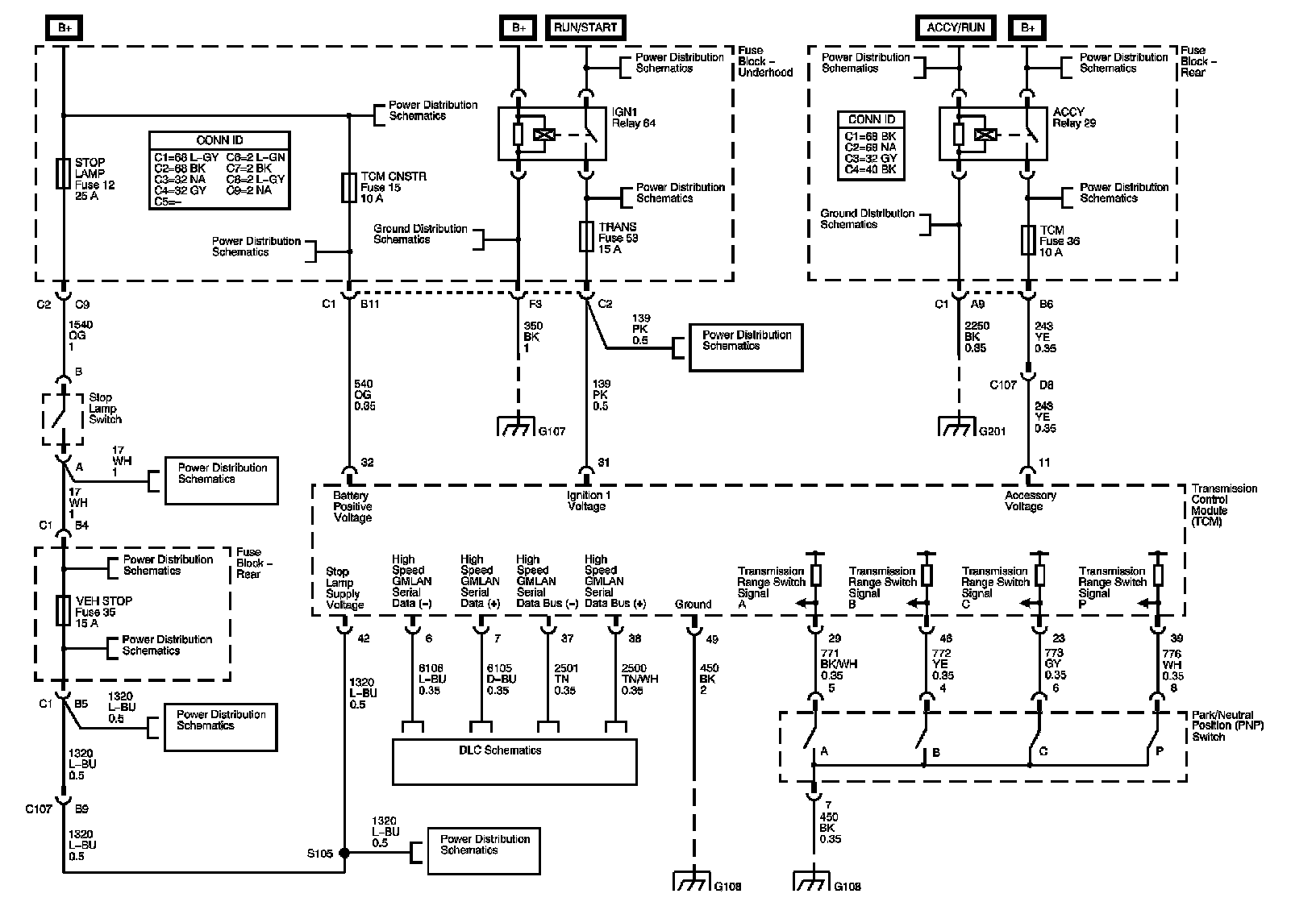

Automatic Transmission Controls Diagrams 1:

Module Power, Ground, Serial Data, and Stop Lamp Switch

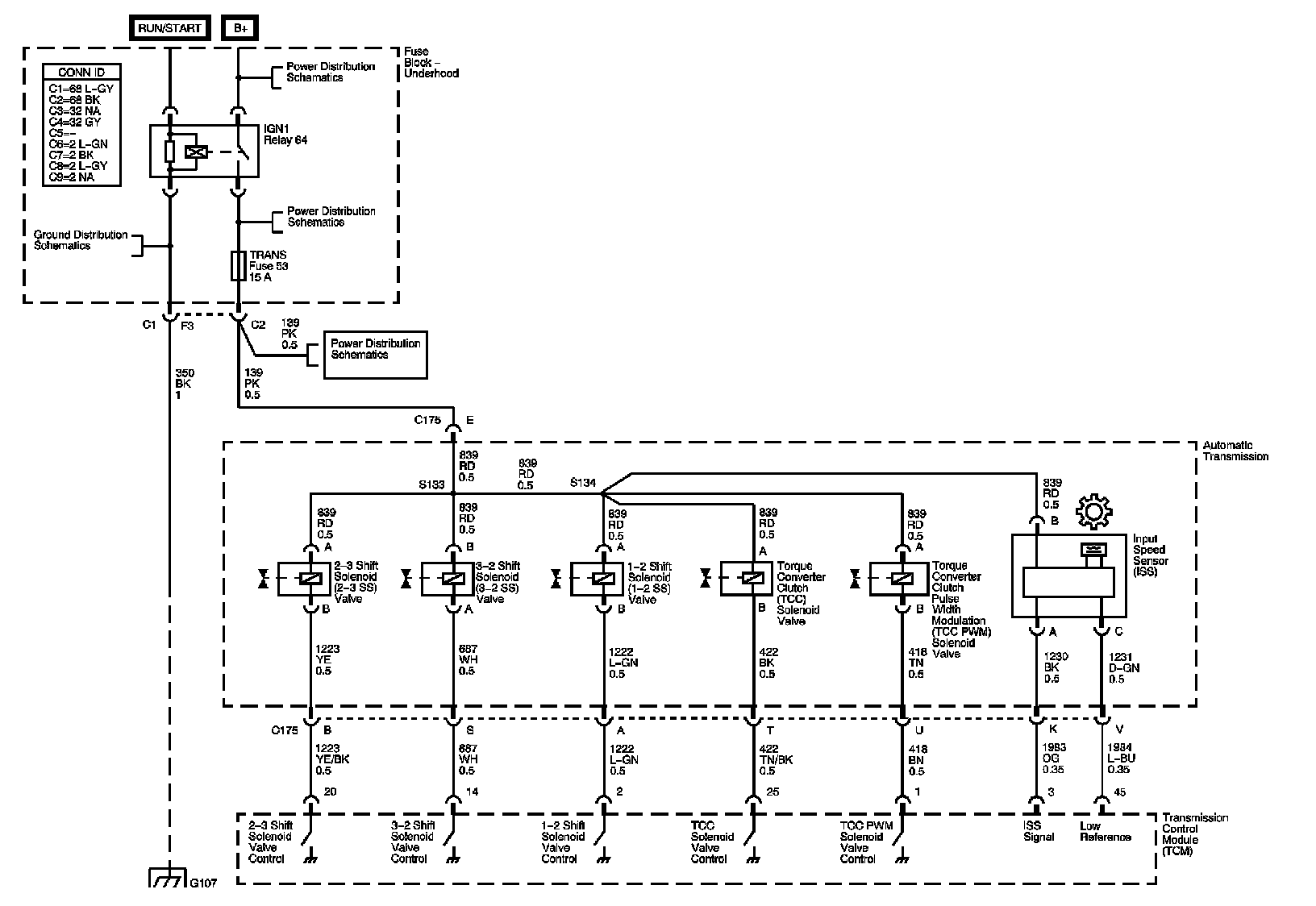

Automatic Transmission Controls Diagrams 2:

Transmission Controls

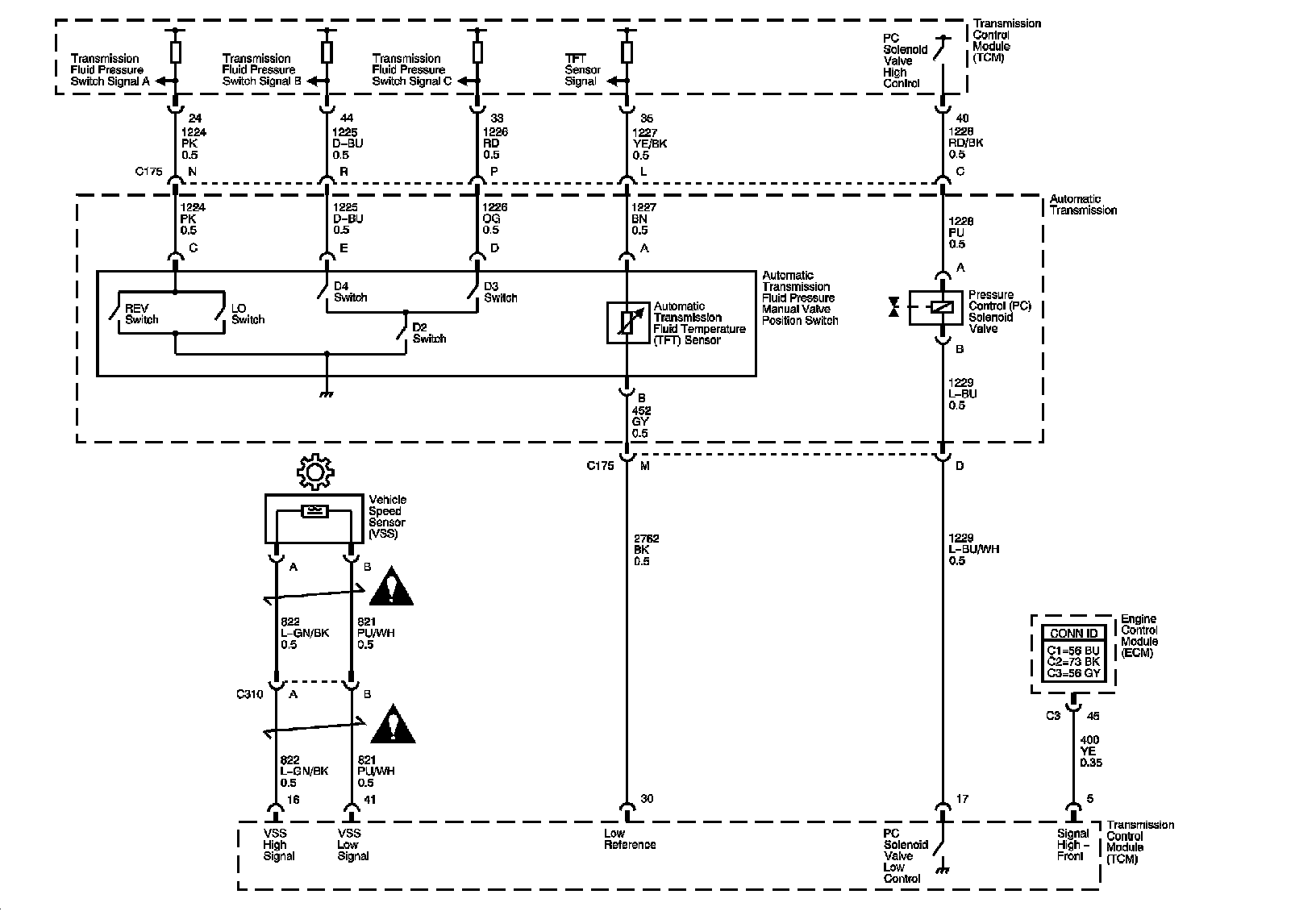

Automatic Transmission Controls Diagrams 3:

Pressure Controls, Temperature, and VSS

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
