Engine Controls Schematics 4

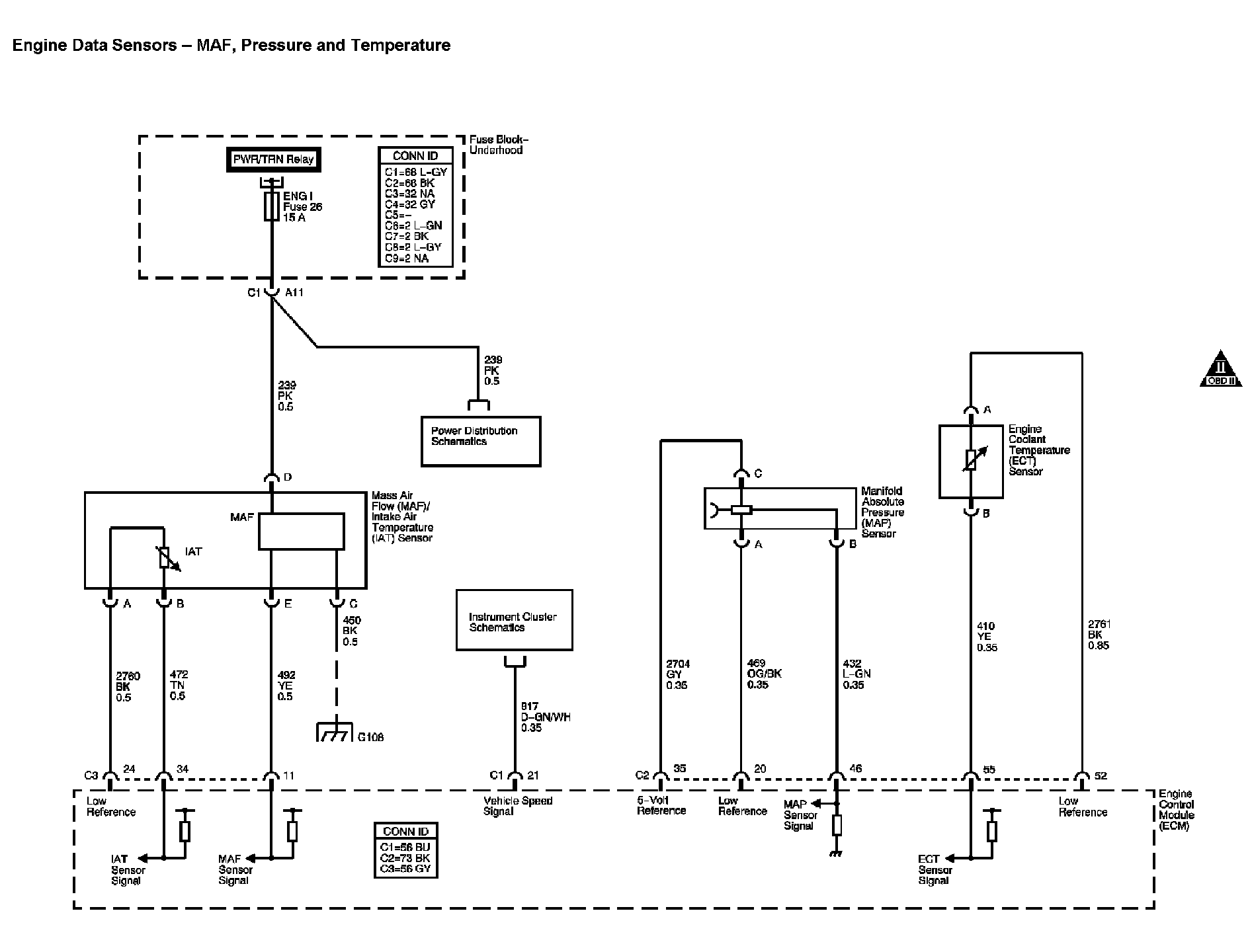

Engine Controls Diagram 4:

Next Diagram Engine Controls Schematics 5

Previous Diagram Engine Controls Schematics 3

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
