Auxiliary Power Outlet
>>
12V Socket, Luggage Compartment (480R)
12V Socket, Luggage Compartment (480R)

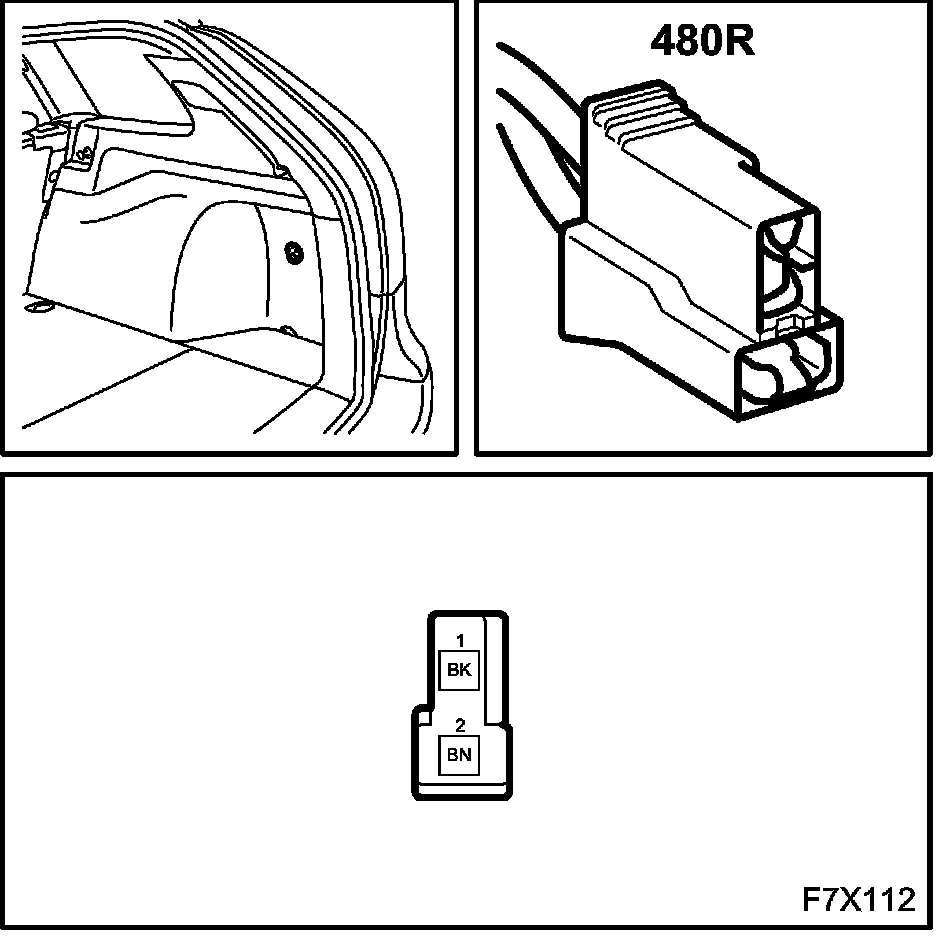

12 V Socket, Luggage Compartment (480R)
Location: To the right in the luggage compartment.
