Canister Purge Control Valve
Canister Purge Control Valve

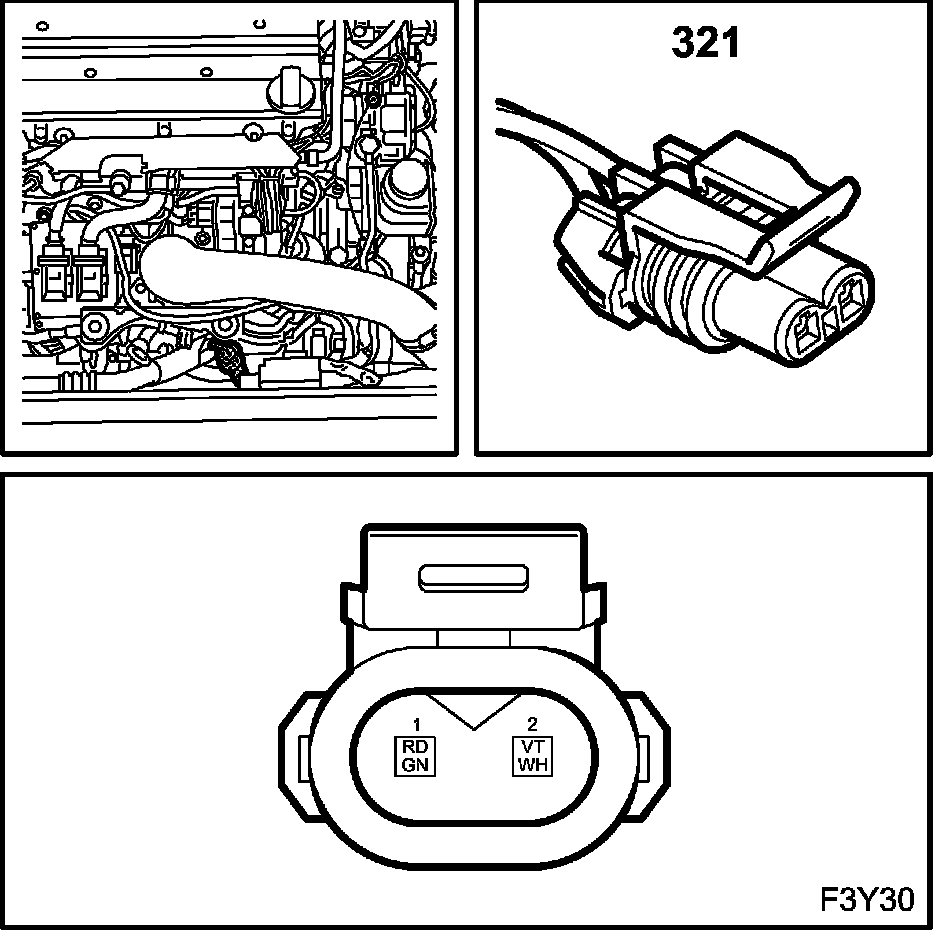

EVAP Canister Purge Valve (321)
Location: On hose to mass air flow sensor.
