Fuel Pump
>>
Fuel Pump Relay

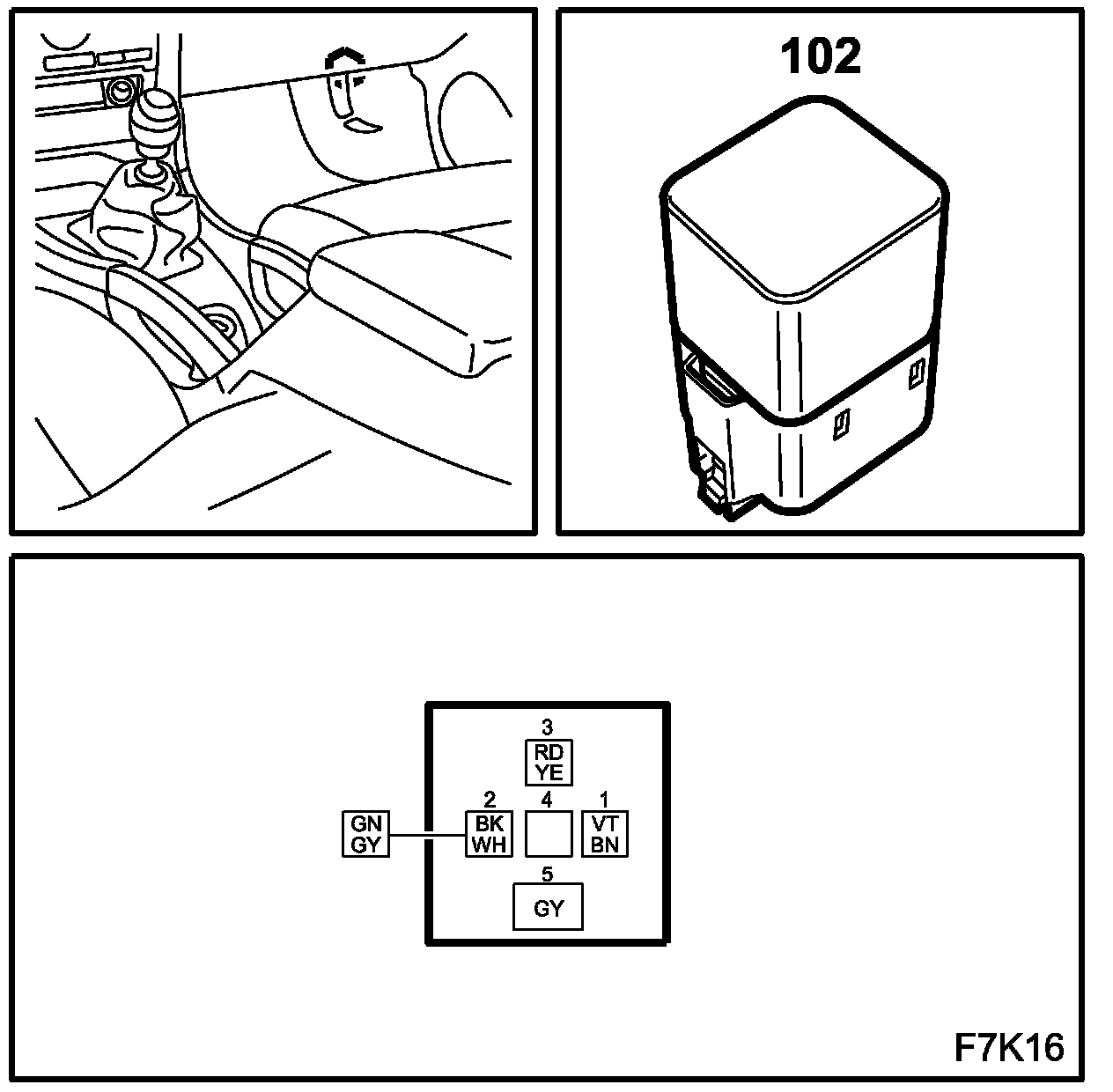

Fuel Pump Relay
Location:
below the right A-pillar
Fuel Pump Relay (102):
