Control Assembly, HVAC
Location:
in the center of the dashboard

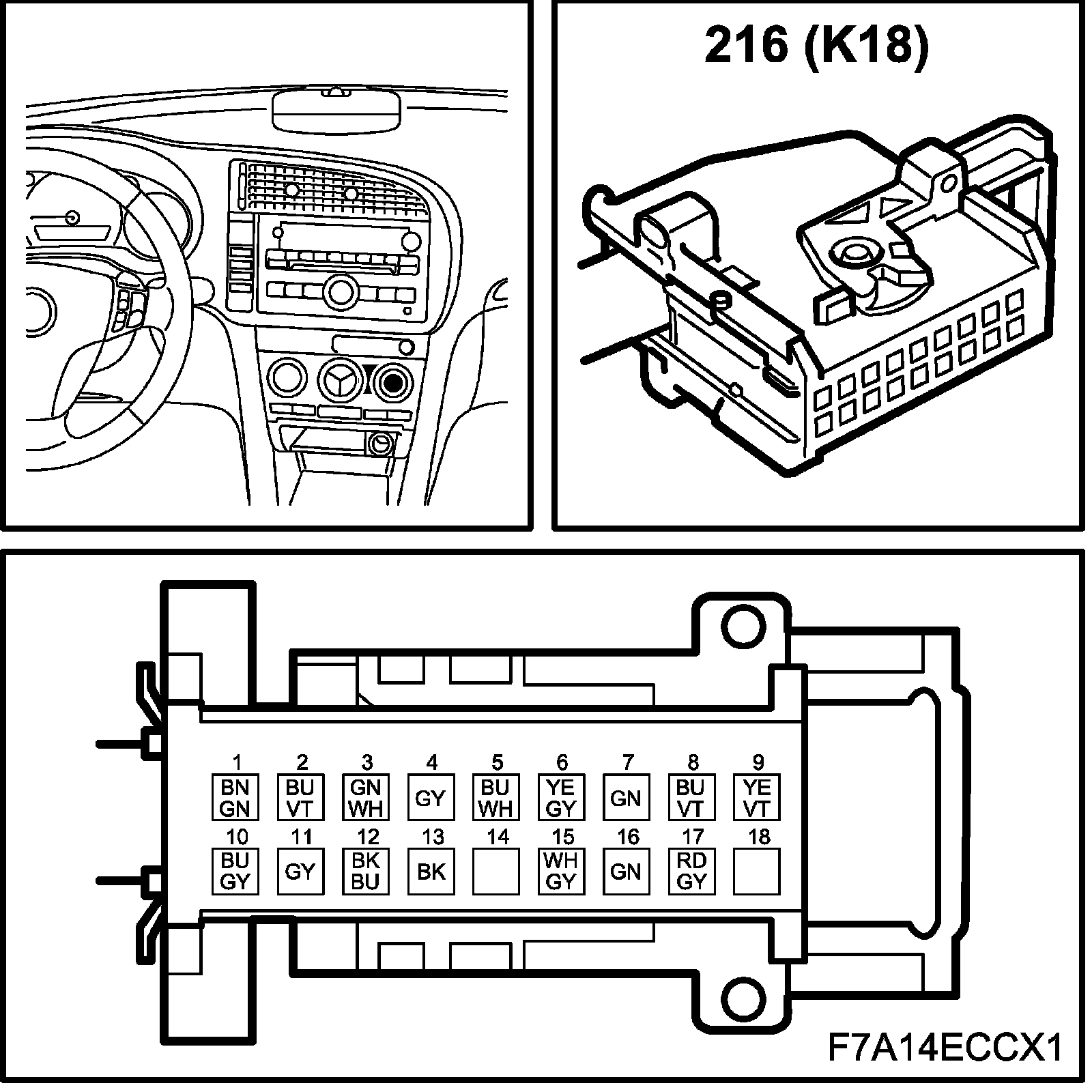

K18
Automatic Climate Control (216):

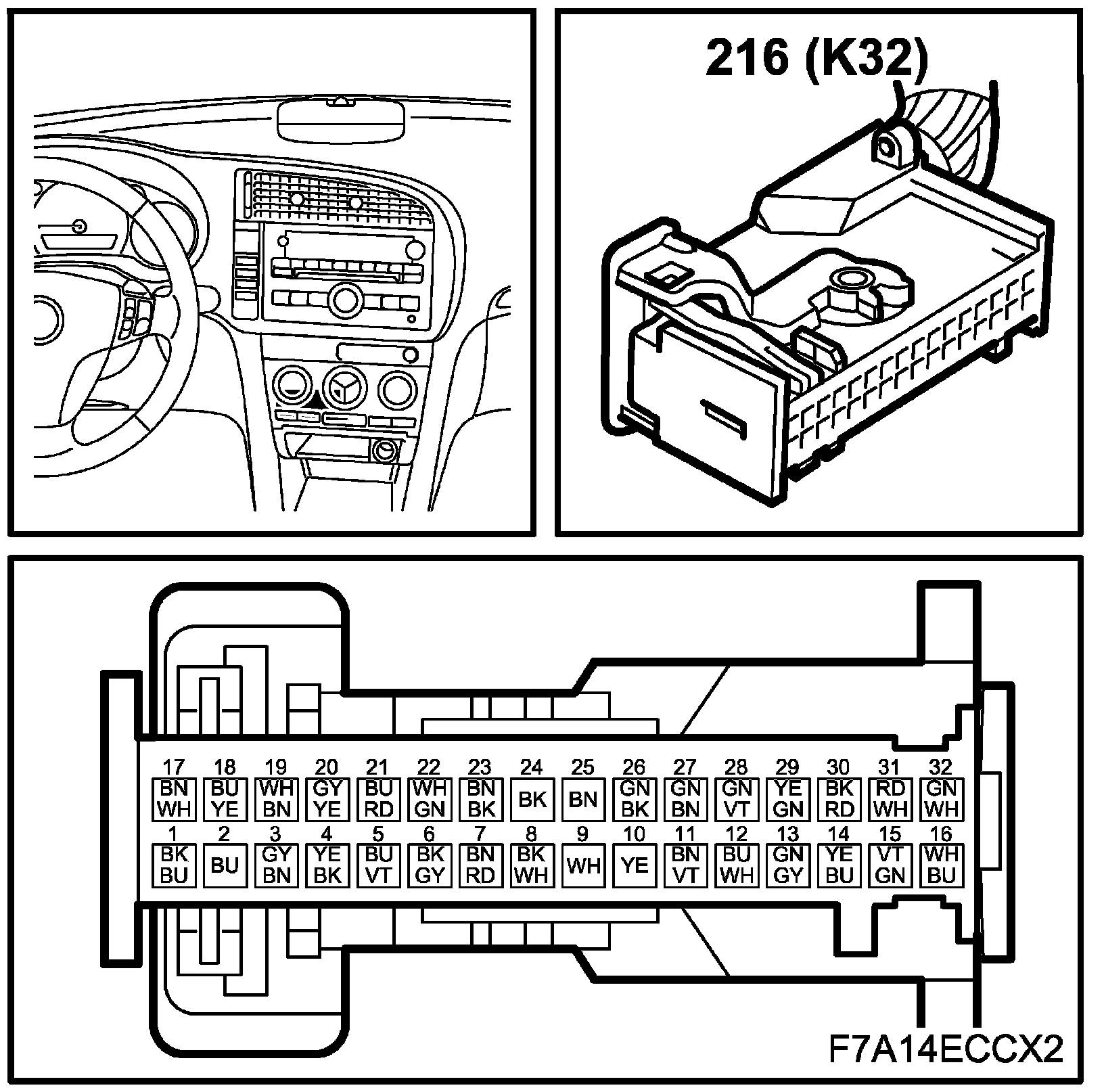

K32
Automatic Climate Control (216):
