Oil Pressure Sender
Oil Pressure Sender

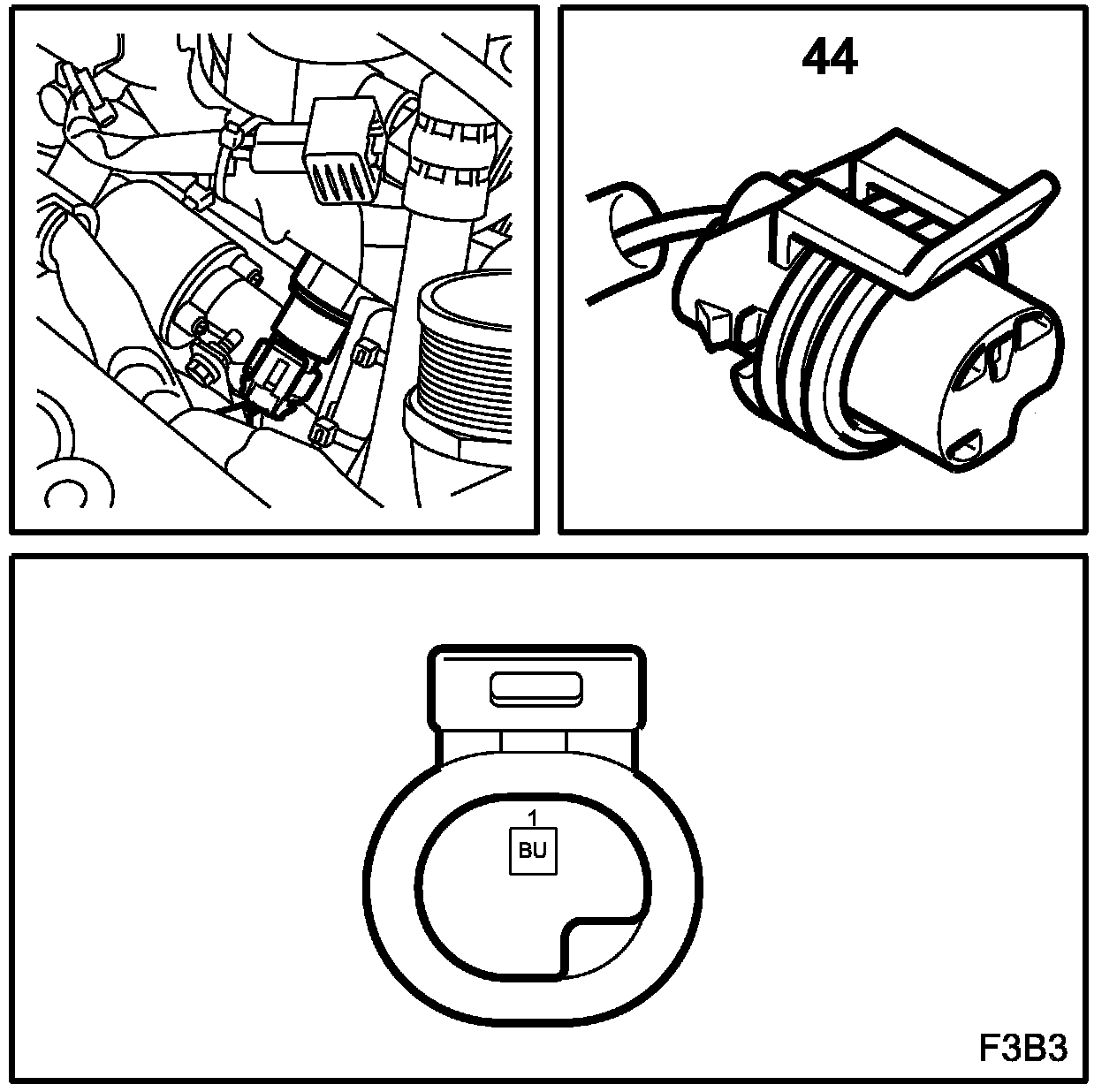

Location:
by the front edge of the oil filter.
Engine Oil Pressure Switch (44):
