Seat Occupant Sensor
>>

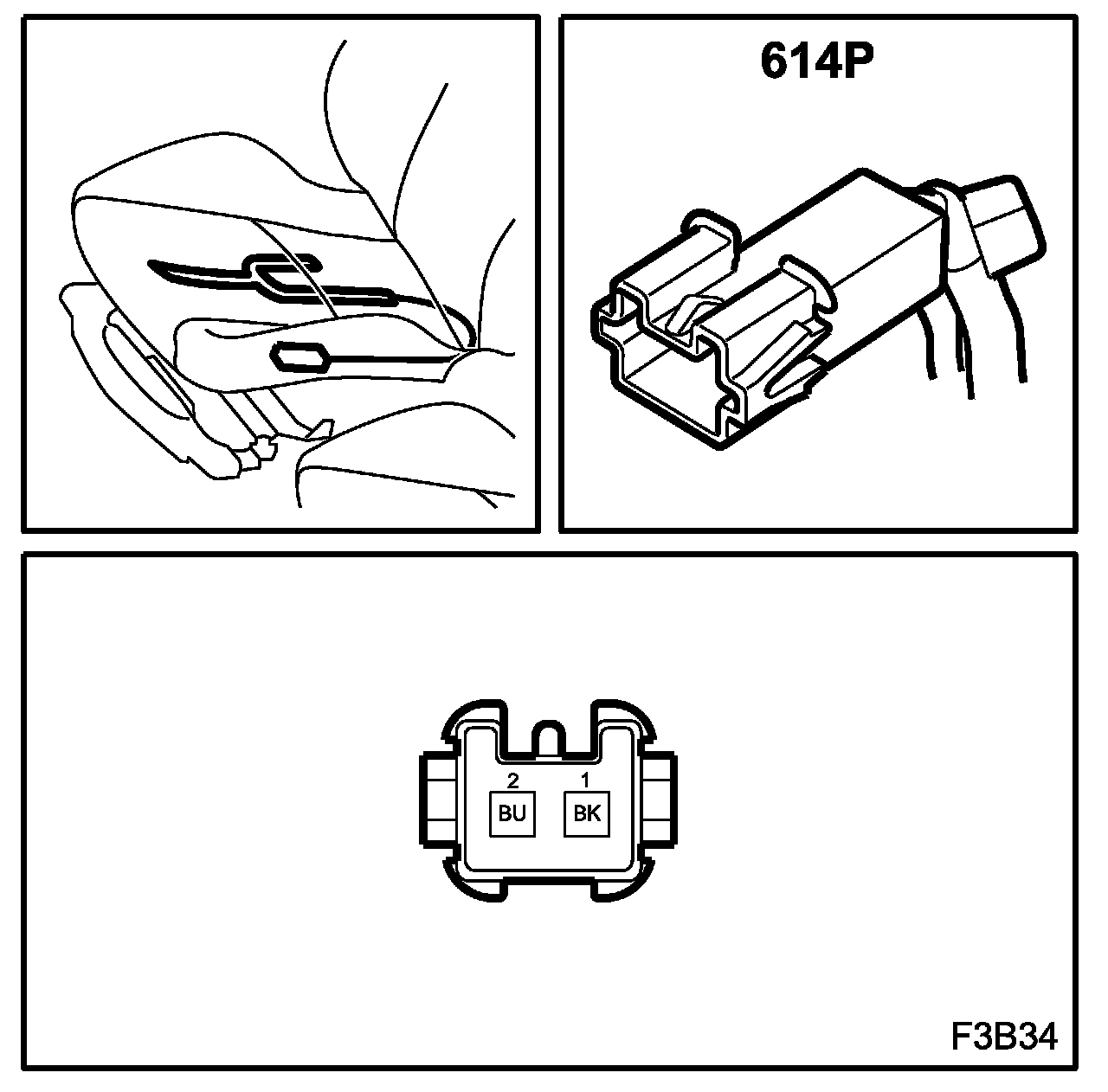

Occupied Seat Cushion Sensor, Passenger, Front (614P)
Occupied Seat Cushion Sensor, Passenger, Front (614P)
Location:
in the passenger seat cushion
Occupied seat cushion sensor, passenger, front (614P):
