Connector H24-2

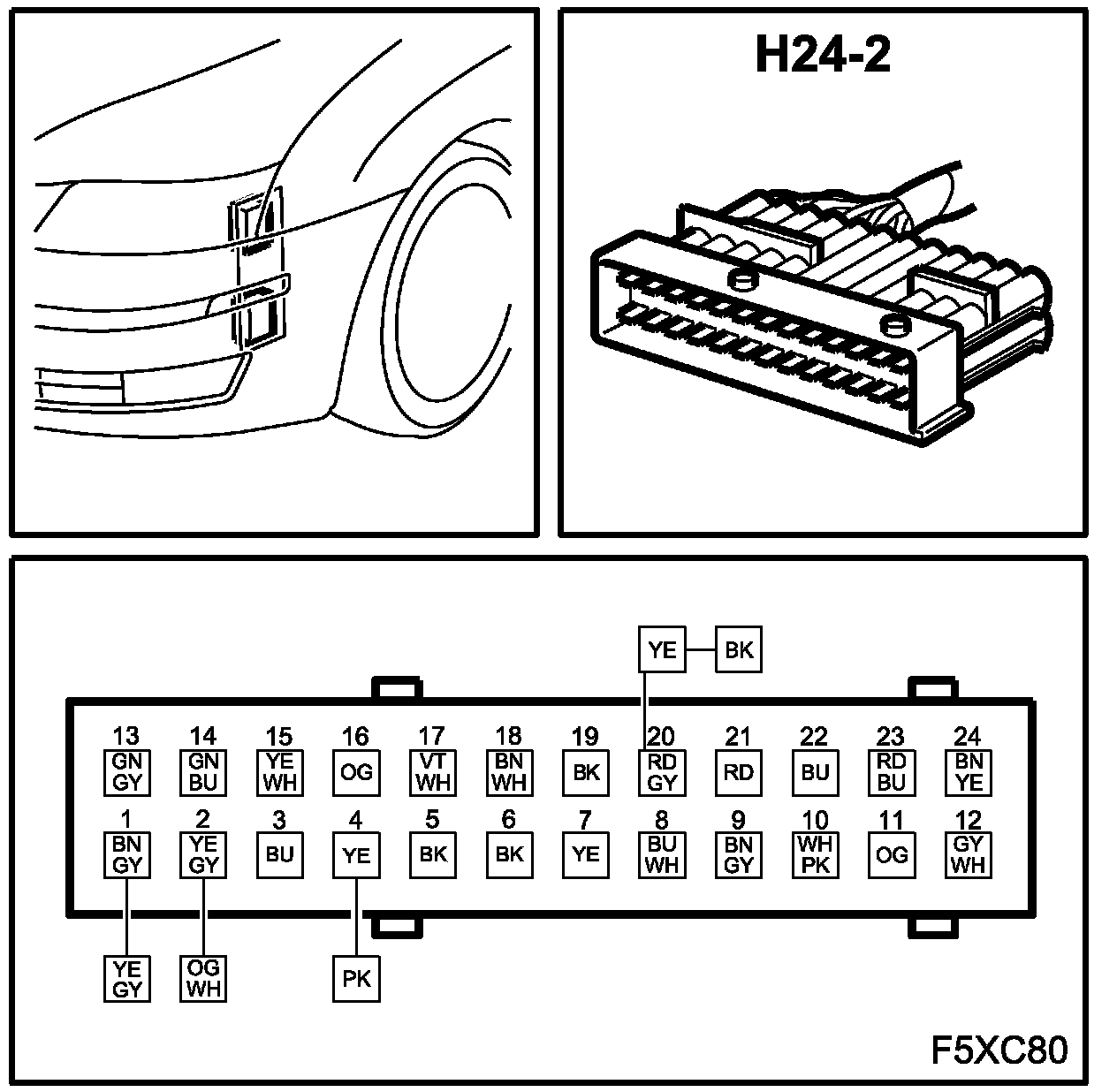

Connector H24-2
Location:
Grey connector in front of battery on side of left structural member.
Connector H24-2 (T8):
