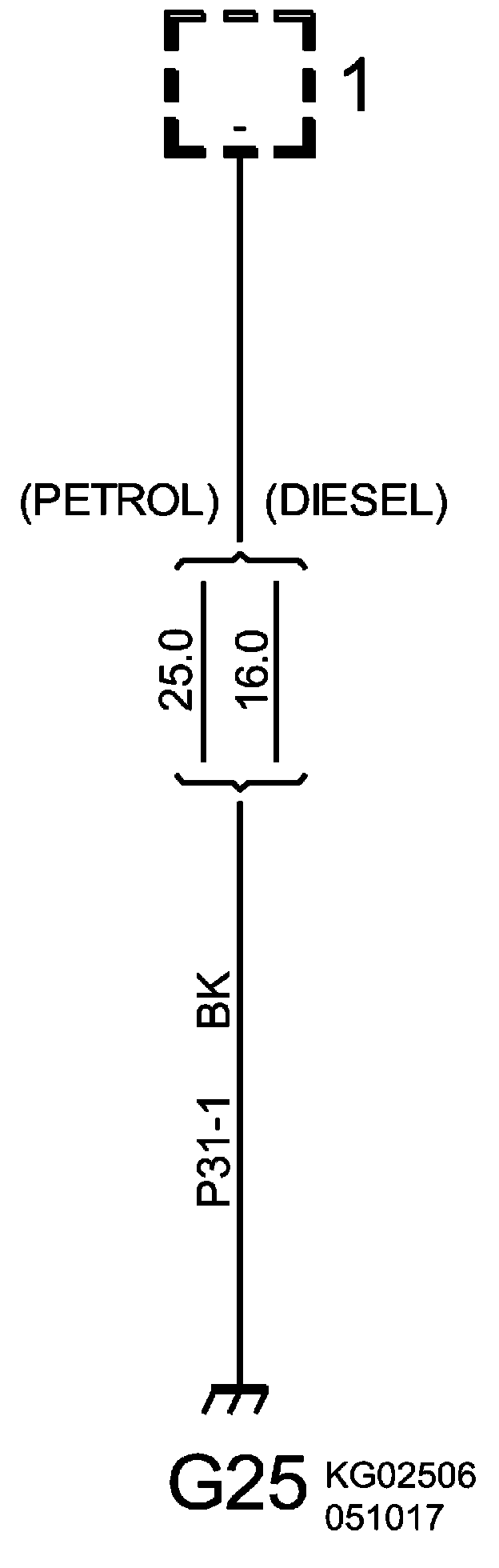

Grounding Point G25

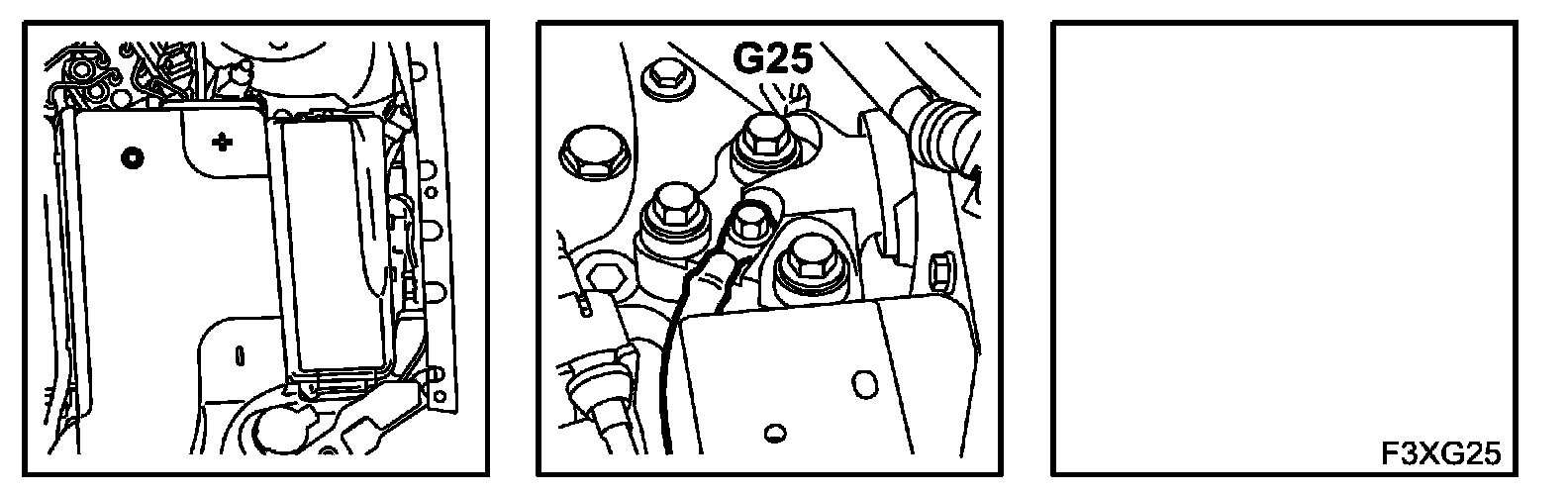

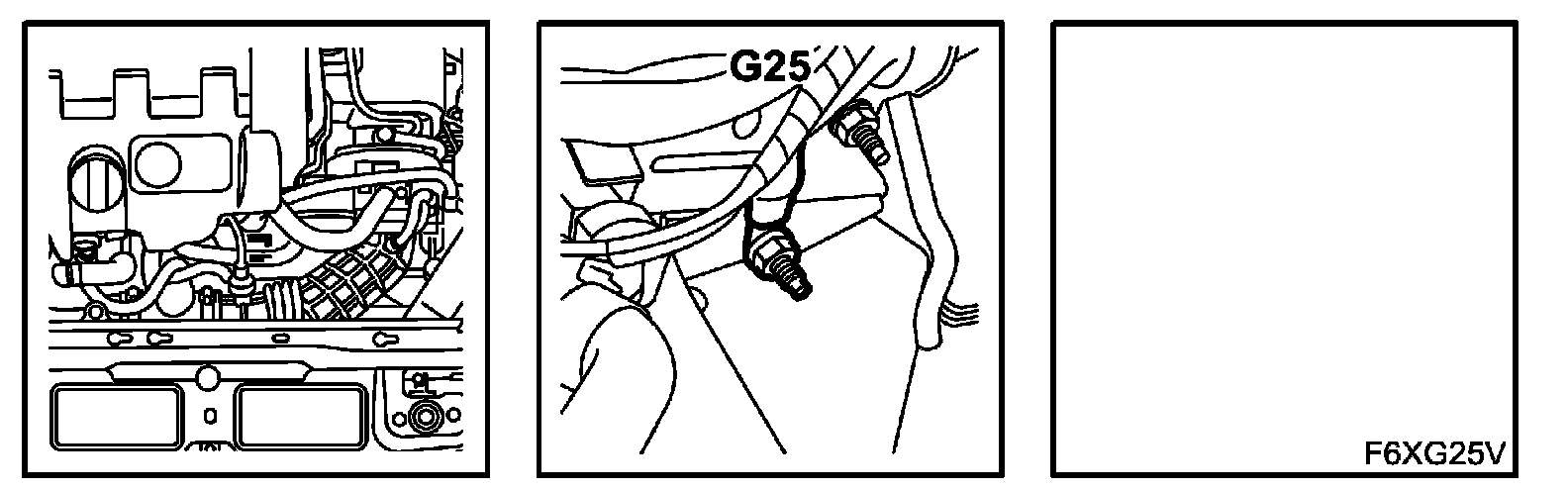

Location:
B284 AUT: On a bracket on the front of the gearbox
Other: On left engine mounting

Grounding Point G25:




Grounding Point G25:

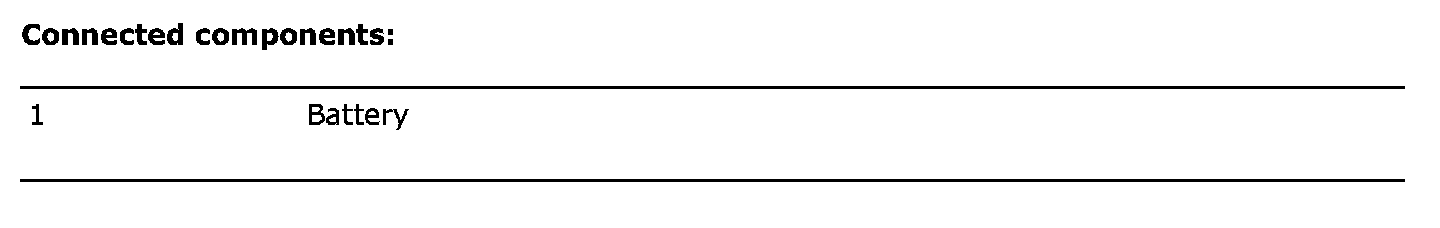

Connected Components:
