Grounding Point G3
>>
5D
5D

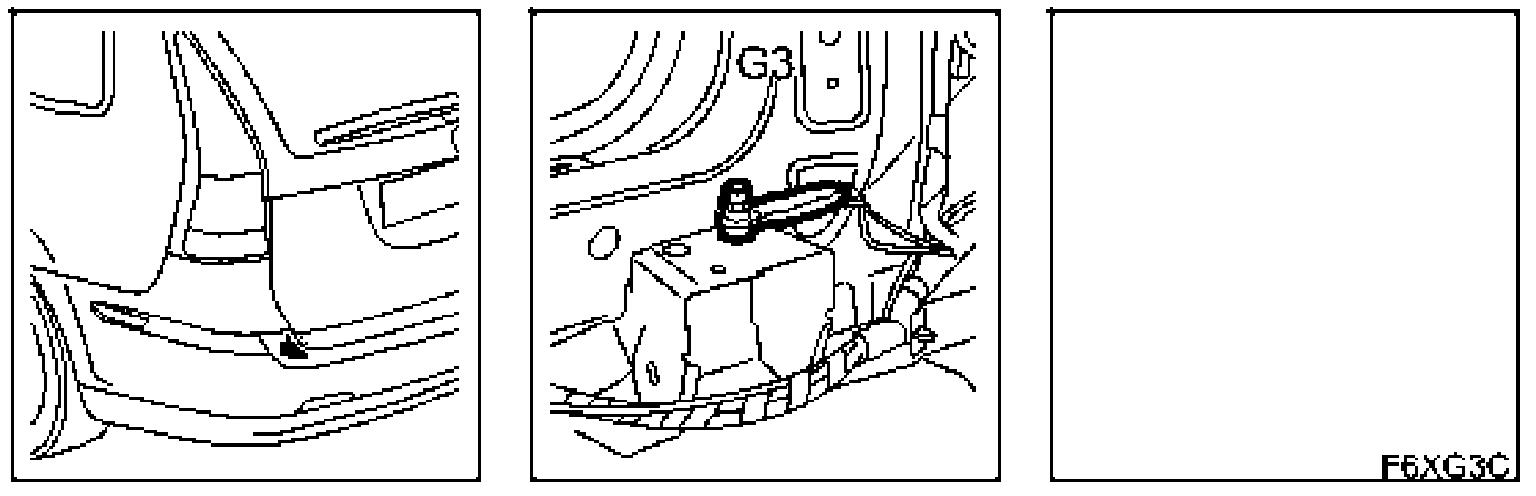

Location:
In luggage compartment on rear left luggage compartment floor support.
The grounding point is connected with grounding point G29 via the boot electrical center 701.

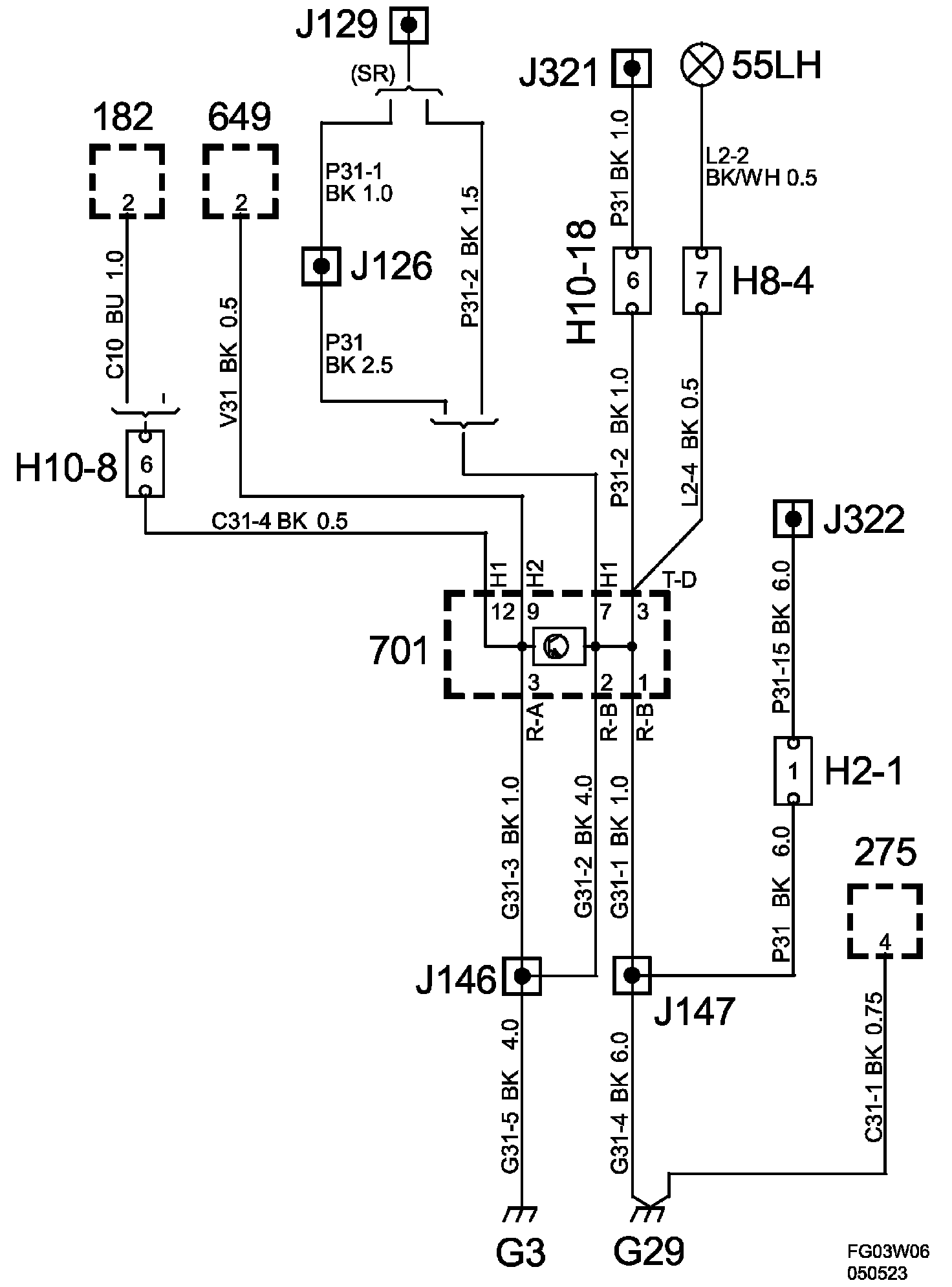

Grounding Point G3:

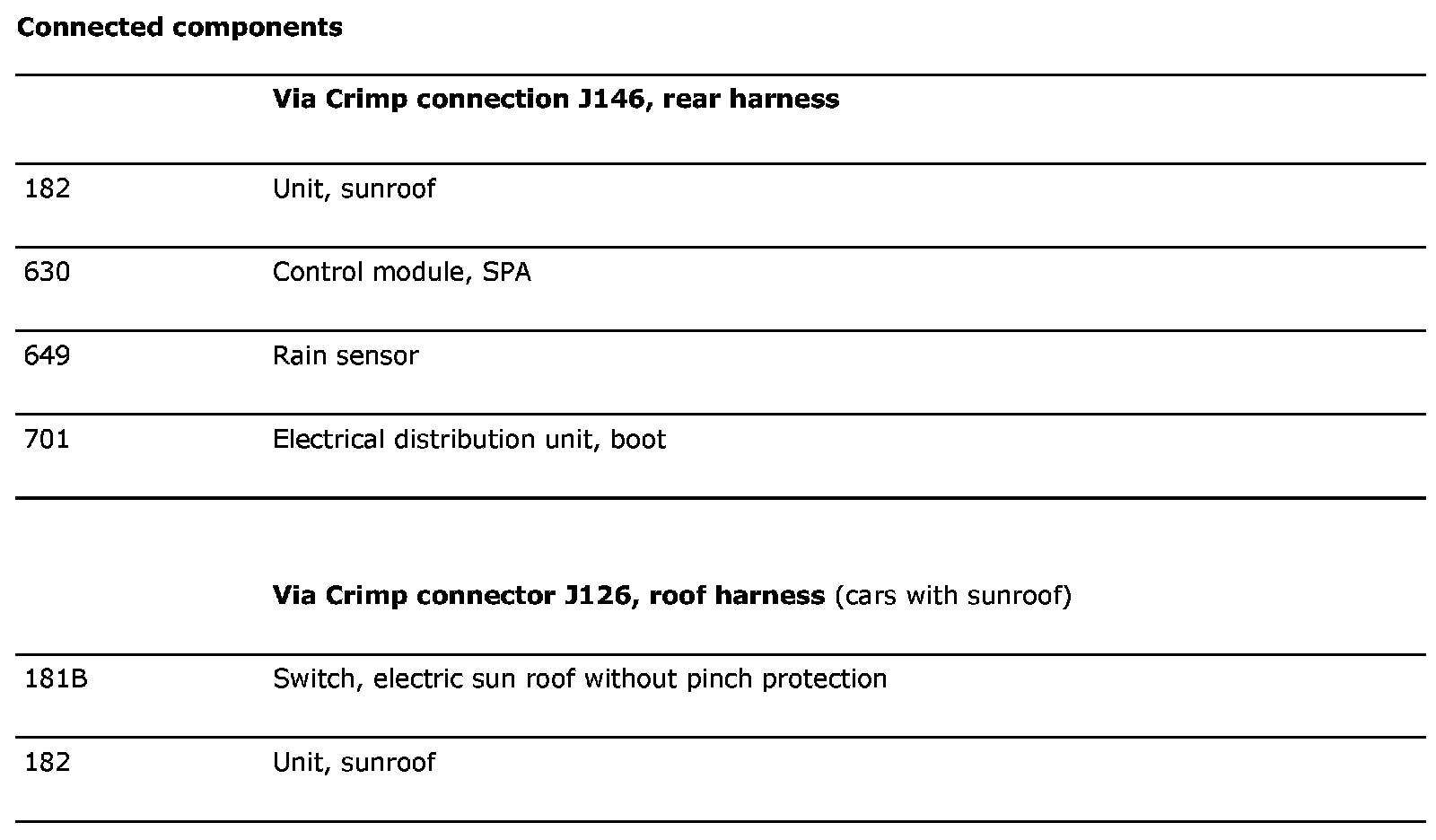

Connected Components (Part 1):

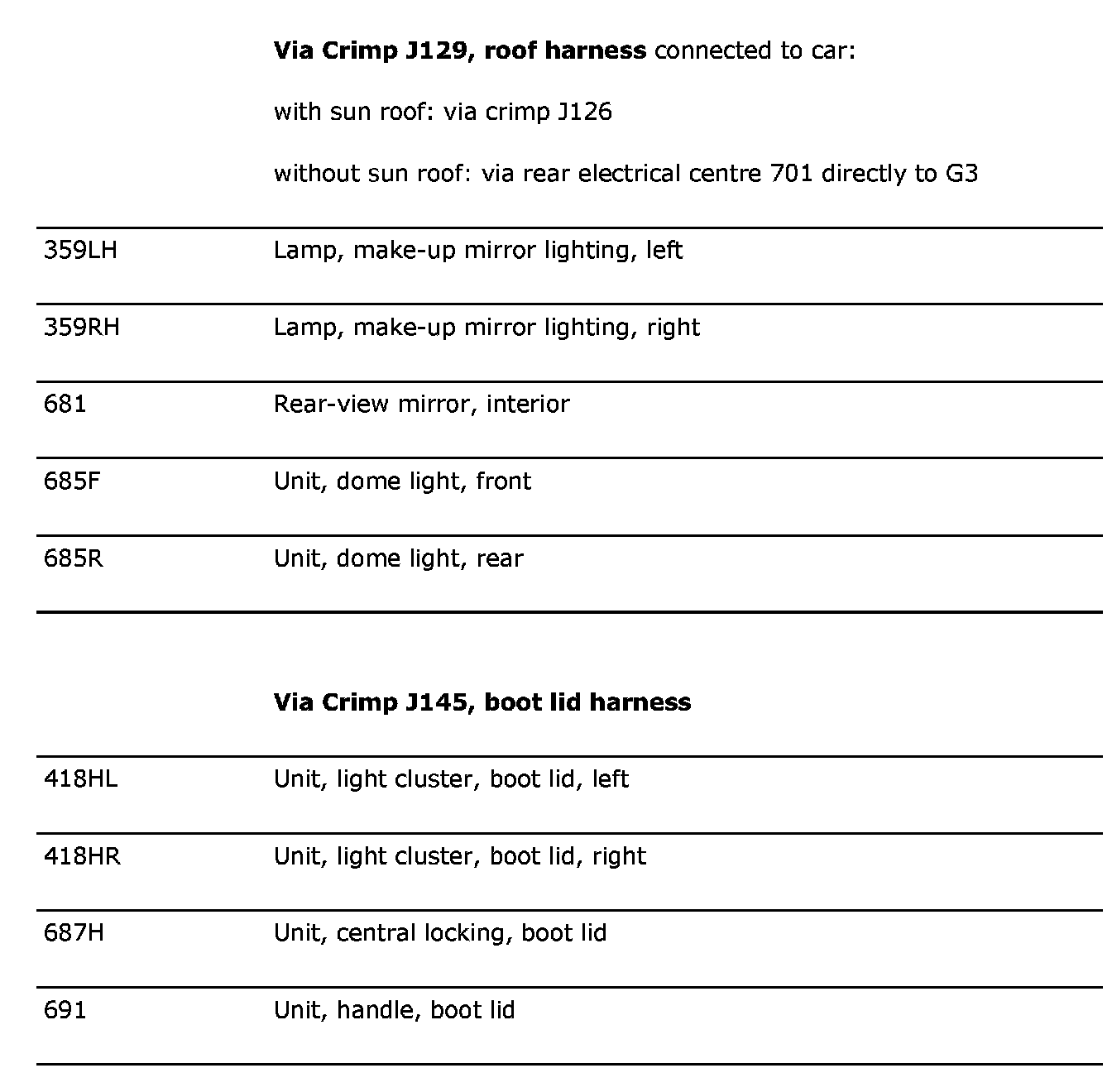

Connected Components (Part 2):
