Home >> Saab >> 2008 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Grounds >> Grounding Point G3 >> CV

CV

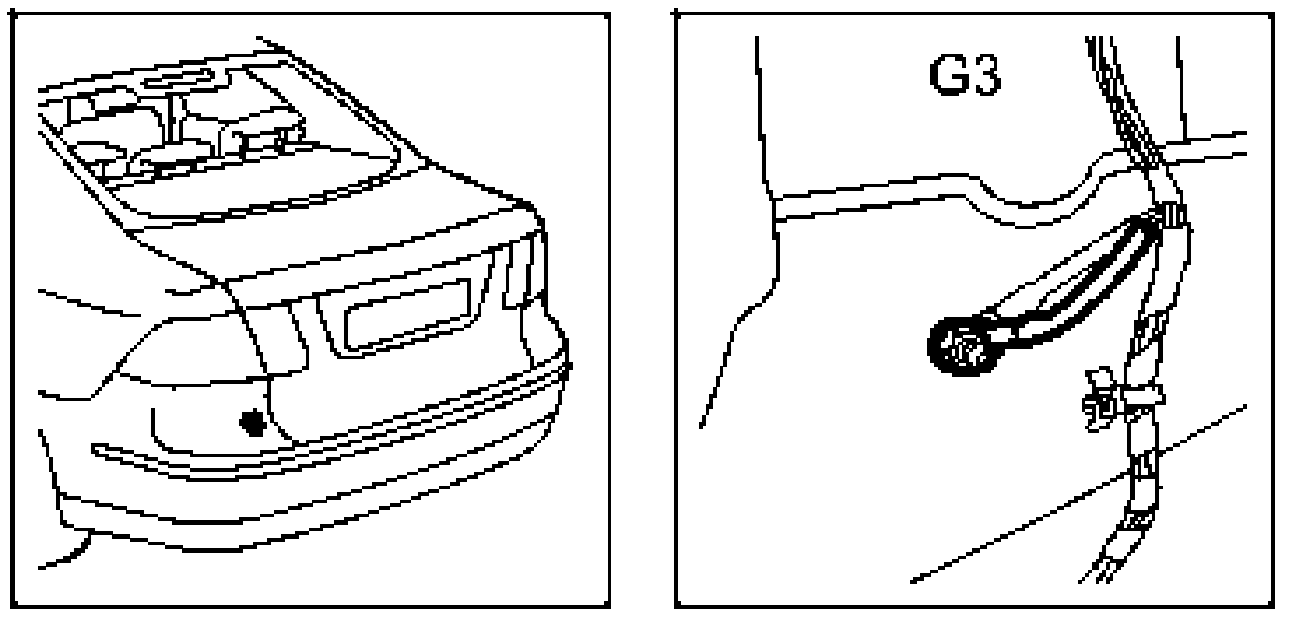

Location: In luggage compartment below left light cluster

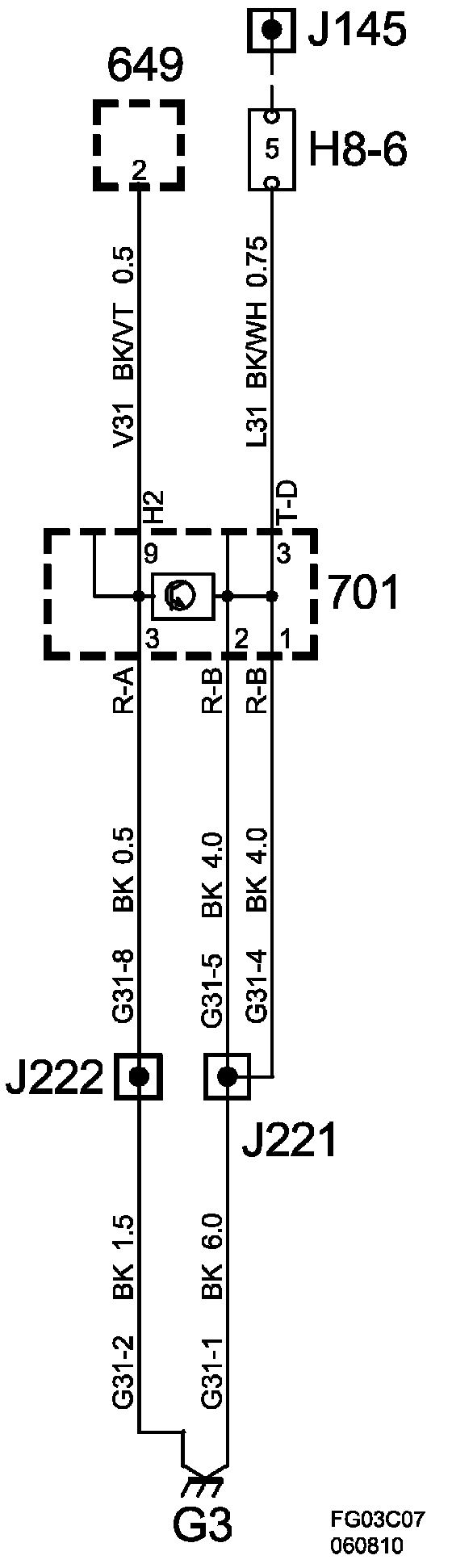

Grounding Point G3:

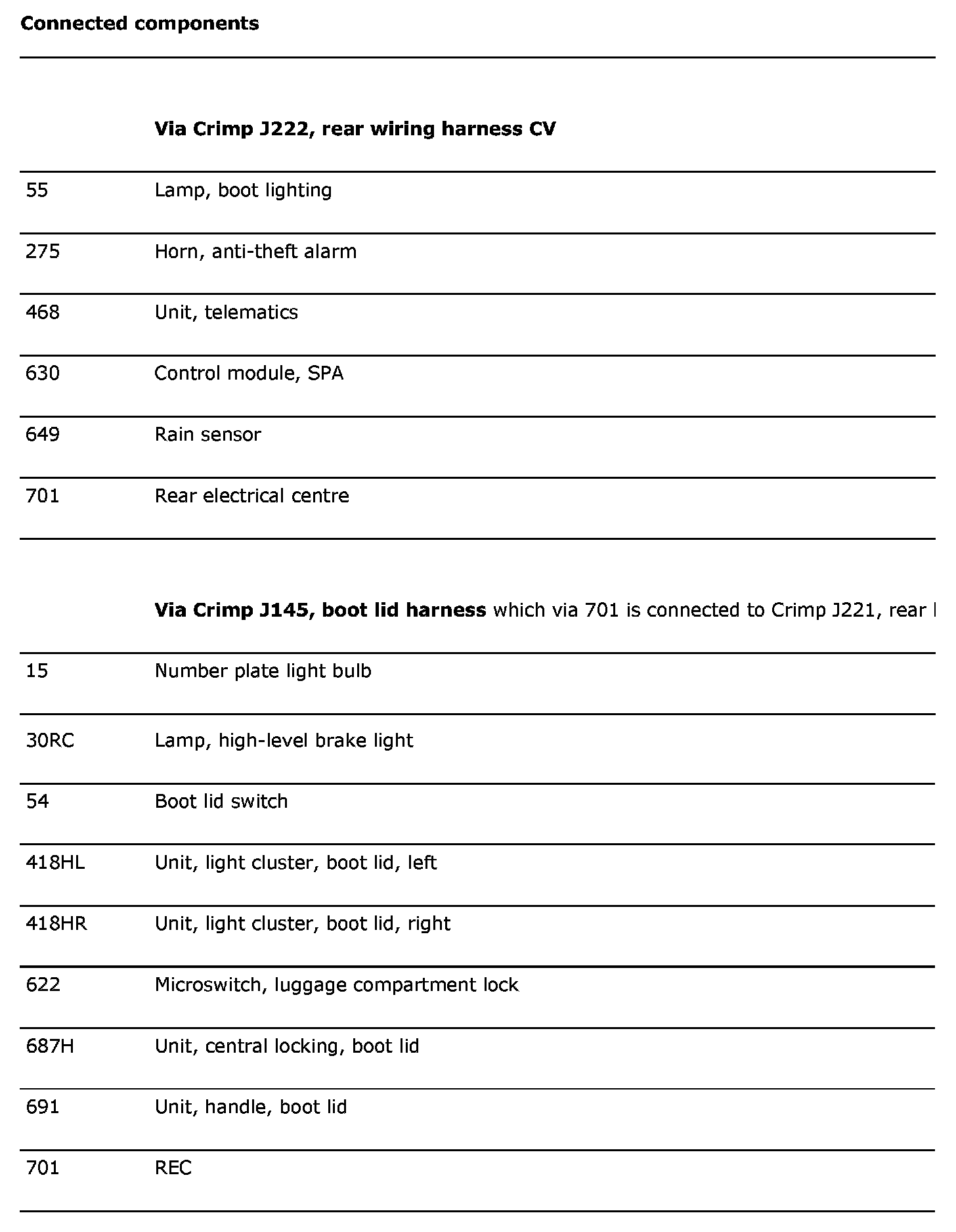

Connected Components:
