Grounding Point G31

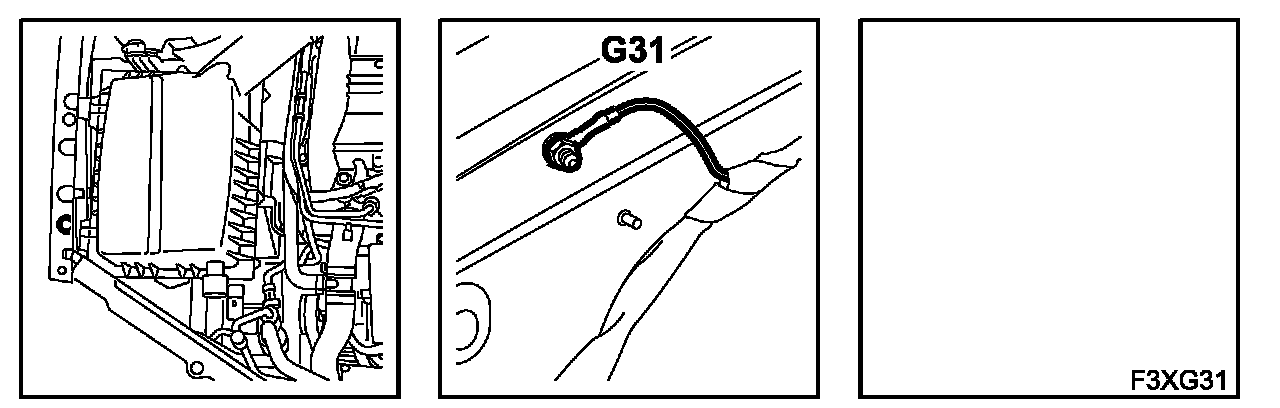

Location: In engine bay on side panel above right wheel housing
The grounding point is connected to grounding point G30A via crimp J9/J12, the underhood electric center
Grounding Point G31:

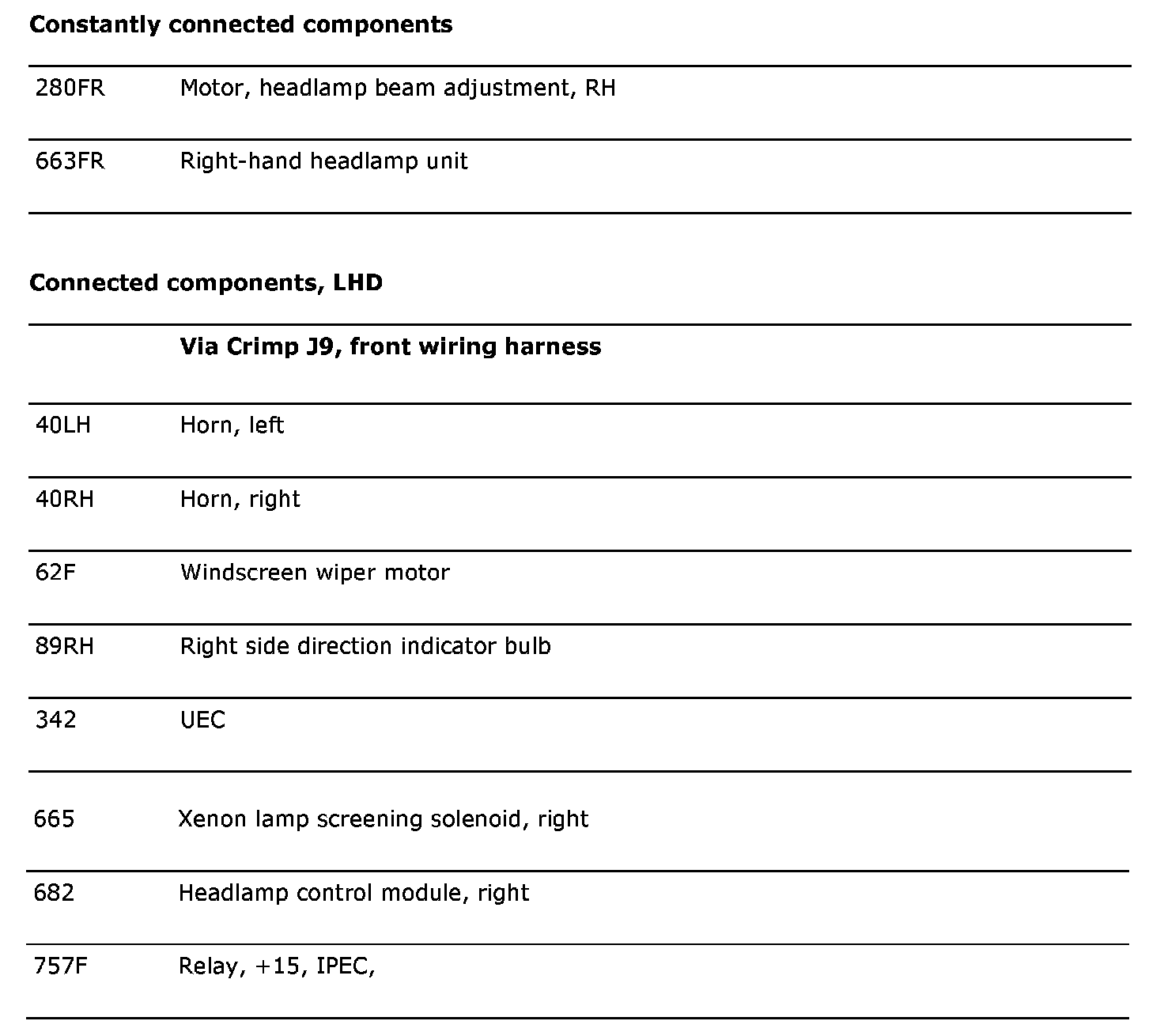

Connected Components:
Location: In engine bay on side panel above right wheel housing
The grounding point is connected to grounding point G30A via crimp J9/J12, the underhood electric center
