Grounding Point G34P
Grounding Point G34P

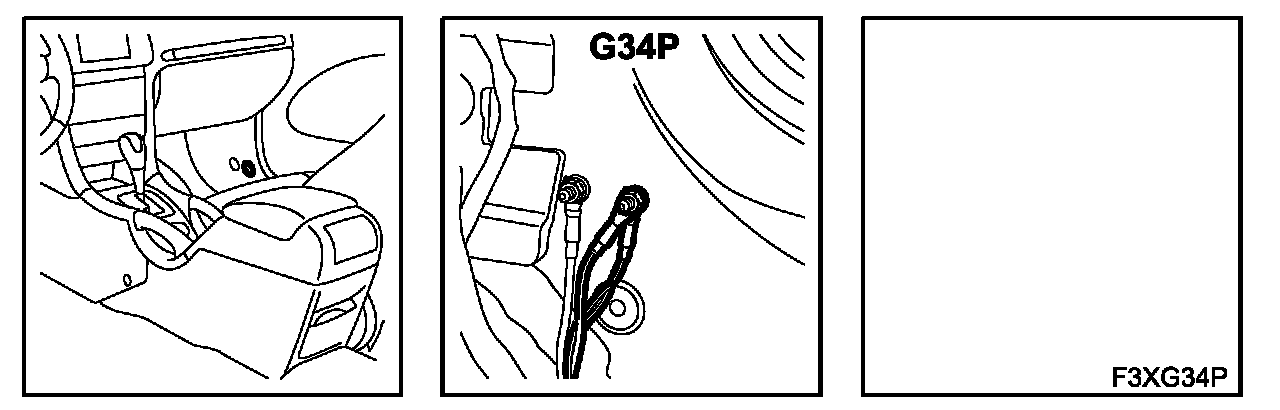

Location:
By the floor below the right A-pillar (black tape)

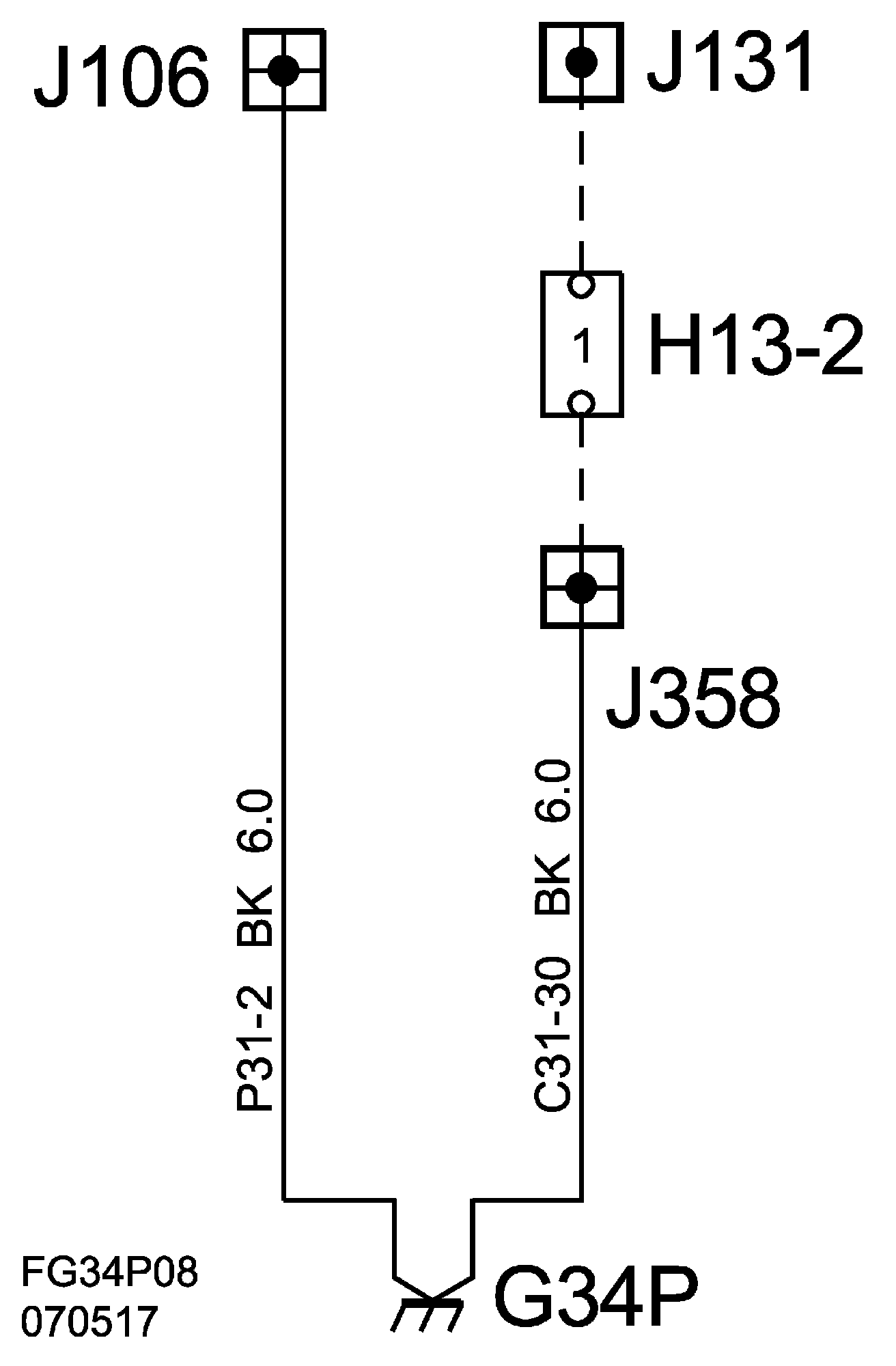

Grounding Point G34P:

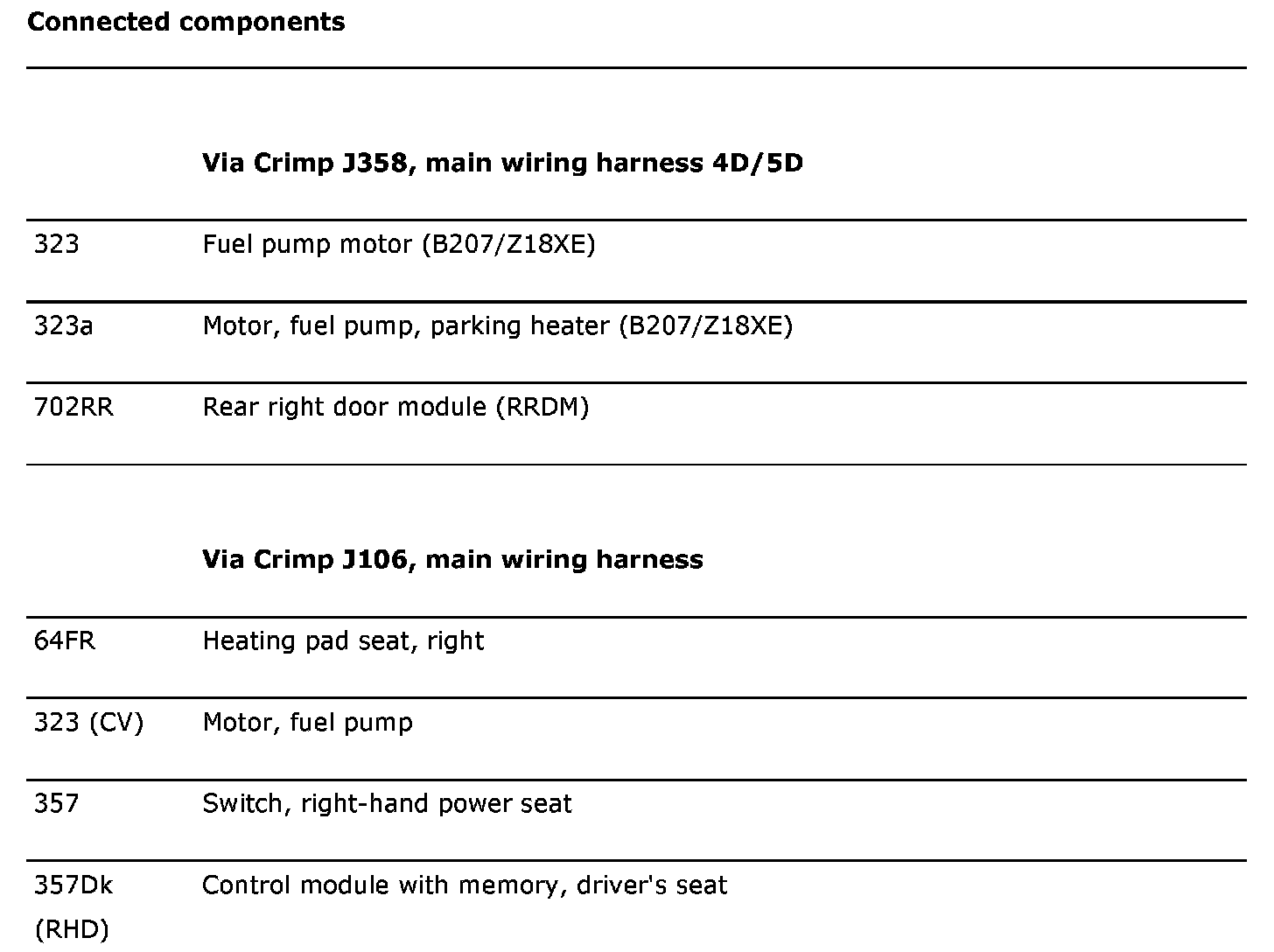

Connected Components (Part 1):
Connected Components (Part 2):
