Grounding Point G34S

Location: At the floor below the right A-pillar (BK/WH cable)

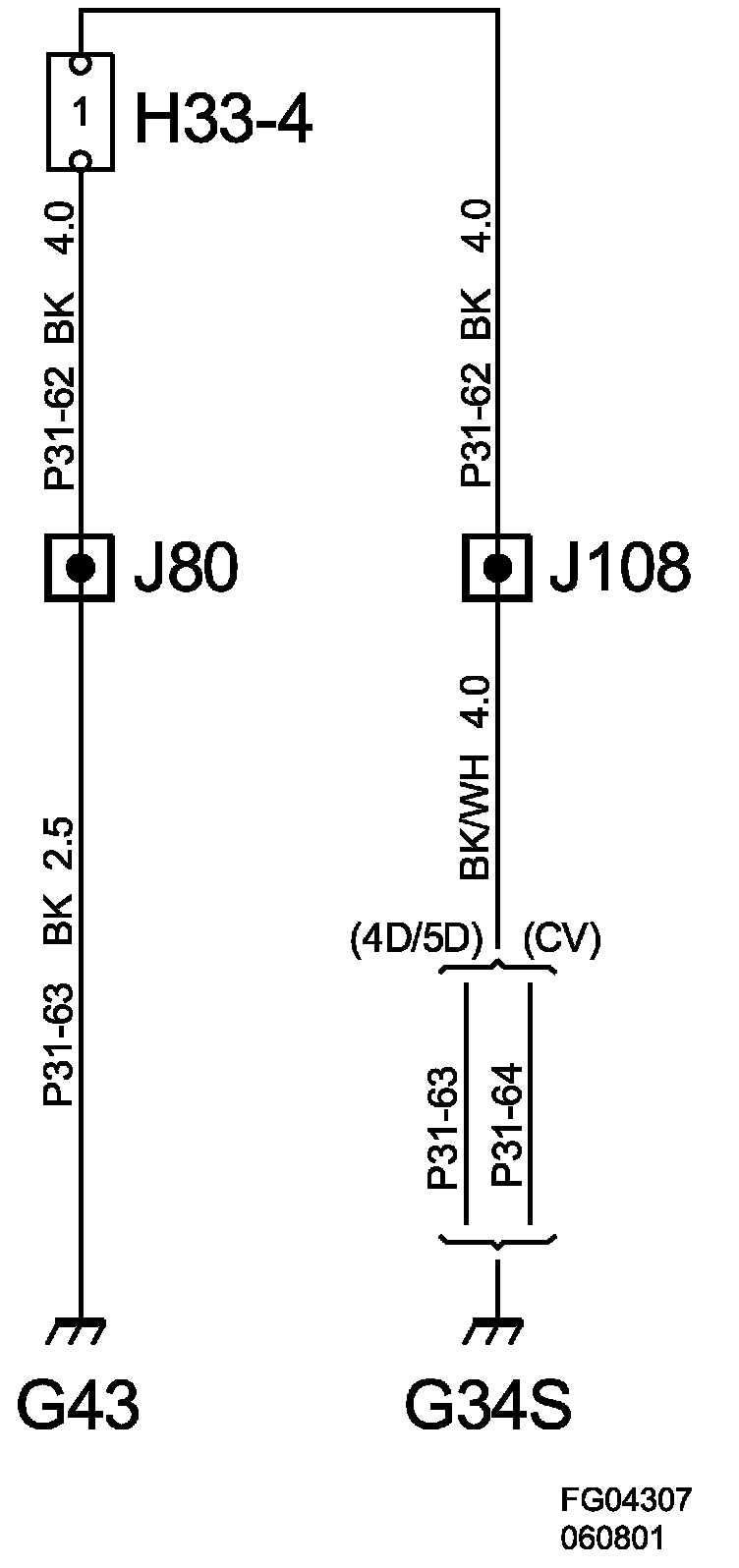

The grounding point is connected to the G43 grounding point via crimp connectors J108 and J80.

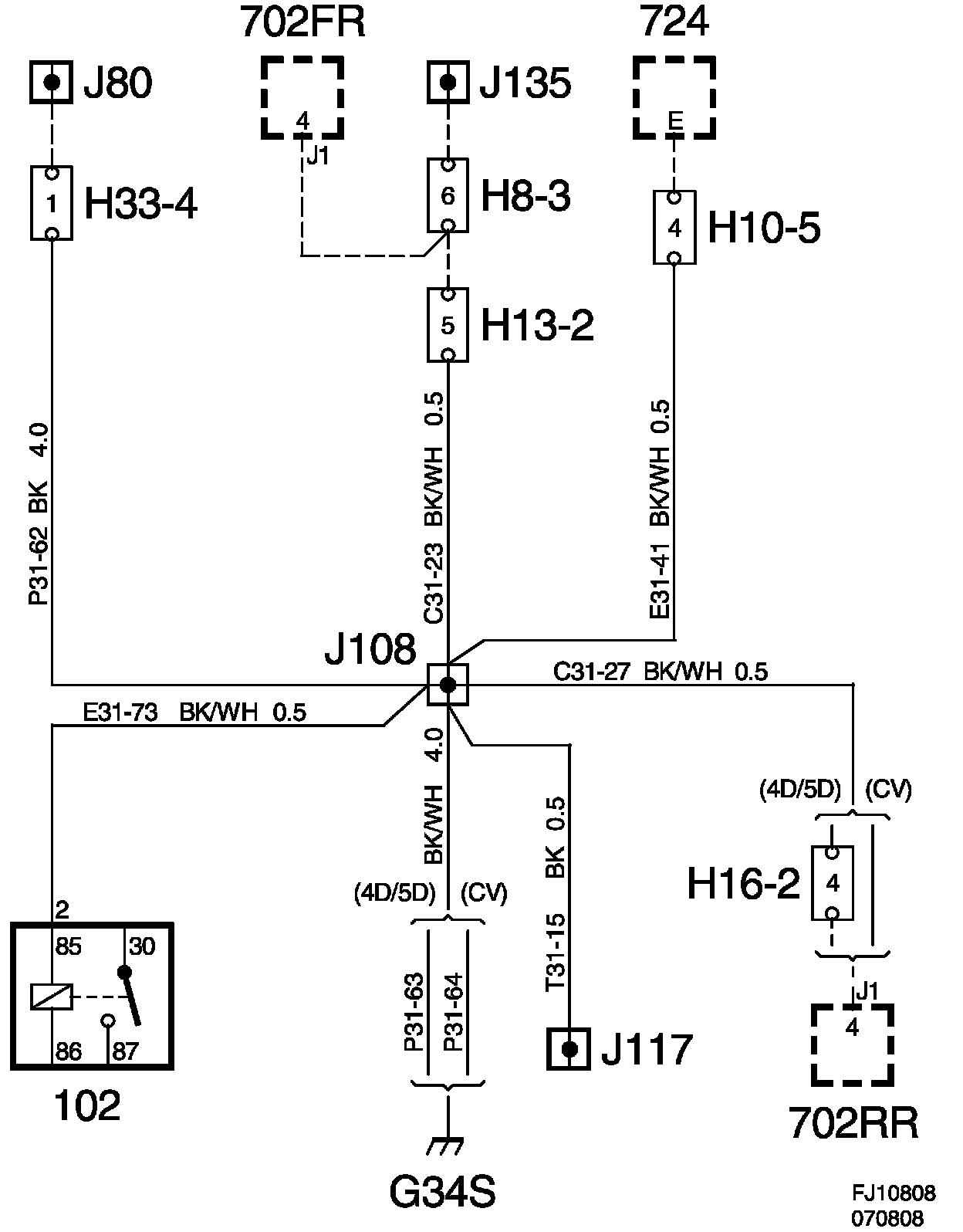

Grounding Point G34S:

Connected Components:

Crimp J108





Connection to G43
