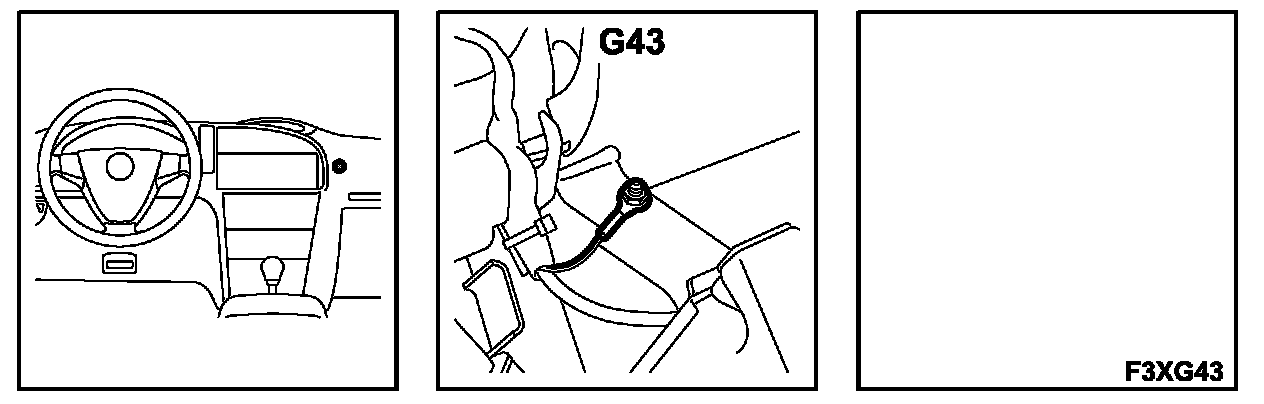

Grounding Point G43
Location: On right-hand side of knee member

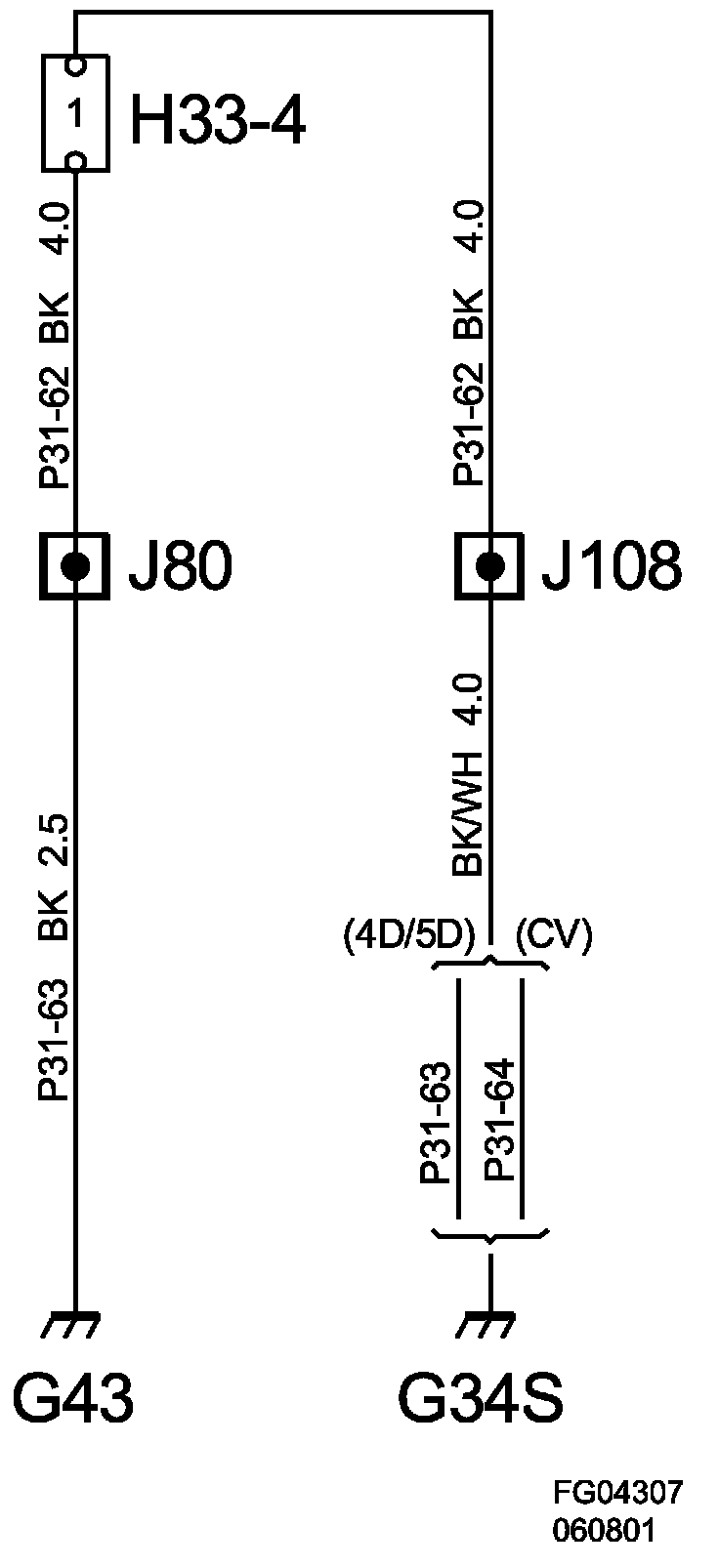

The grounding point is connected with grounding point G34S via crimps J80 and J108.
Grounding Point G43:
Connected Components:
Crimp J80
Location: On right-hand side of knee member
The grounding point is connected with grounding point G34S via crimps J80 and J108.
Crimp J80
