Home
>>
Saab
>>
2008
>>
9-3 (9440) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
Grounding Point G7
Grounding Point G7
Location:
Above the upper RH engine control module attachment eye

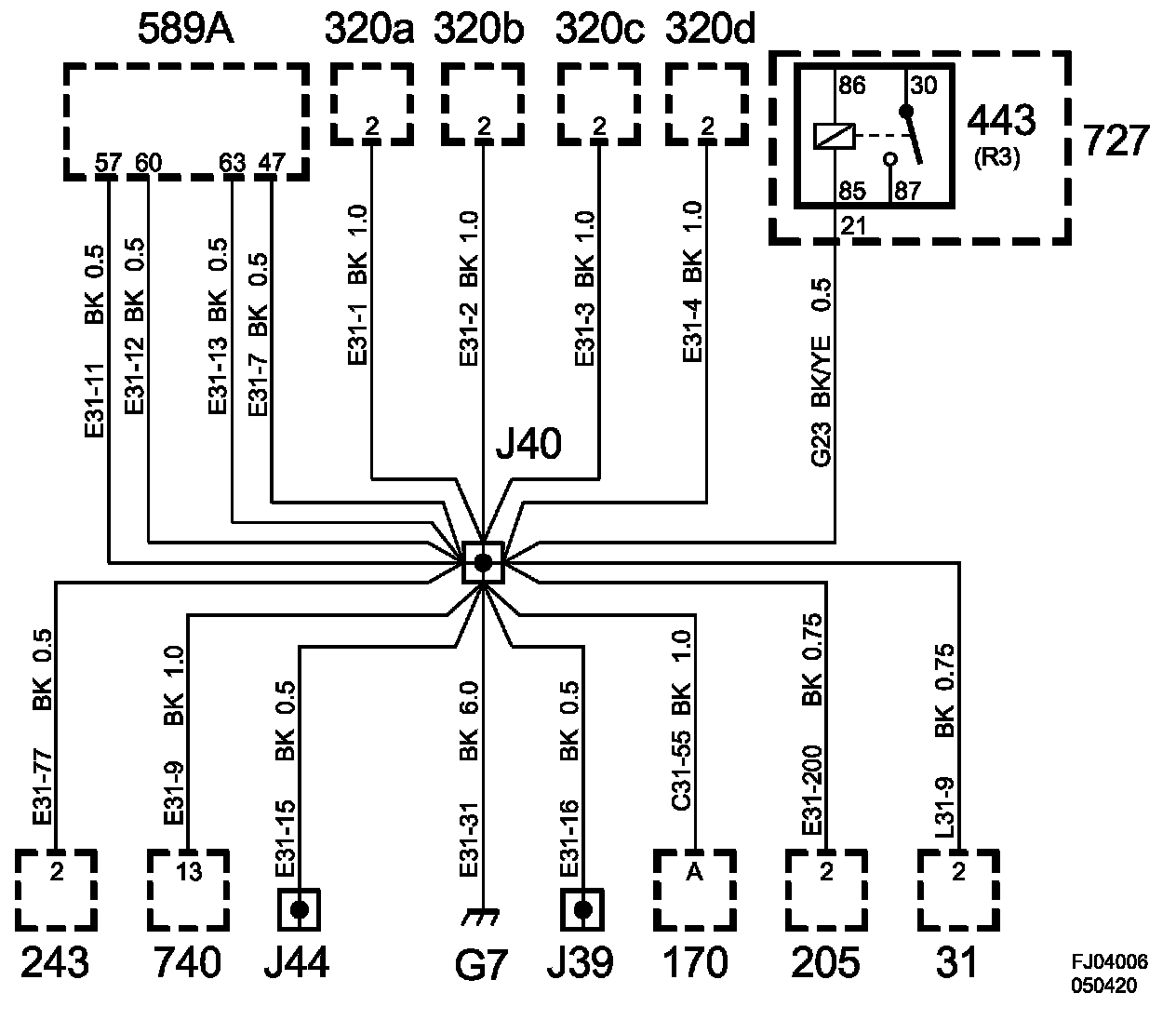

Grounding Point G7:

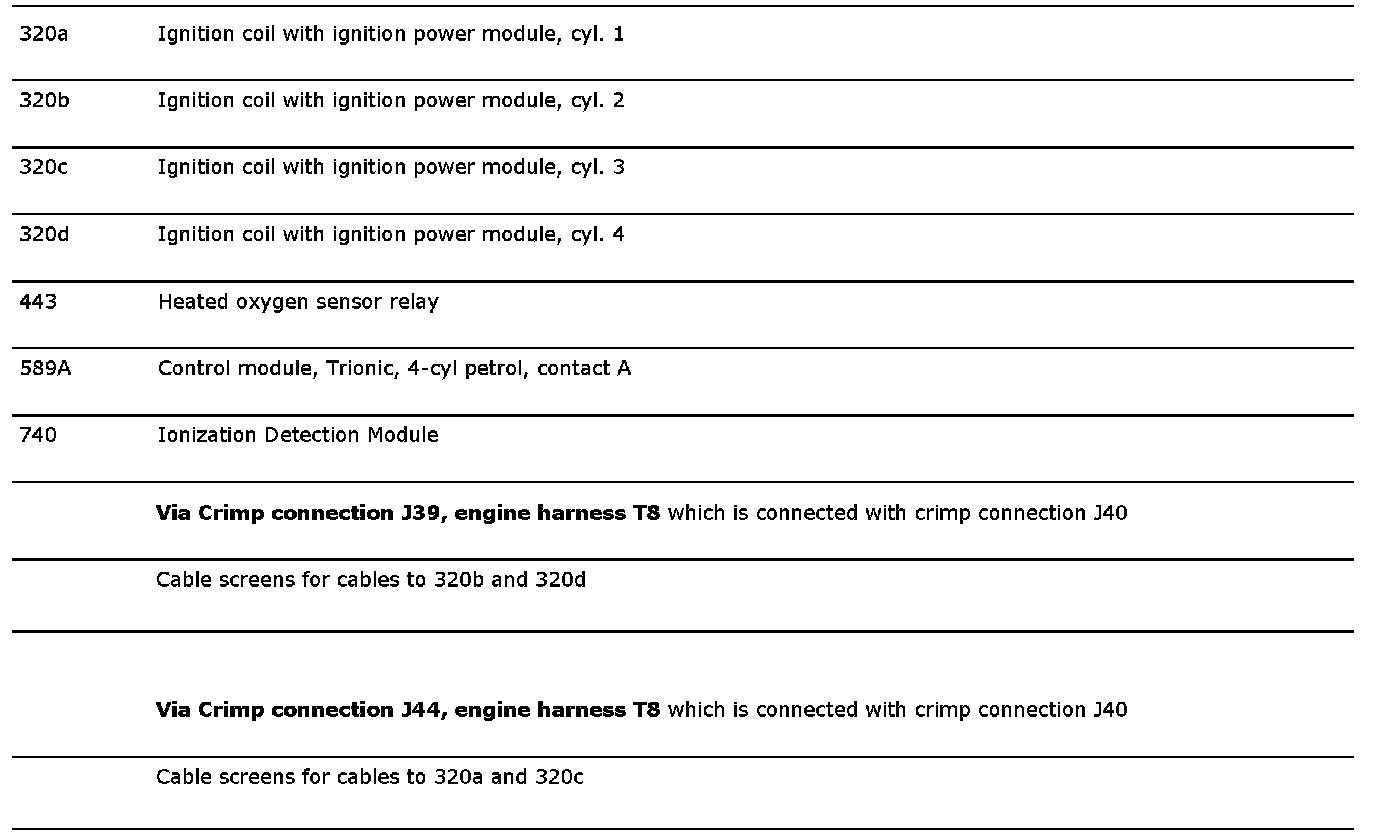

Connected Components (Part 1):
Connected Components (Part 2):
