Electrical Diagrams

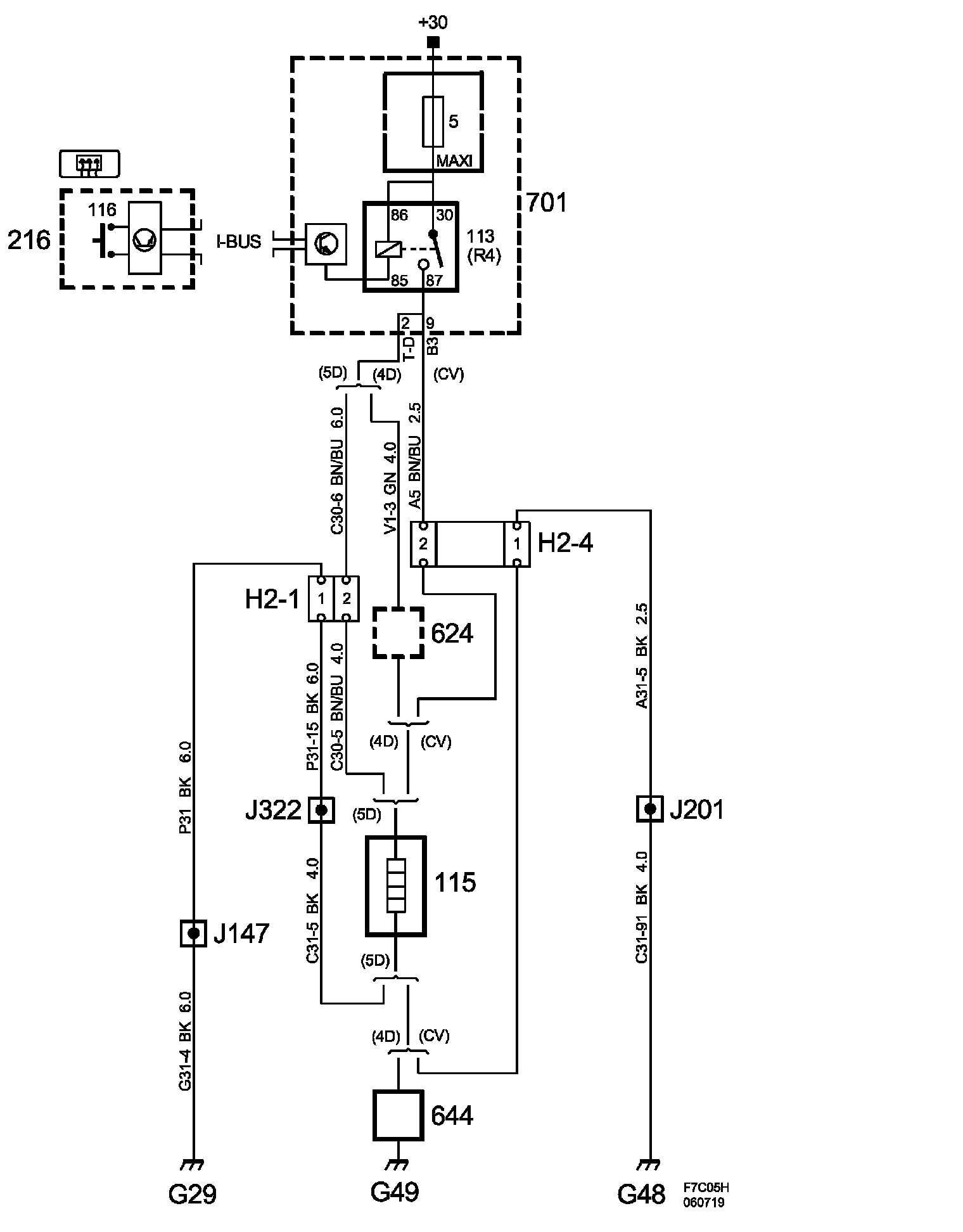

Heating, Rear Window:

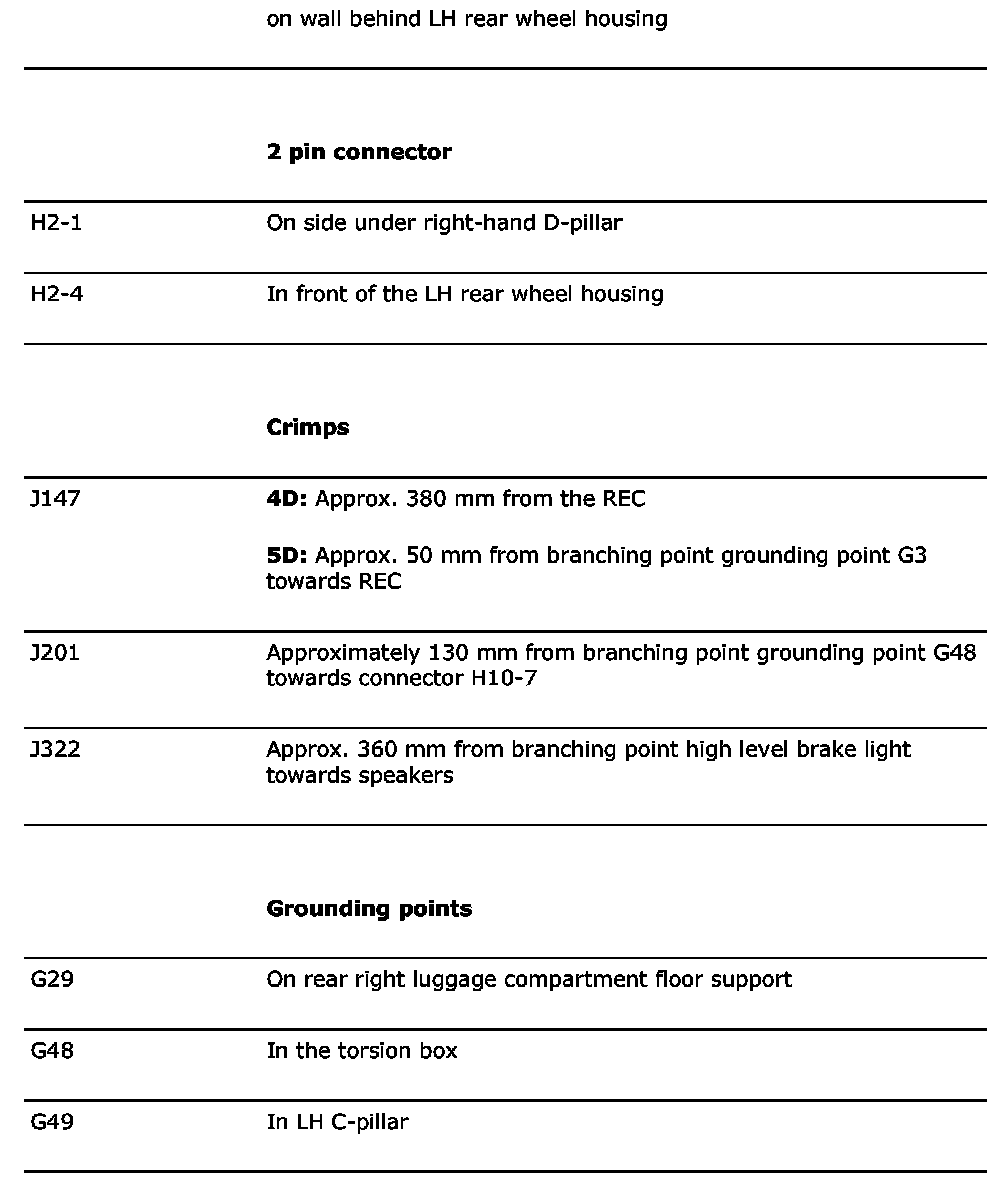

List of Components (Part 1):



List of Components (Part 2):
