Brake Switch (Cruise Control): Description and Operation

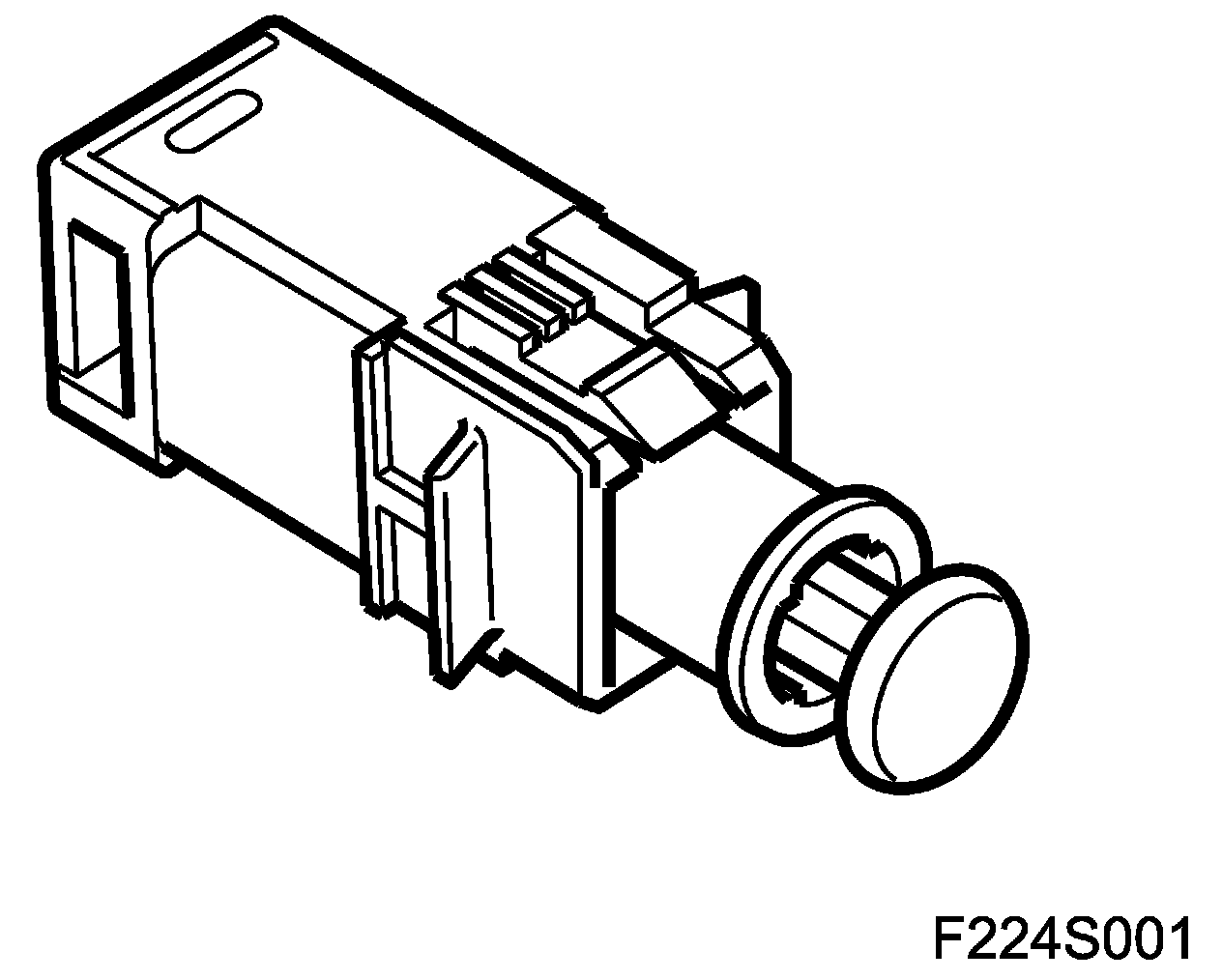

Brake Switch, Cruise Control (134), ME9





Main task
The control module uses brake switch information to disengage cruise control.

Type
The switch opens when the pedal is depressed.

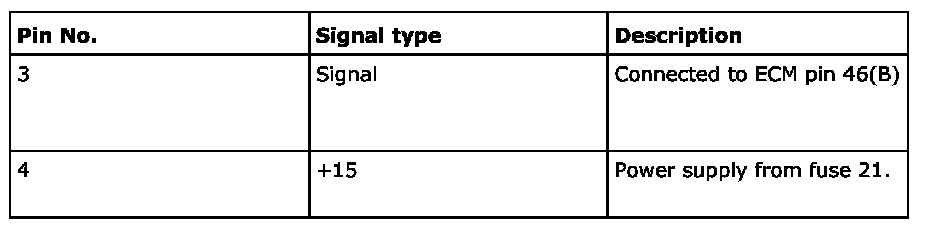

Connection





When the brake pedal is depressed, B+ to control module pin 42(B) is interrupted, at which point the control module pin sinks to ground potential.

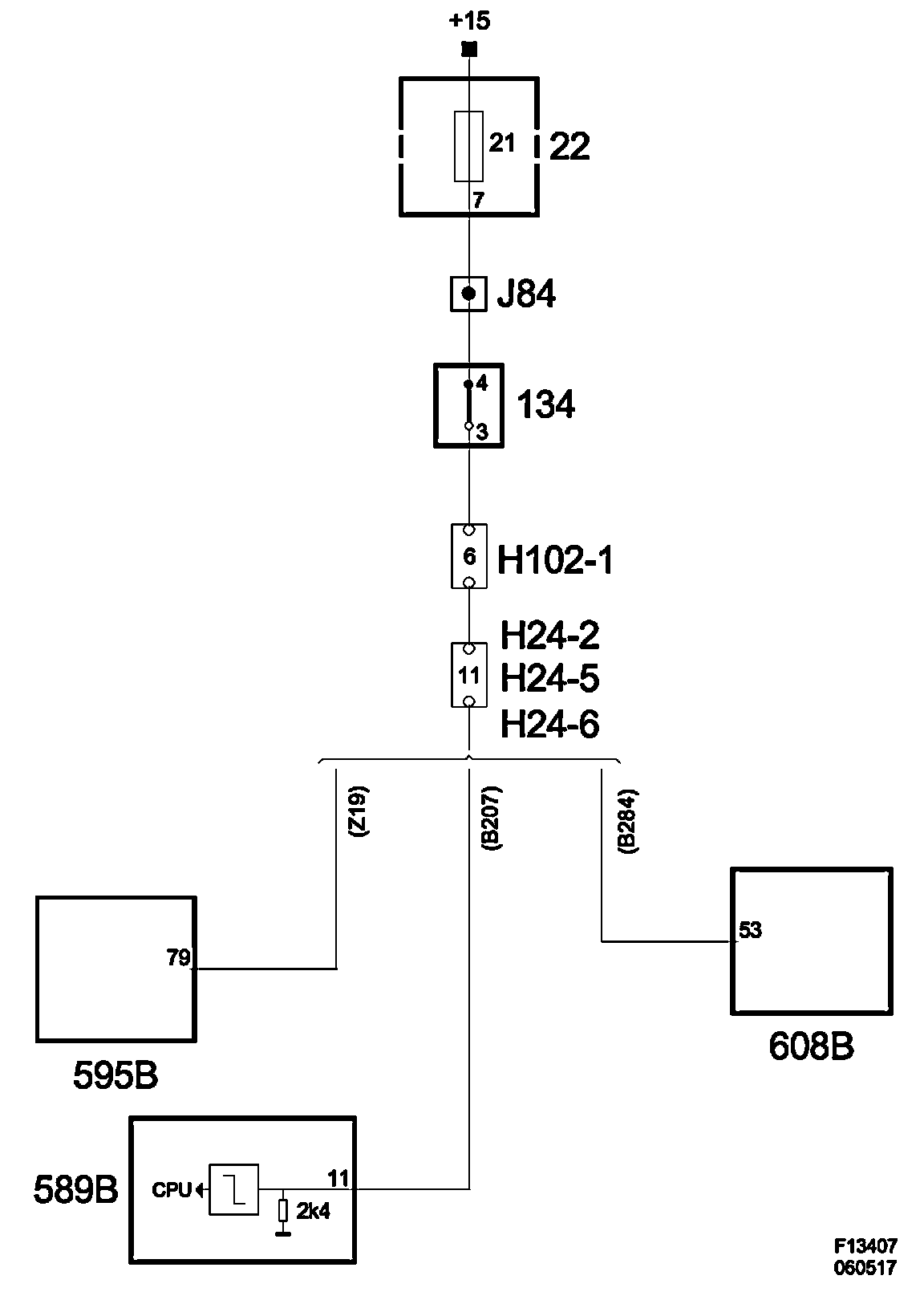

Diagram
