Air Injection Pump Relay
Air Injection Pump Relay

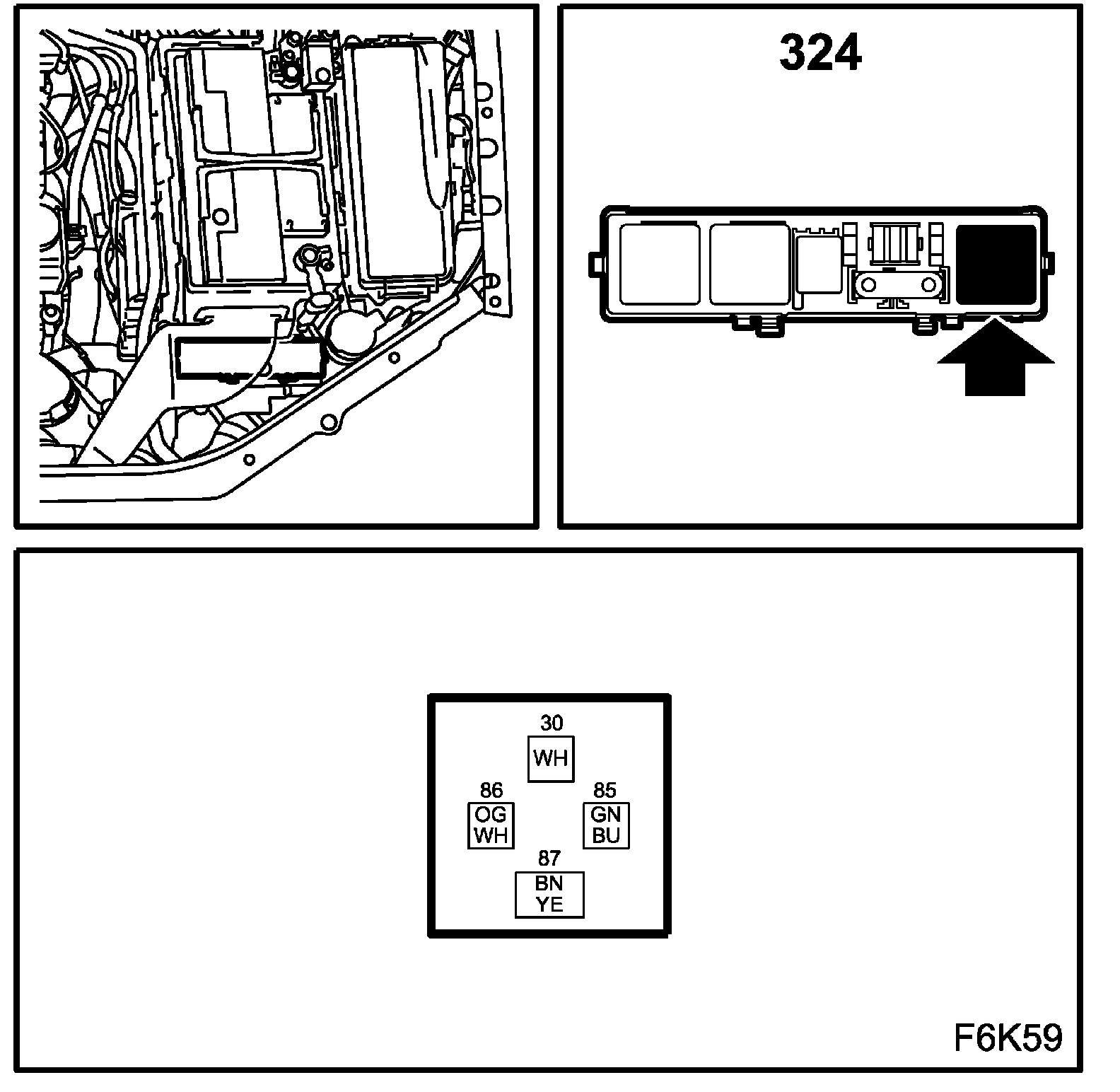

Location:
at bottom of engine front
Secondary Air Injection Pump Relay (324):
