Fuel Injector
>>

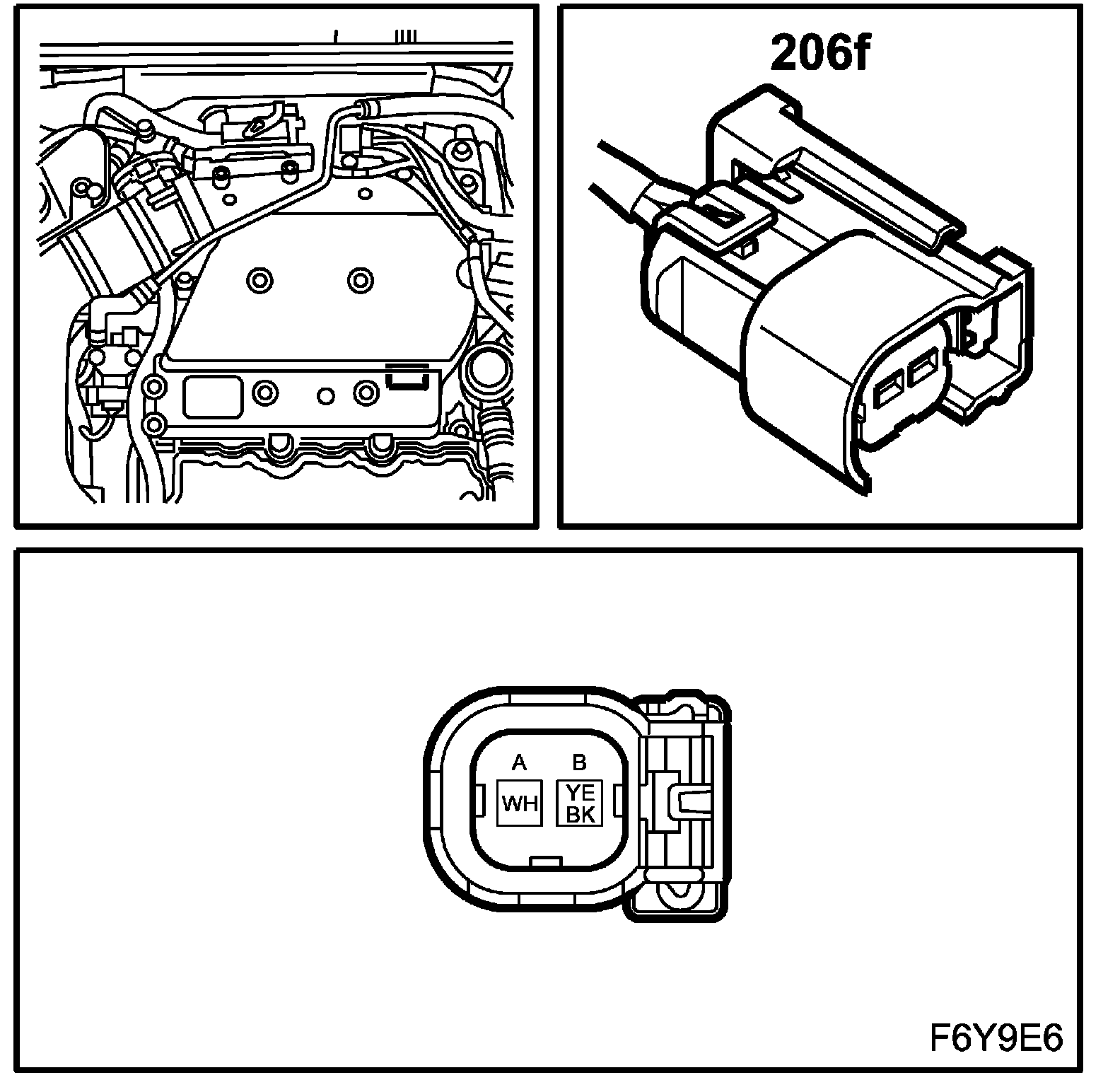

Injector, Cyl 6 (206f)
Injector, Cyl 6 (206f)
Location:
on front cylinder bank near gearbox side
Injector, Cyl 6 (206f):
