Fuel Pump
>>
Fuel Pump Control Unit
Fuel Pump Control Unit
4D/5D

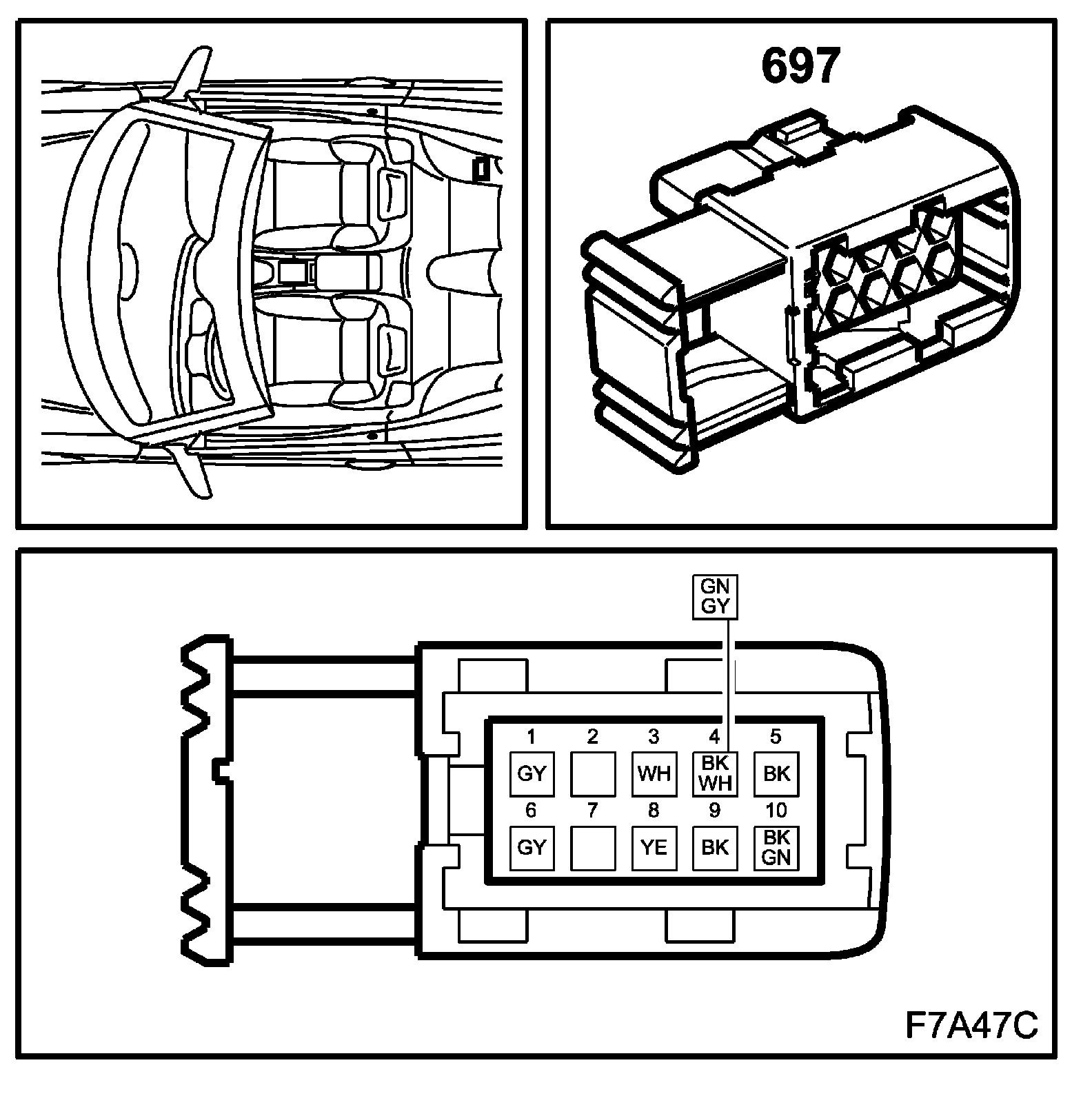

Location:
under right seat
Control Module, Fuel Pump (697):
CV
Location:
under right seat
Control Module, Fuel Pump (697):
