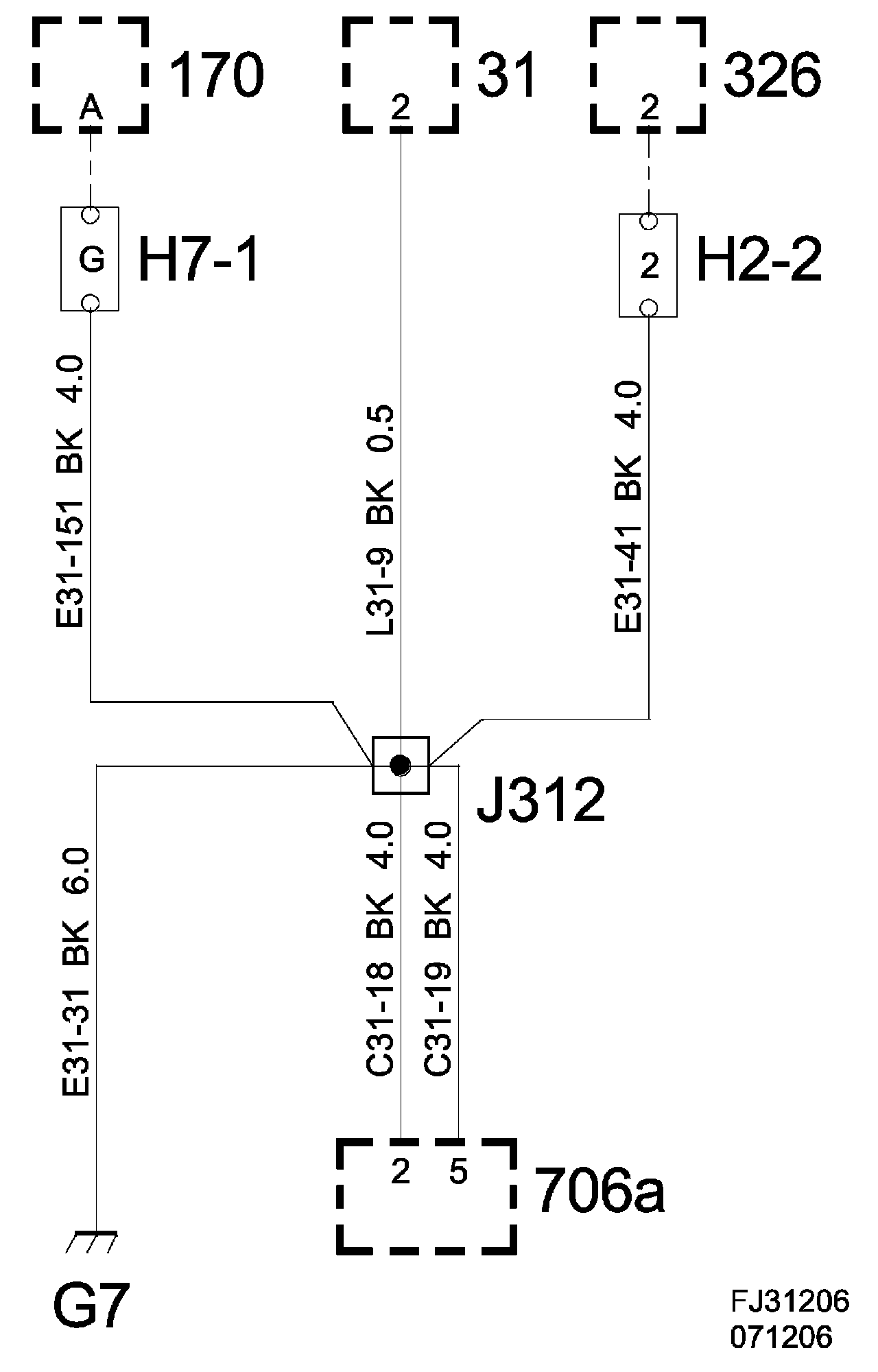

Grounding Point G2
Grounding Point G2

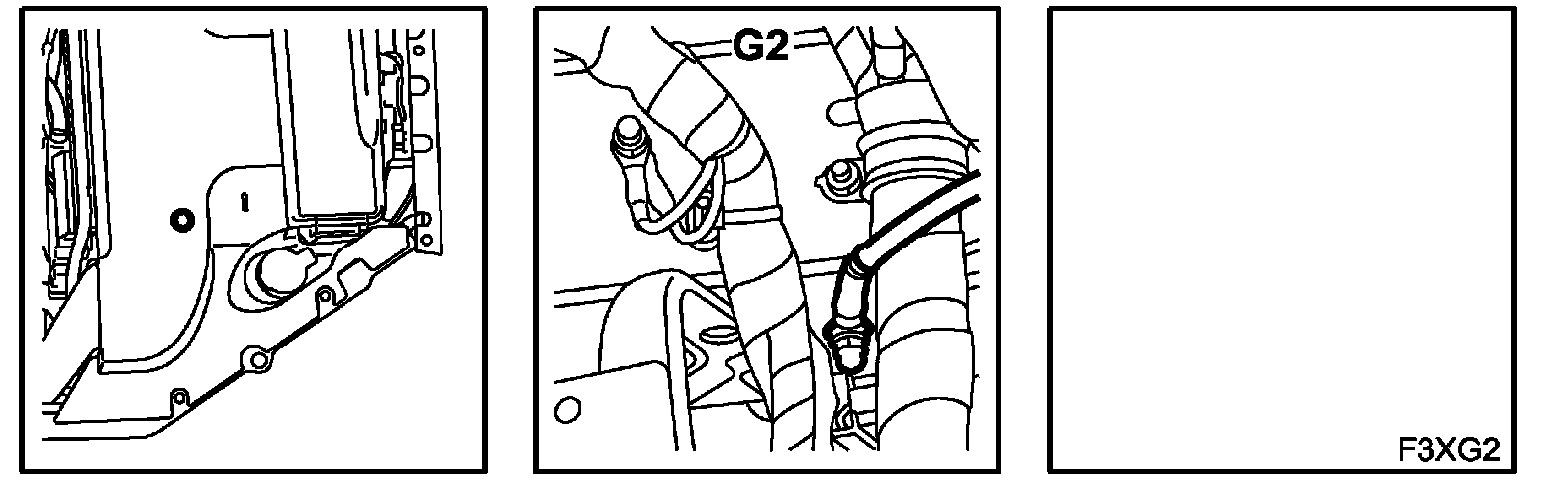

Location:
On the side of the LH structural member near the connector console
Grounding Point G2:

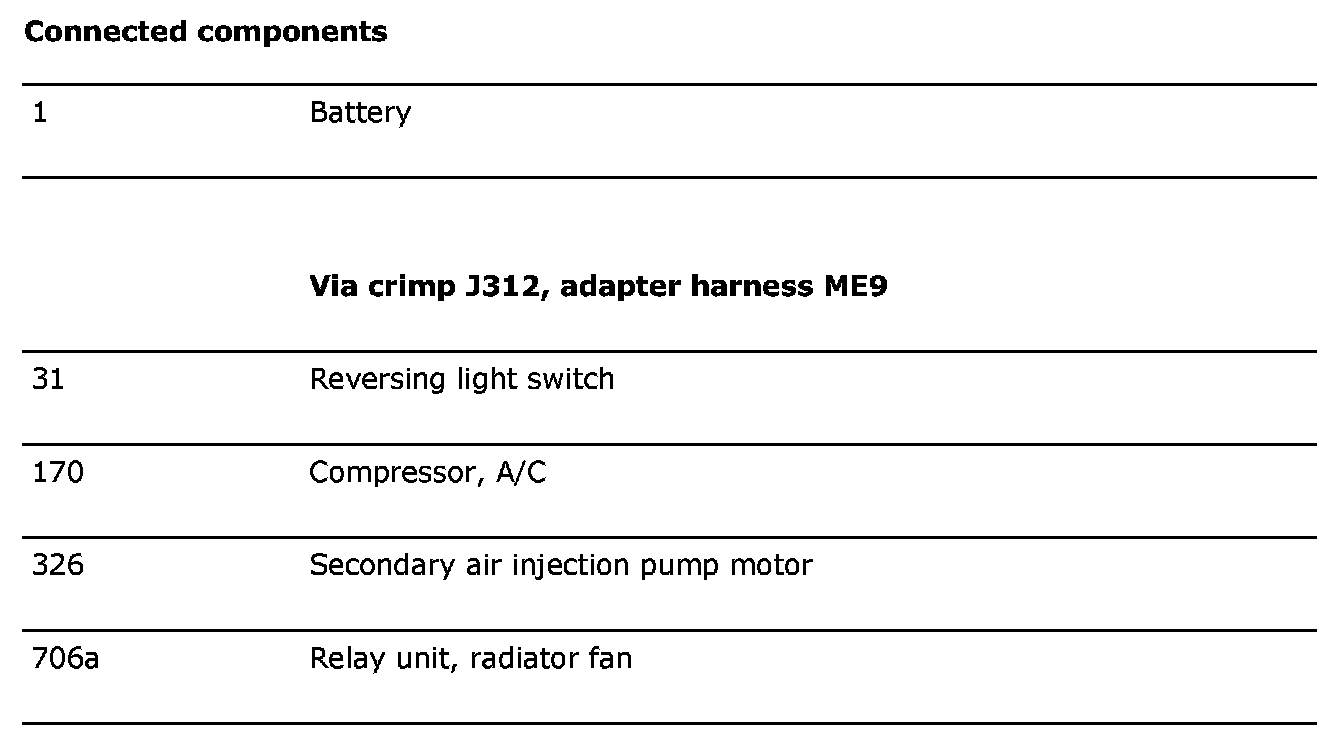

Connected Components:
