Fuel Tank Pressure Sensor
Fuel Tank Pressure Sensor
EVAP Pressure Sensor (585)
EVAP Pressure Sensor (585):

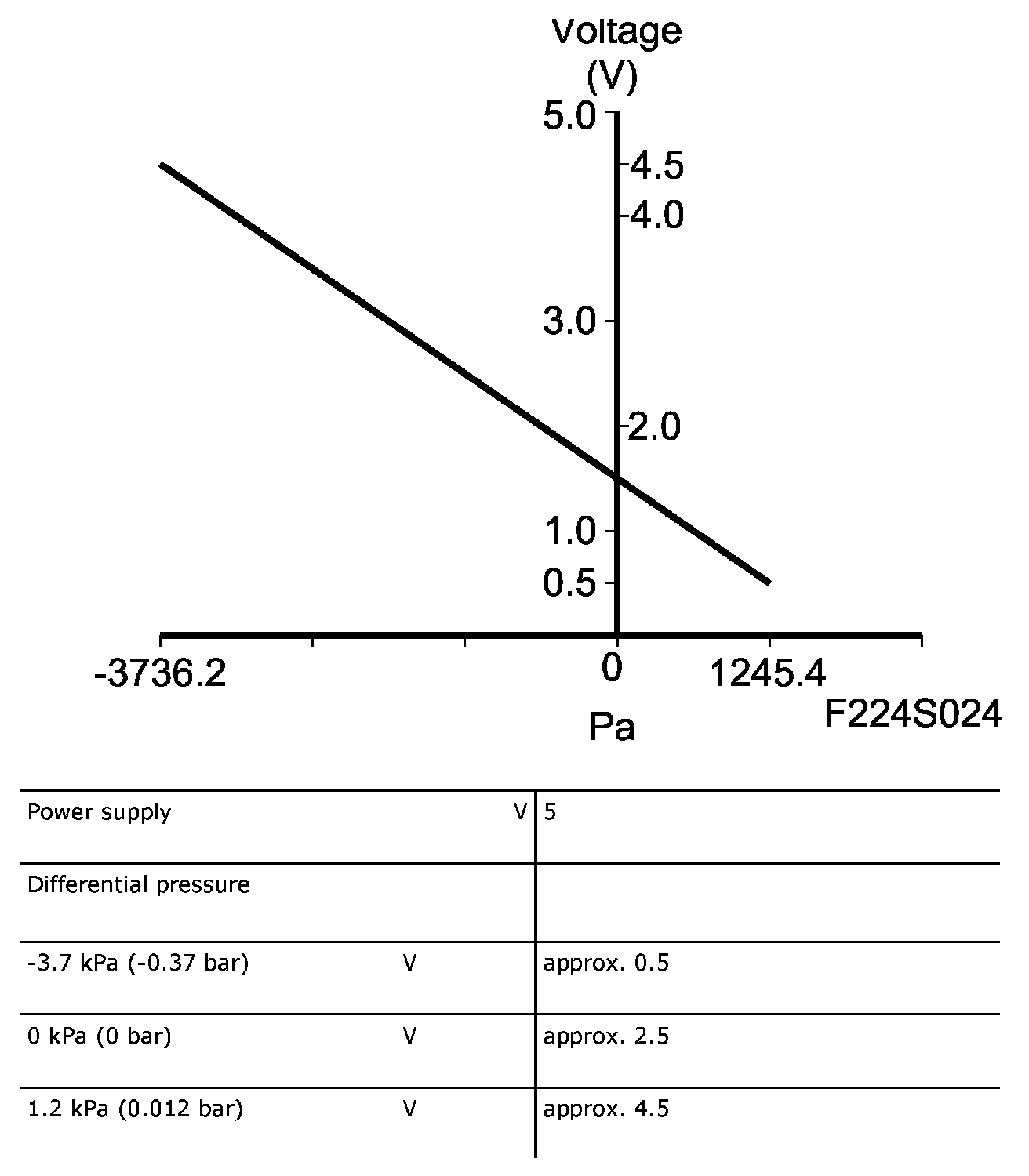

The pressure sensor determines the difference in pressure between the tank and the atmosphere, and supplies the control module with a proportional voltage.
