Air Door Actuator / Motor, HVAC
>>
Motor, Air Distribution Damper, Defroster/Panel/Floor (221A)
Motor, Air Distribution Damper, Defroster/Panel/Floor (221A)

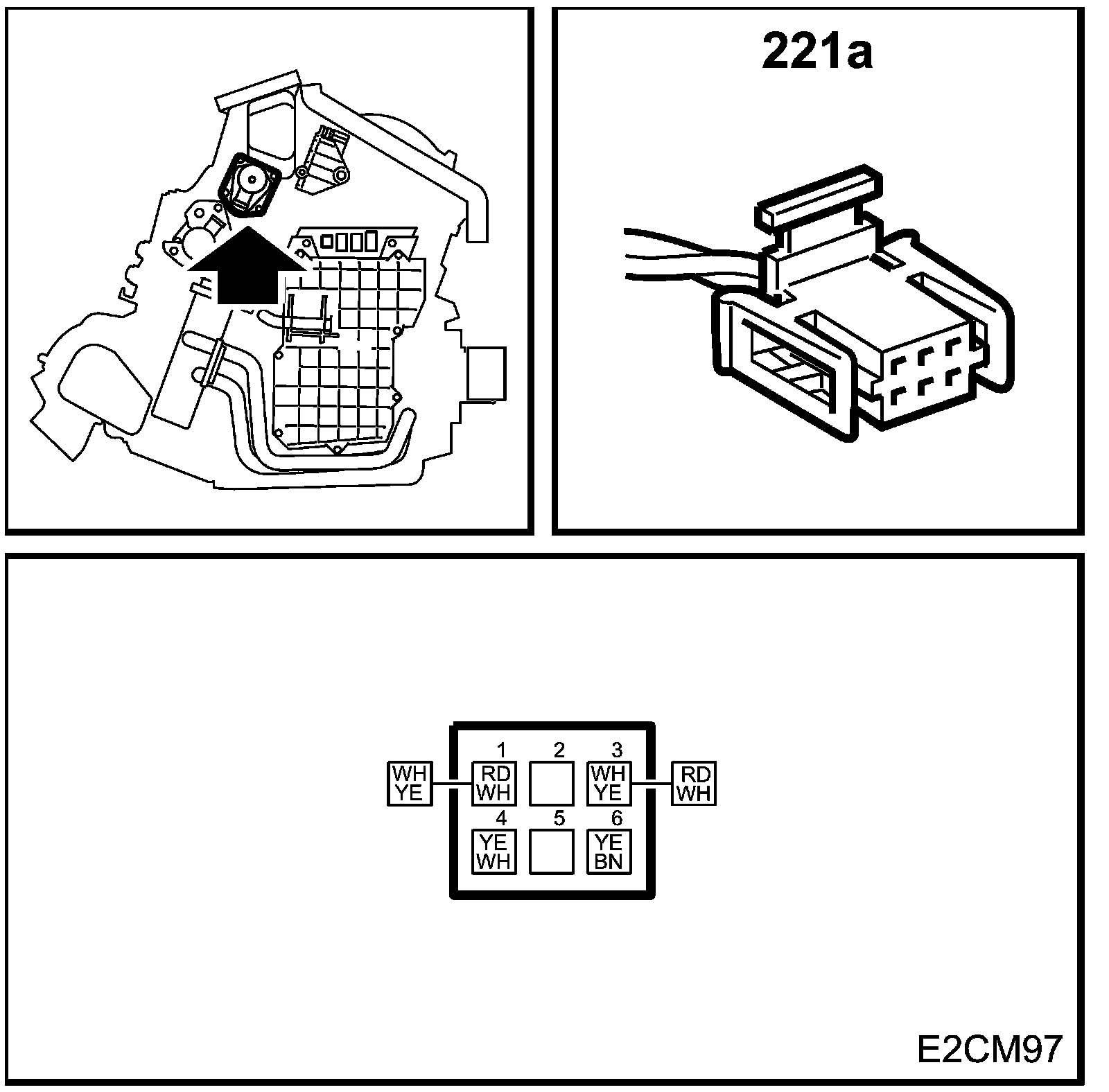

Motor, Air Distribution Damper, Defroster/Panel/Floor (221a):
