Parking Assist Distance Sensor
>>
Ultrasound Distance Sensor, Outer (631RR)
Ultrasound Distance Sensor, Outer (631RR)

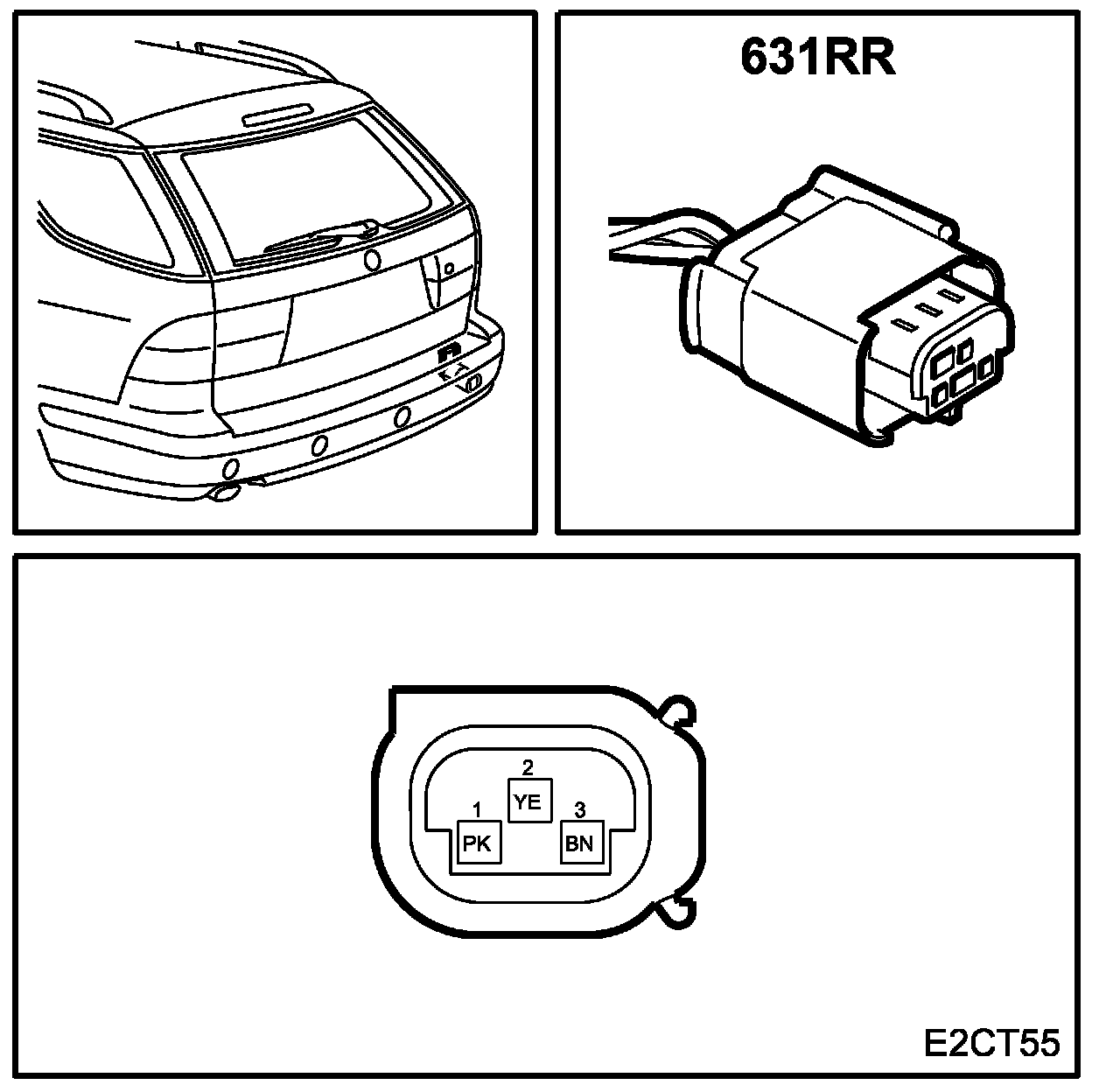

Ultrasound Distance Sensor, Outer (631RR):
