Seat Temperature Relay
>>

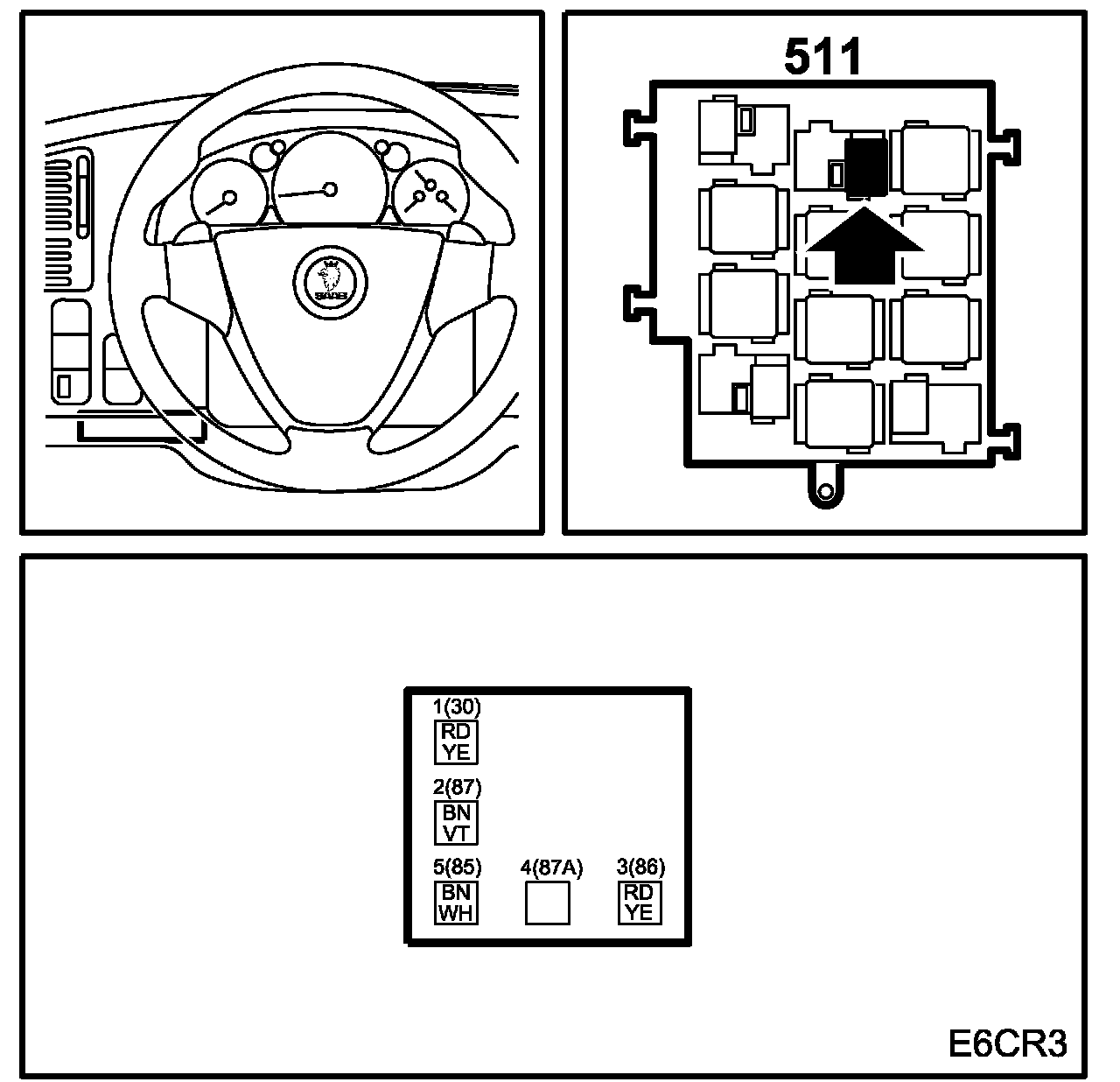

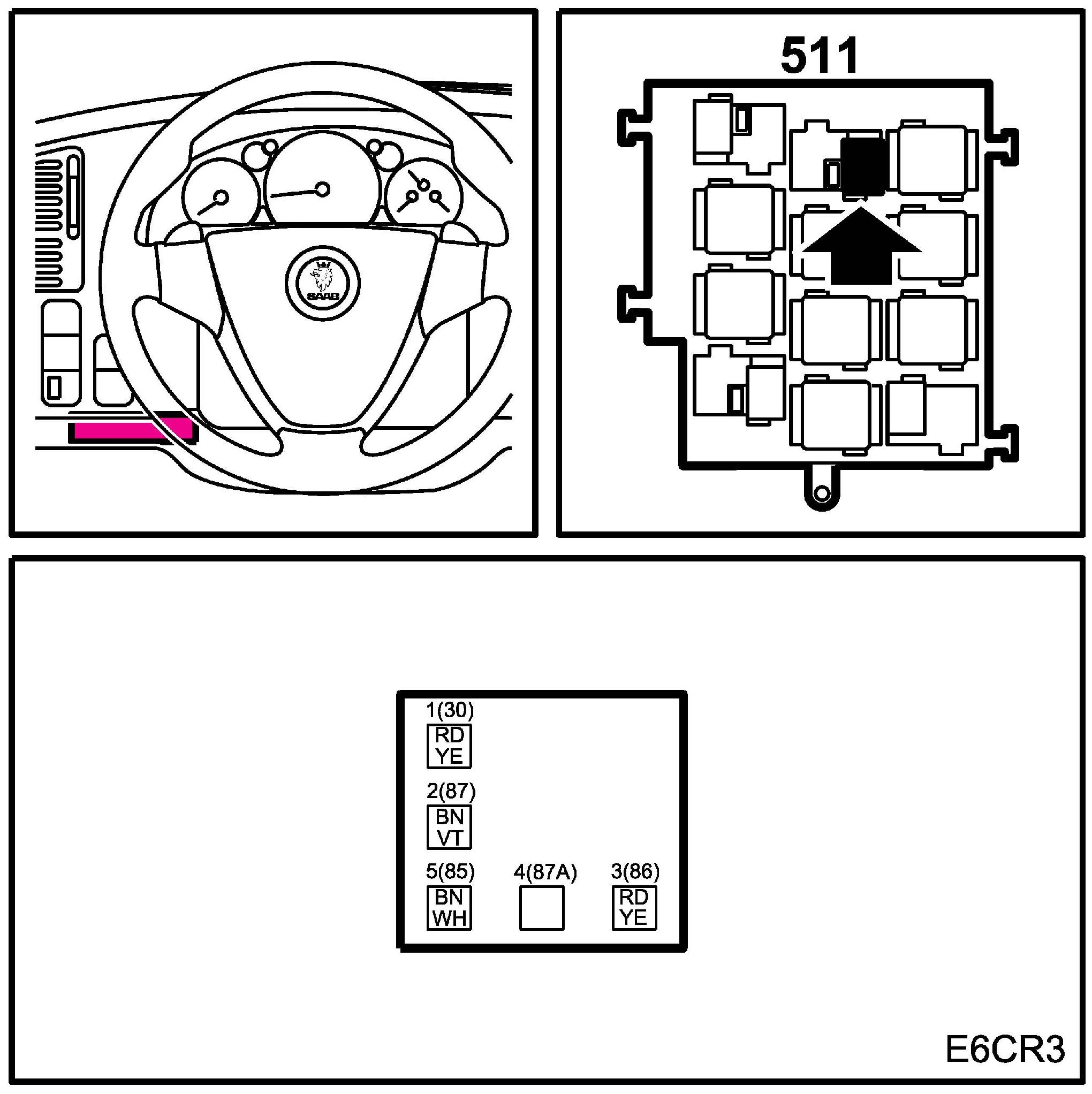

Relay, Heated Rear Seat (511)
Relay, Heated Rear Seat (511)
Relay, Heated Rear Seat (511):
Relay, Heated Rear Seat (511):
