Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saab
>>
2008
>>
9-5 (9600) L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Switch
>>

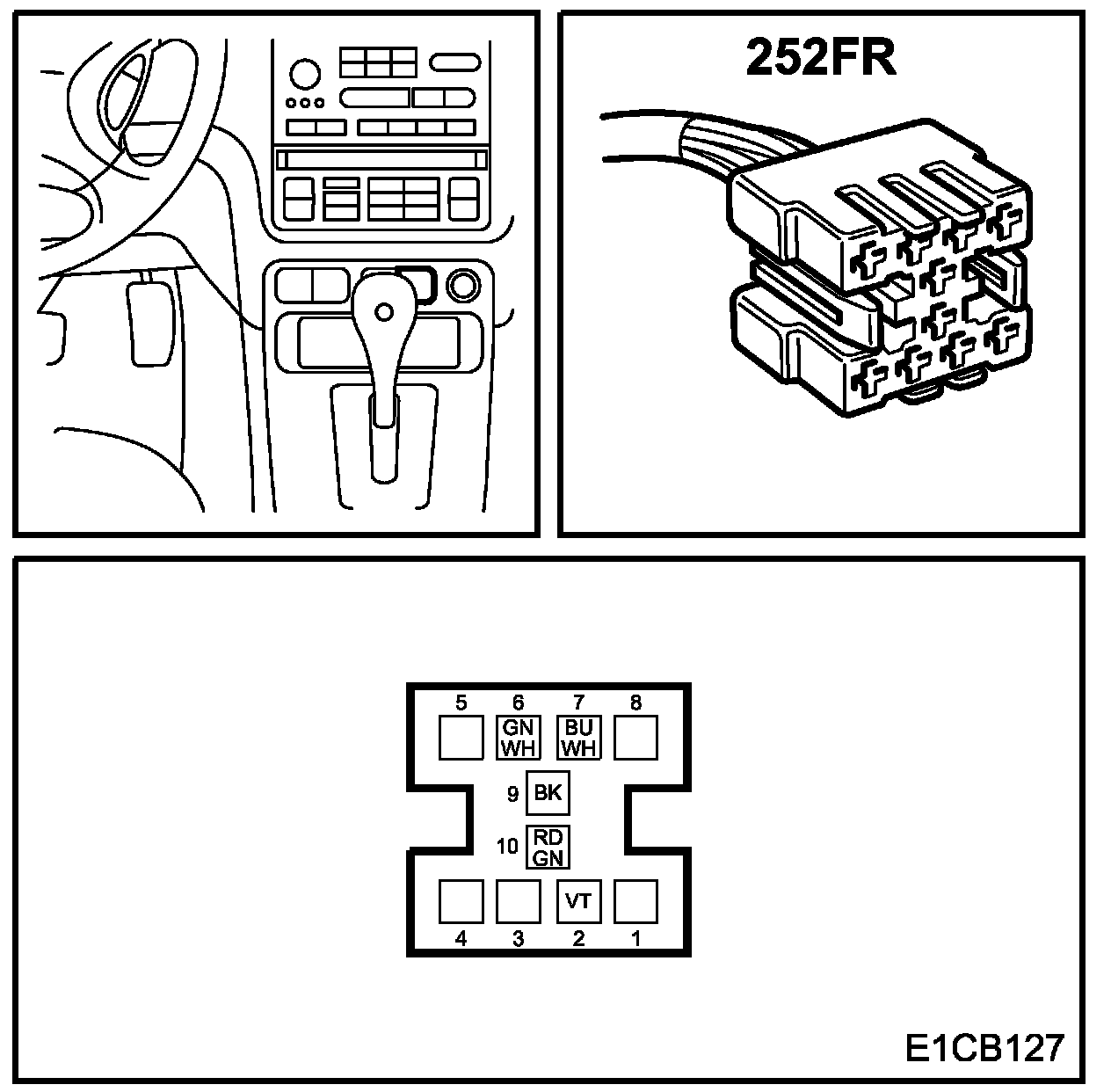

Switch, Heating Pad, FR Seat (252FR)
Switch, Heating Pad, FR Seat (252FR)
Switch, Heating Pad, FR Seat (252FR):
