Saab
>>
2008
>>
9-5 (9600) L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Switch
>>

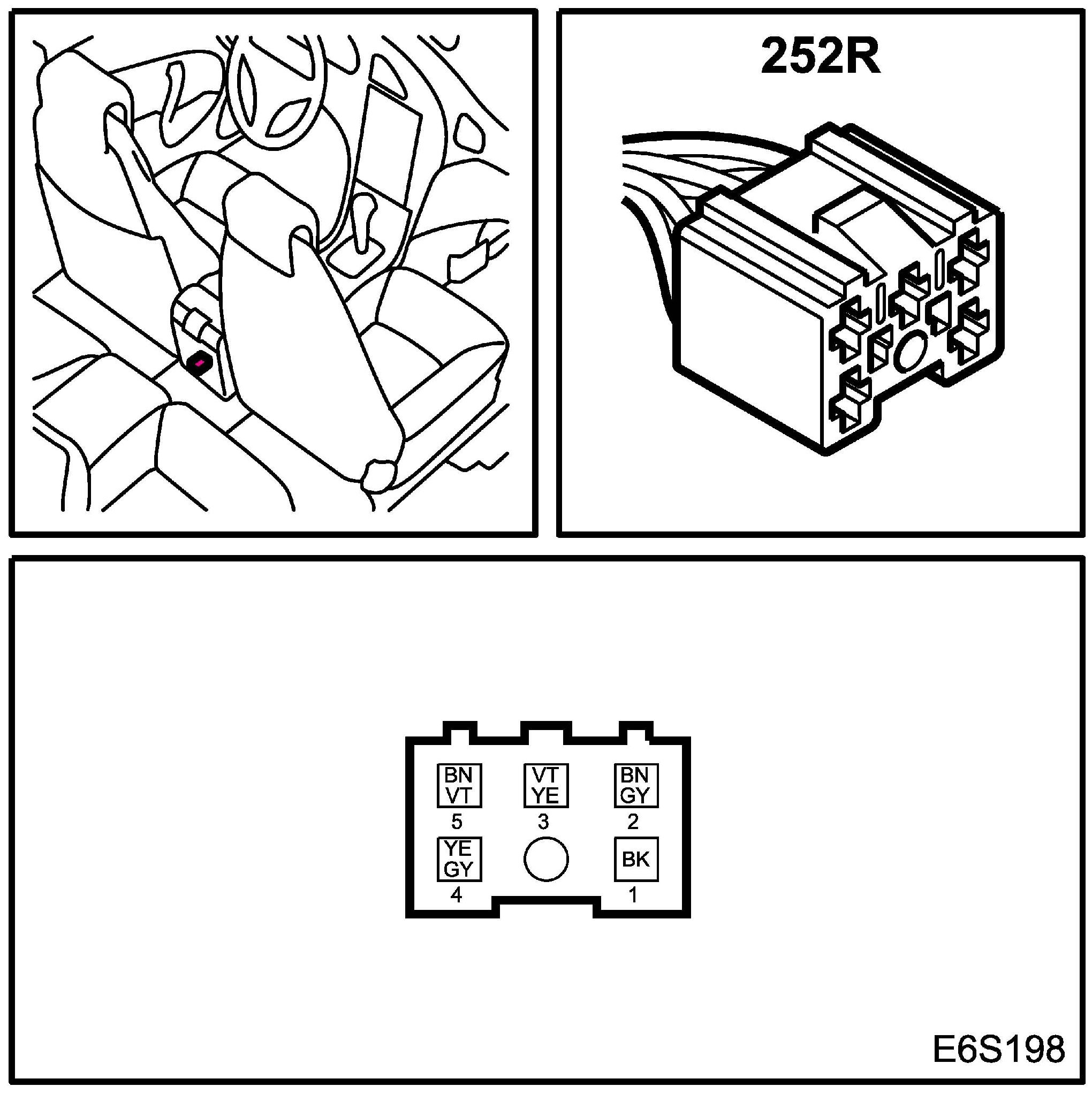

Switch, Heating Pad, Rear Seat (252R)
Switch, Heating Pad, Rear Seat (252R)
Switch, Heating Pad, Rear Seat (252R):
Switch, Heating Pad, Rear Seat (252R):
