Home
>>
Saab
>>
2008
>>
9-5 (9600) L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper and Washer Systems
>>
Headlamp Washer Motor Relay
Headlamp Washer Motor Relay

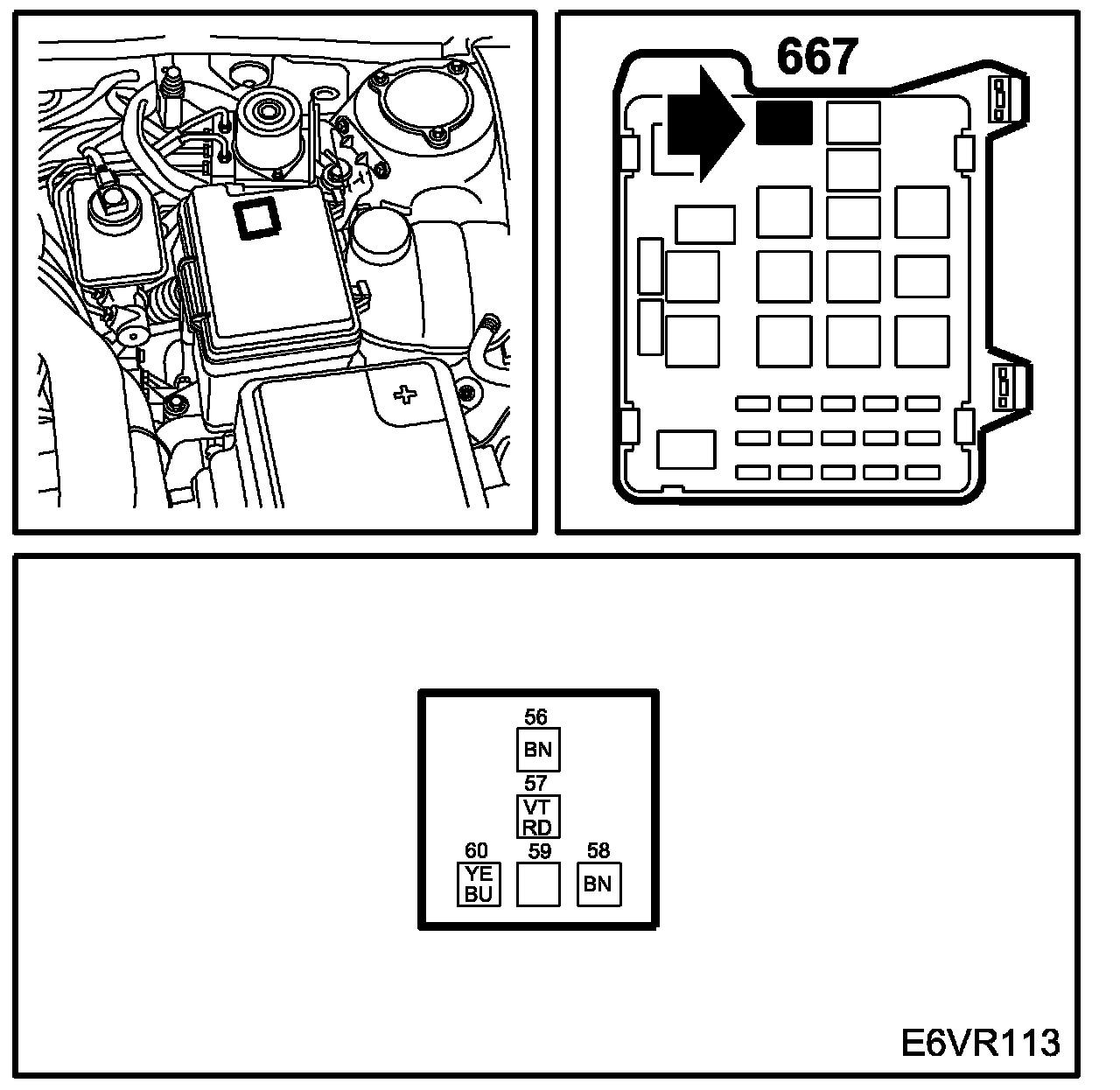

Relay, High Pressure Headlamp Washer Fluid Pump (667):
