Grounding Point G45 (5D Only)
Grounding Point G45 (5D Only)

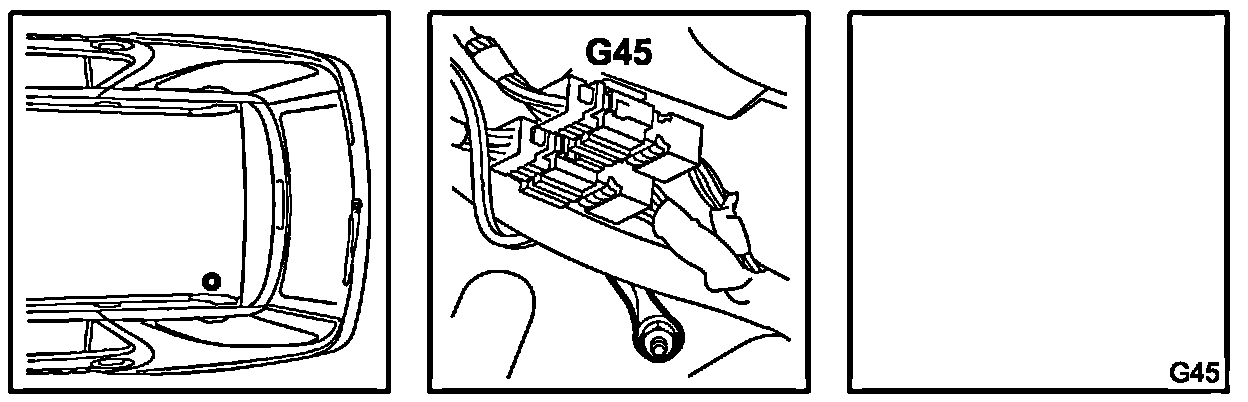

Location:
In roof above LH D-pillar.

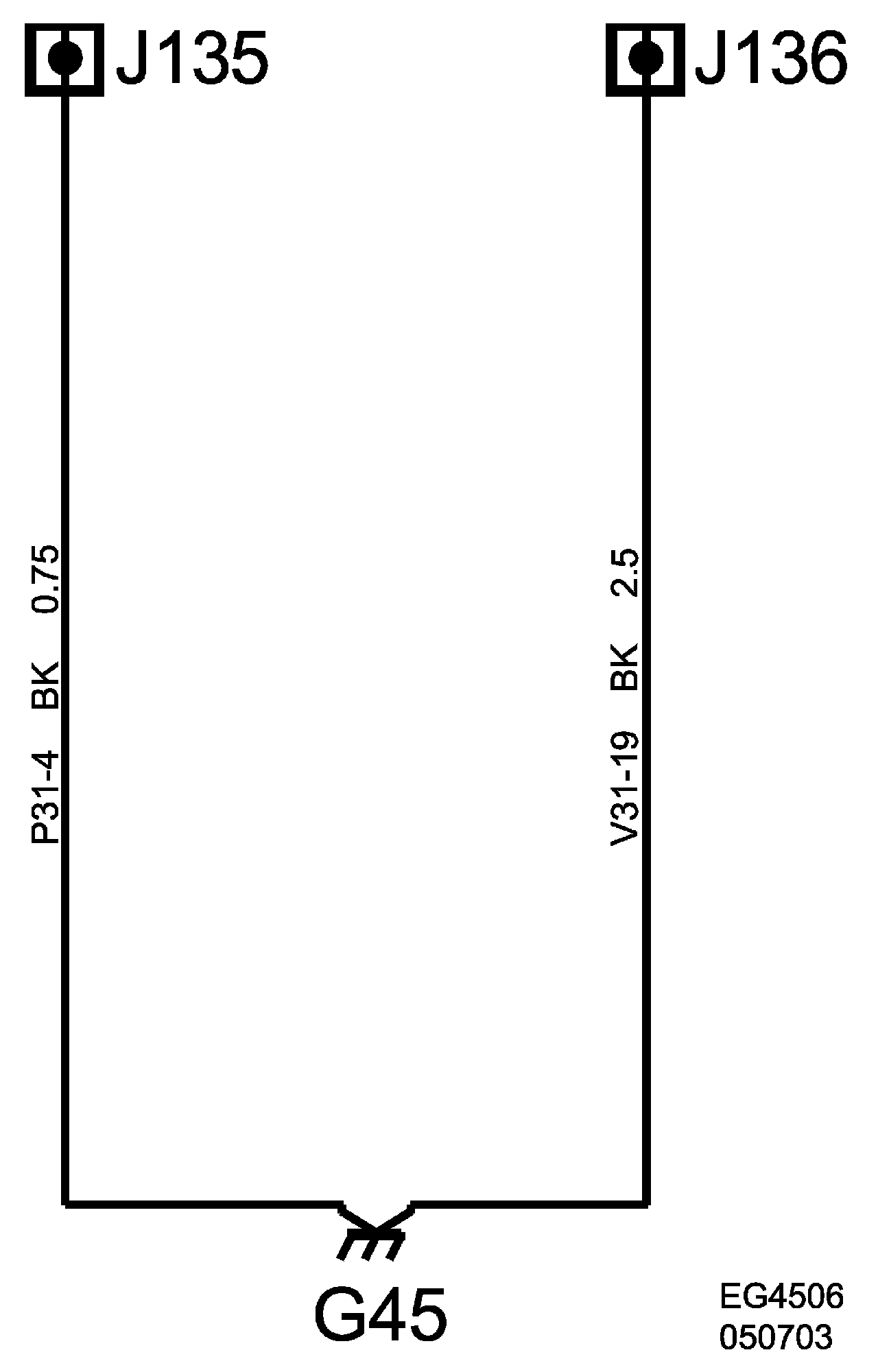

Gounding Point G45:

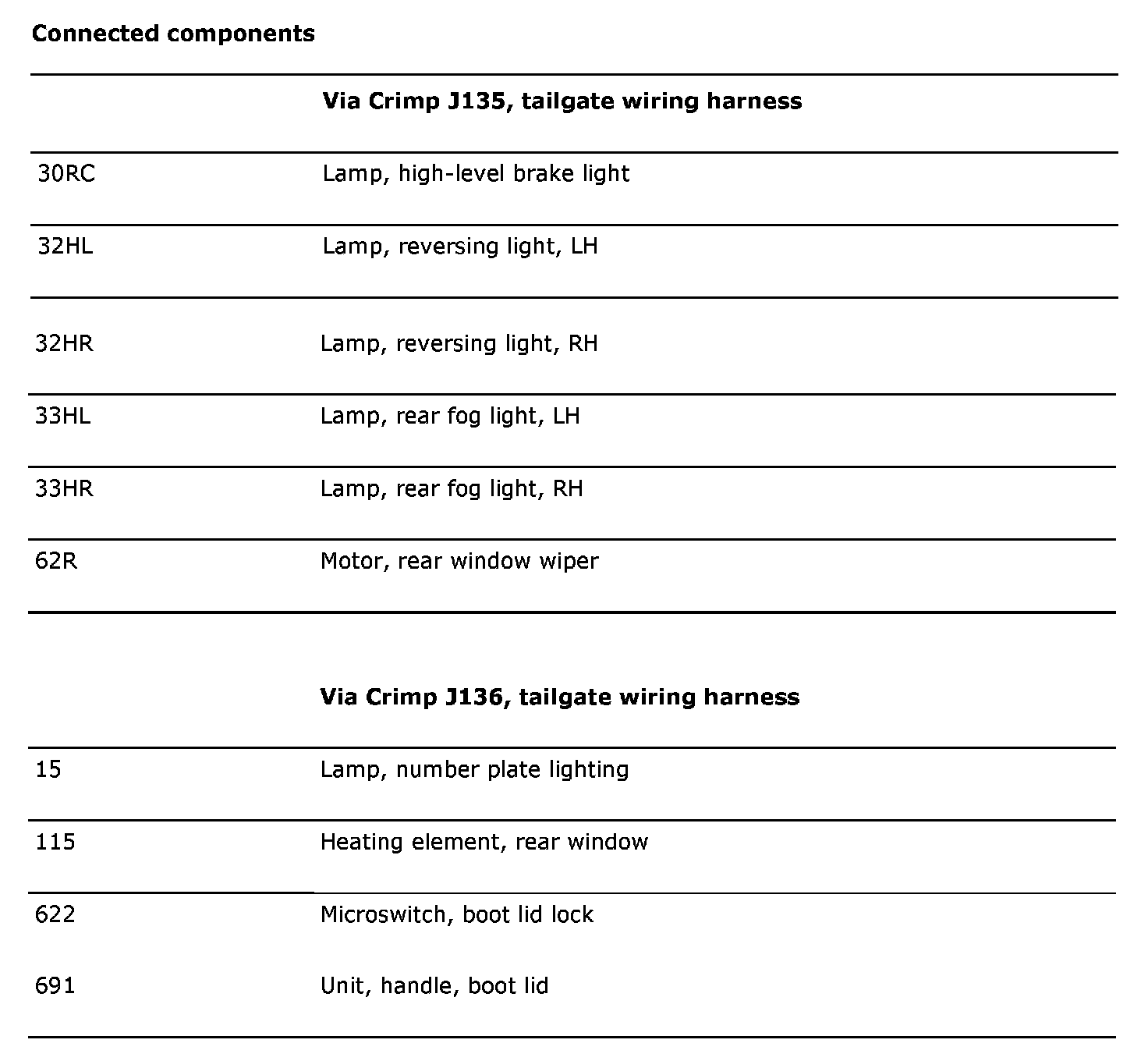

Connected Components:
