ABS Warning Lamp

ABS Warning Lamp

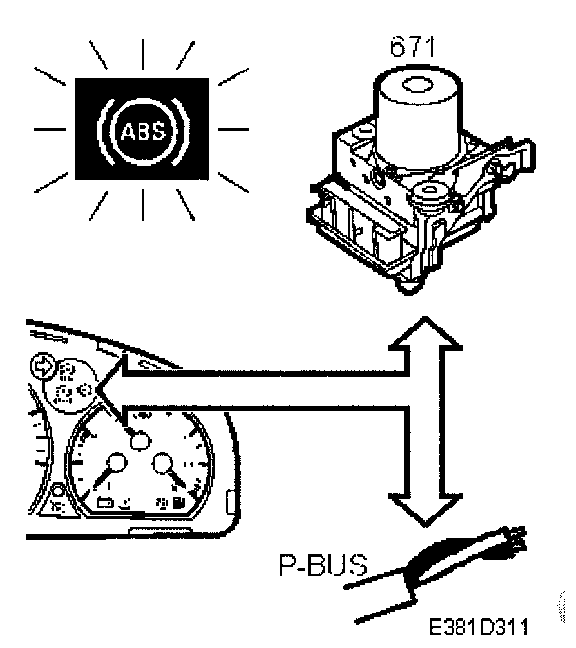

The ESP control module monitors the operation of the ABS system and turns on the ABS warning lamp on the upper right-hand side of the main instrument unit if a fault occurs.


When the ABS lamp lights up, the anti-lock braking system is disabled and the brakes work just like a conventional braking system.

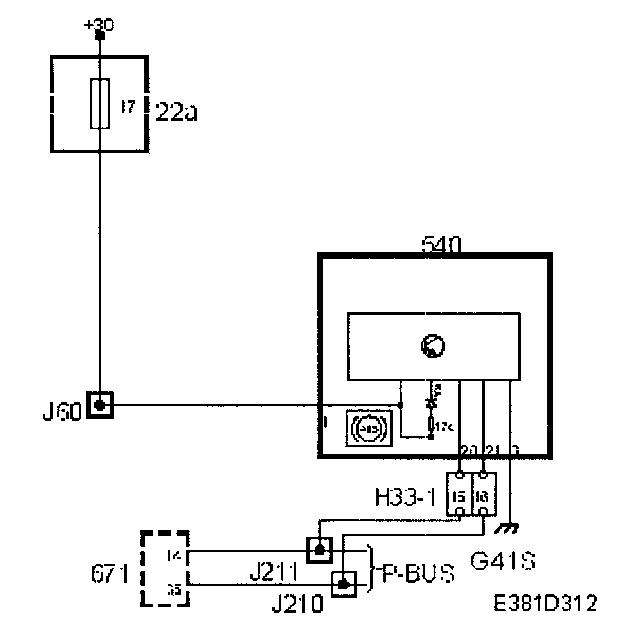

The main instrument unit receives information on the bus to turn on/off the lamp.


The ESP control module lights the lamp when the ignition is turned on. If there are no faults, the lamp will go out after 3 seconds.


When the ABS warning lamp lights up the ESP OFF lamp will also be illuminated and at engine speeds exceeding 300 rpm the MIU sends a message to the SID control module requesting an acoustic signal.


Diagnosis


The function has no diagnostics.
