CHECK GEARBOX Indicator Lamp

CHECK GEARBOX Indicator Lamp

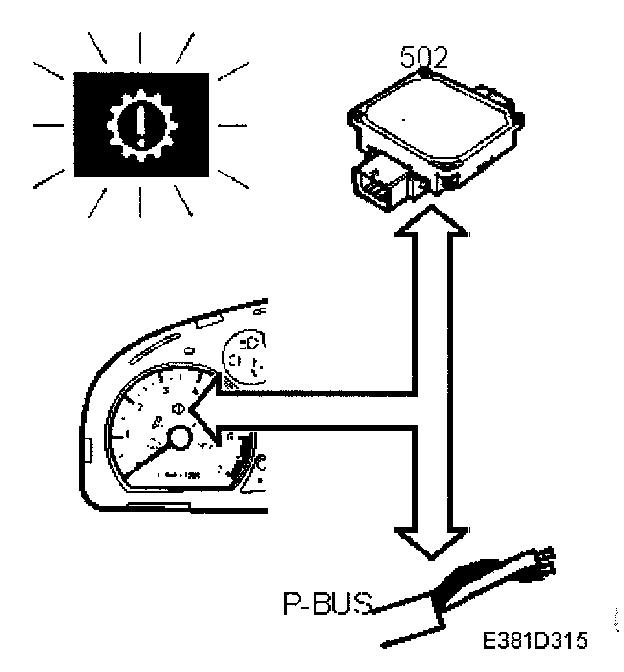

If there is a fault in the automatic transmission or its control module, the 1CM lights the CHECK GEARBOX warning lamp in the main instrument unit.


The lamp is powered from the main instrument unit and grounded internally by the main instrument unit. TCM continuosly sends bus information CHECK GEARBOX, unit ON/OFF.

On receiving CHECK GEARBOX ON, the control module grounds the output of the lamp which then lights up.


When the 1CM sends the message CHECK GEARBOX OFF, the lamp goes out.


When the ignition is turned on, the TCM lights the lamp for approx. 3 seconds and if there is no fault the lamp will go out.


Diagnosis


The function has its own diagnostics in the sending system.
