Direction Indicator Repeater Lamps RH and LH

Direction Indicator Repeater Lamps RH and LH

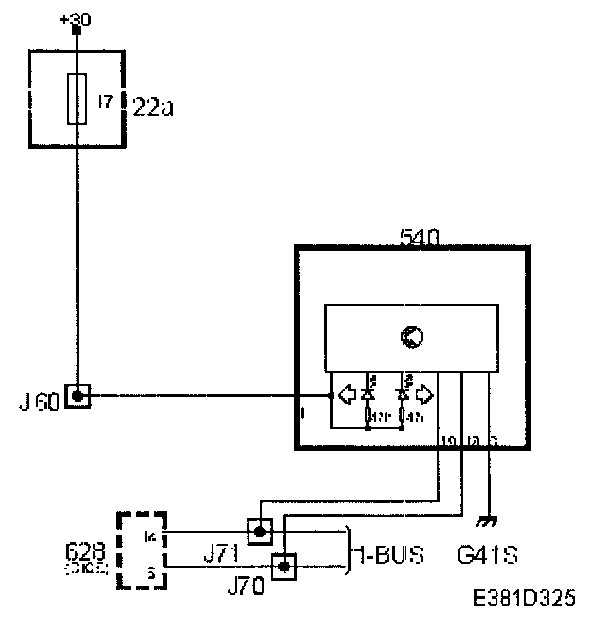

The repeater lamps are situated in the upper part of the main instrument unit and show when the direction indicators are on.


The lamps are powered from the main instrument unit and grounded internally by the main instrument unit. DICE continuously sends bus information status for INDICATORS RIGHT and INDICATORS LEFT, unit ON/OFF


On receiving DIRECTION INDICATORS ON, the control module grounds the output of the lamp in question which then lights up.


Example


If the LH direction indicators are activated, DICE will change the status of the information DIRECTION INDICATORS LEFT ON/OFF at the same time as the direction indicator lamps are lit. In this way, the main instrument unit control module can synch ronise the flashing of the repeater lamps with the direction indicator lamps.


The SID control module also activates the TICITAC sound at the same time as the lamps flash. The function is the same for the RH direction indicators.
