Door Indicatior, Information Display

Door Indicator, Information Display

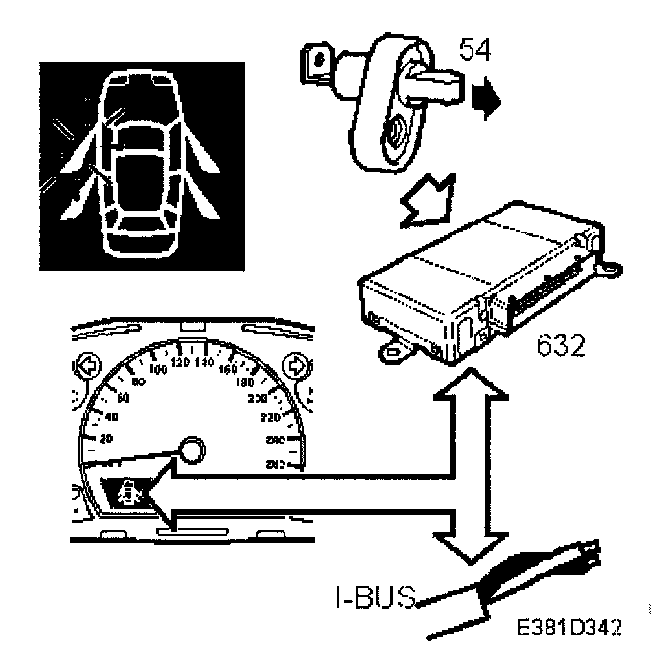

The door indicator pictogram is displayed if any door or the tailgate is open. The door indicator symbols have an orange background illumination.


The background lighting intensity of the display is controlled by the rheostat value.


TWICE continuously sends bus information on the status of the doors and tailgate, unit OPEN/CLOSED.



Example


When the driver1s door is open and the other doors and tailgate are closed, the following information is sent:


Driver's door Open


Passenger's door Closed


Rear door LH Closed


Rear door RH Closed


Tailgate Closed



The car symbol always lights up if any door or the tailgate is open.


Diagnosis

The function has no diagnostics.
