ESP Indicator, Information Display

ESP Indicator, Information Display

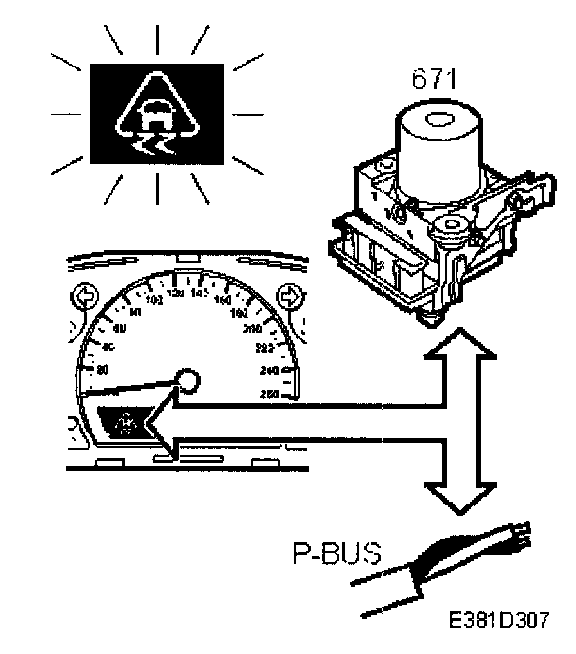

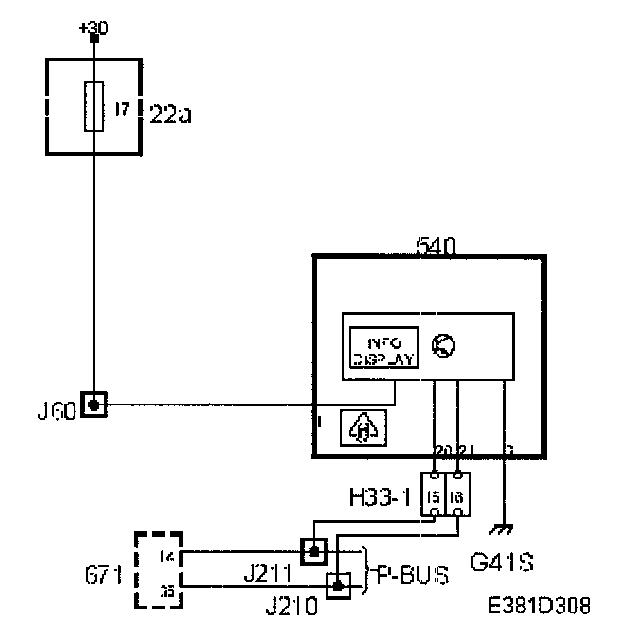

The ESP function indicator is shown on the information display when ESP regulation is active. If a fault arises in the ESP system, the ESP OFF indicator lamp is switched on via the P bus. The ESP symbol on the display is activated by the ESP control module which sends out information on the P bus.


The symbol is switched on during ESP regulation after a short time delay (300 ms) and is subsequently on so long as the system is operative, although not less than one second.


When turning on the ignition, the ESP OFF lamp is switched on for 3-5 seconds.

Diagnosis


The function has no diagnostics.
