Lights-On Indicator Lamp

Lights-On Indicator Lamp








An indicator lamp shows when the headlights are switched on. The lamp is located on the lower edge to the left of the speedometer.

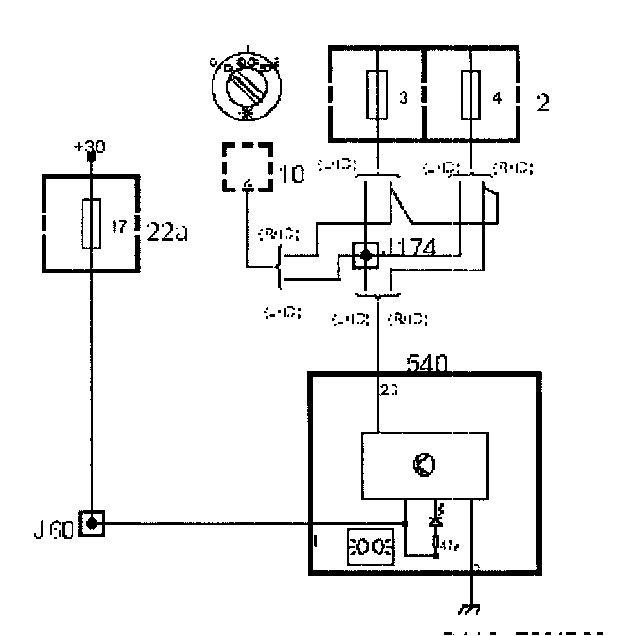

The lamp is powered from the main instrument unit and grounded internally by the main instrument unit. The indicator lamp is turned on by the control module when the main instrument unit input (pin 23) is powered with B+ from the light switch.


Diagnosis


The function has no diagnostics.
