Parking Heater Indicator Lamp


Parking Heater Indicator Lamp

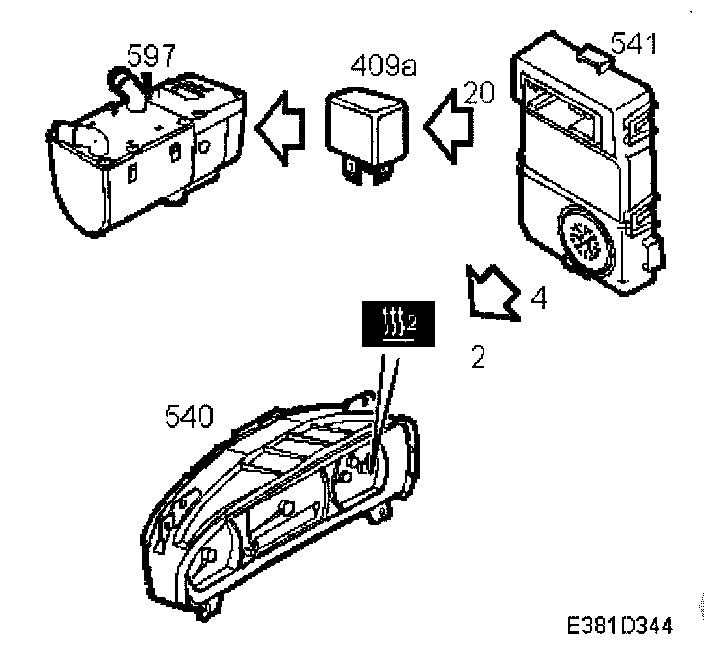

The parking heater indicator lamp is located on the right of the main instrument unit. The indicator lamp is lit when the heater is active.


The lamp is supplied from the main instrument unit and grounded by the SID control module via pin 2 in the main instrument unit.


Diagnosis


The function has no diagnostics.
