Fuse Block: Application and ID

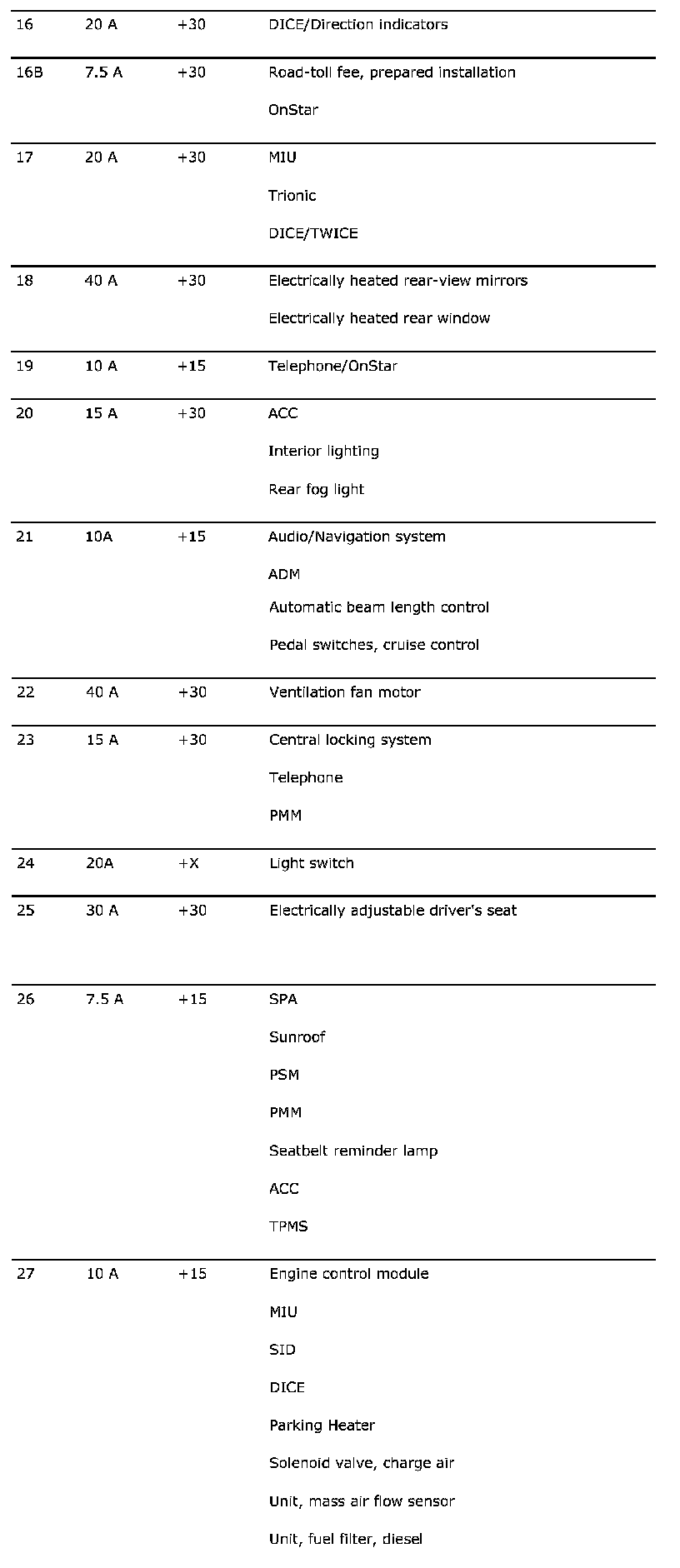

Main Fuse Board 22a In The Dashboard

Location: On the short side of dashboard beside driver's door.

Upper socket is input current.

LHD

LHD:





RHD

RHD:
