Saab
>>
2008
>>
9-5 (9600) L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Air Door Actuator / Motor, HVAC
>>

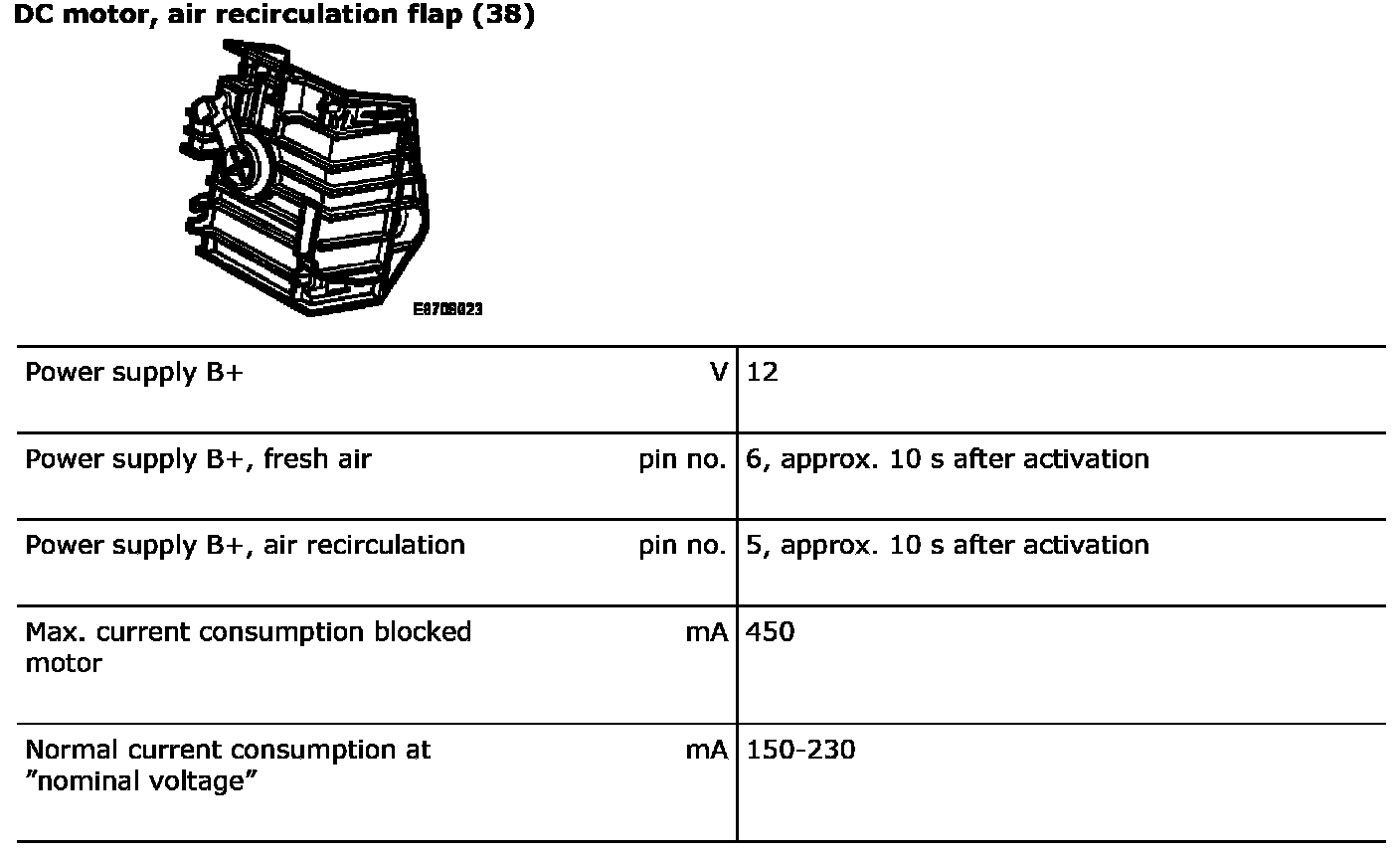

DC Motor, Air Recirculation Flap (38)
DC Motor, Air Recirculation Flap (38)
DC Motor, Air Recirculation Flap (38):
