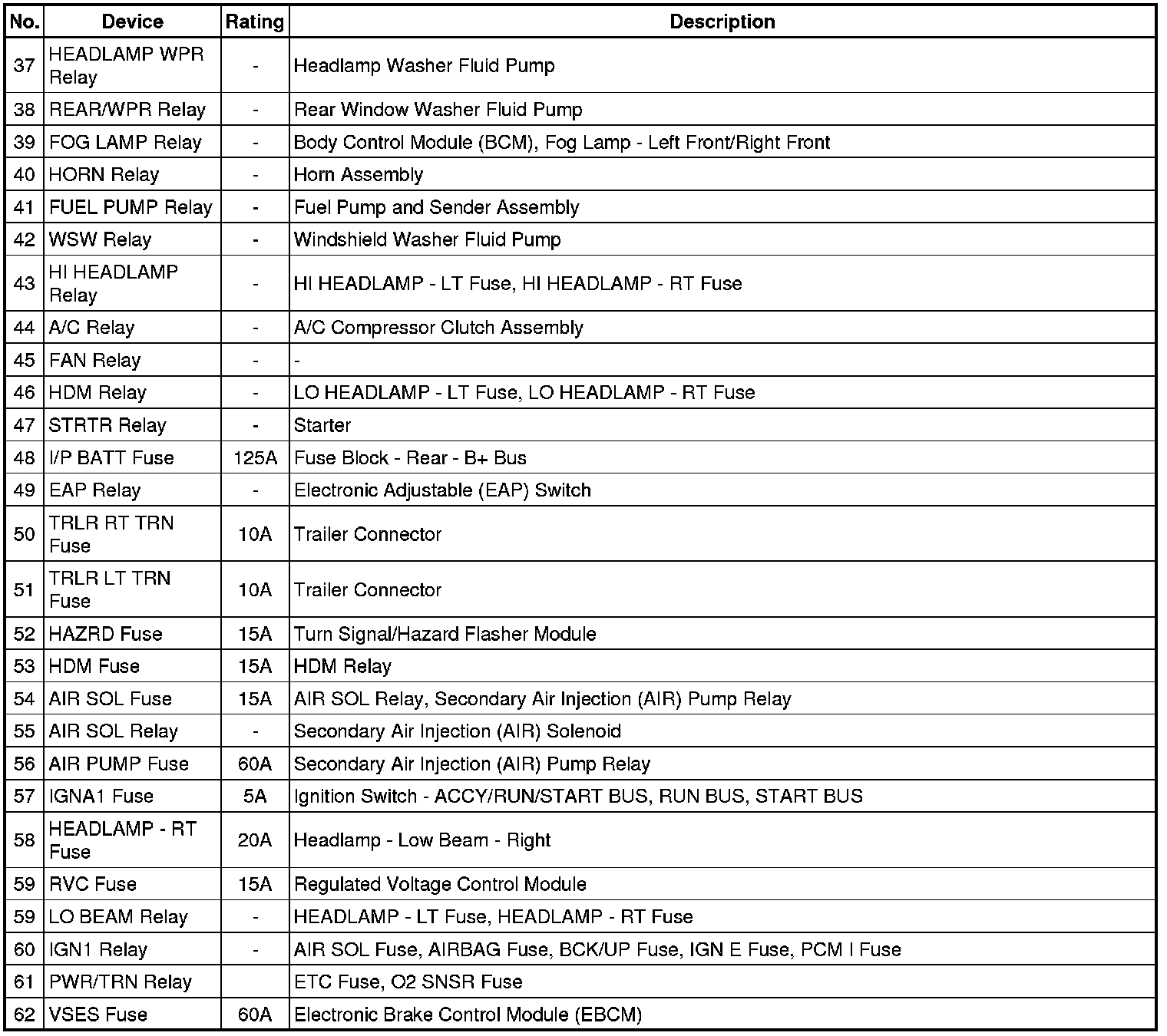

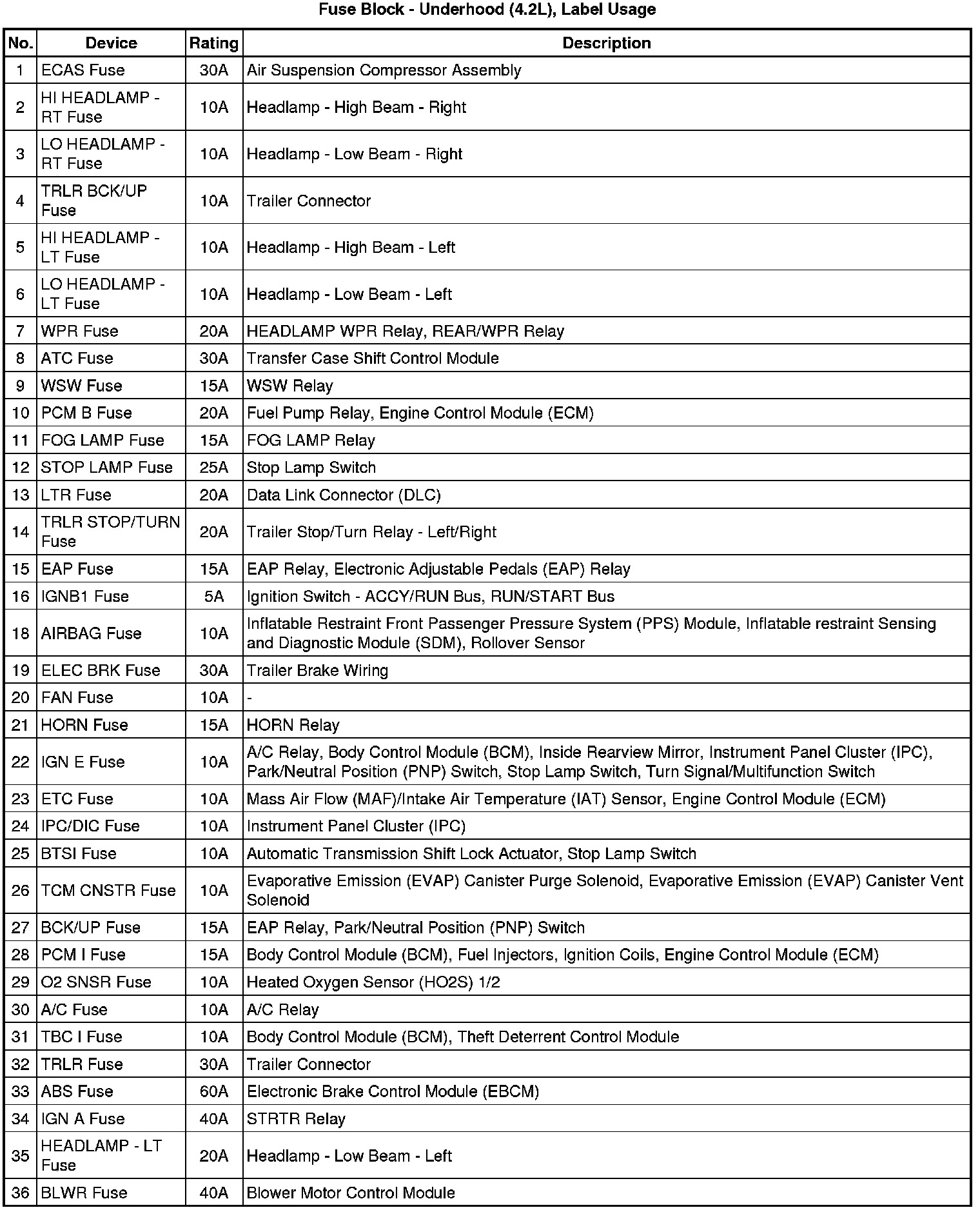

Fuse Block - Underhood (4.2L), Label
Fuse Block - Underhood (4.2L), Label
Electrical Center Identification Views
Fuse Block
- Underhood (4.2L), Label
