System Diagram



Wiper/Washer Connector End Views

Headlamp Washer Fluid Pump (CE4)













Rear Window Washer Fluid Pump













Rear Window Wiper Motor













Rear Window Wiper/Washer Switch

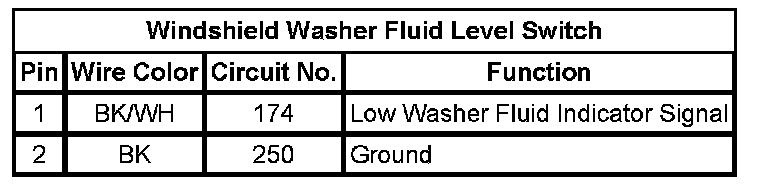

Windshield Washer Fluid Level Switch













Windshield Washer Fluid Pump

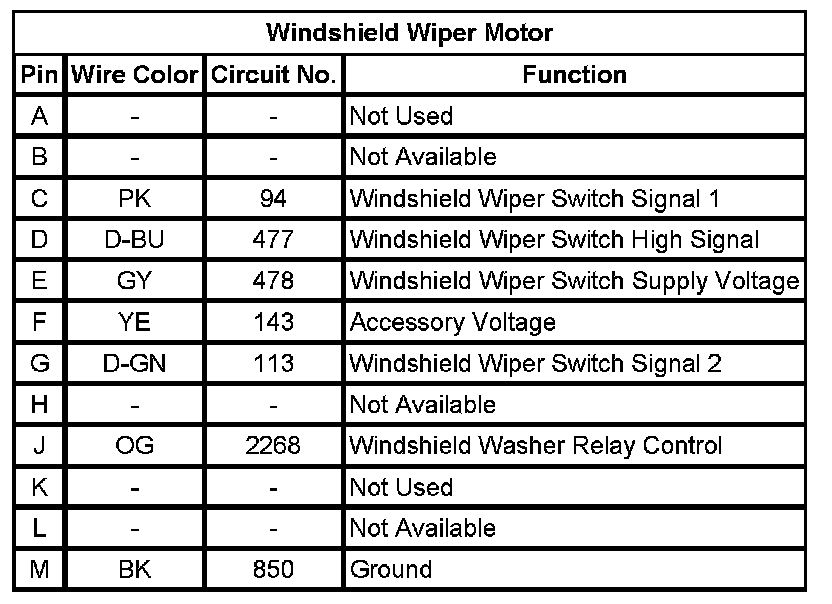

Windshield Wiper Motor













Windshield Wiper/Washer Switch
