Lamp Harnesses

Harness Routing Views

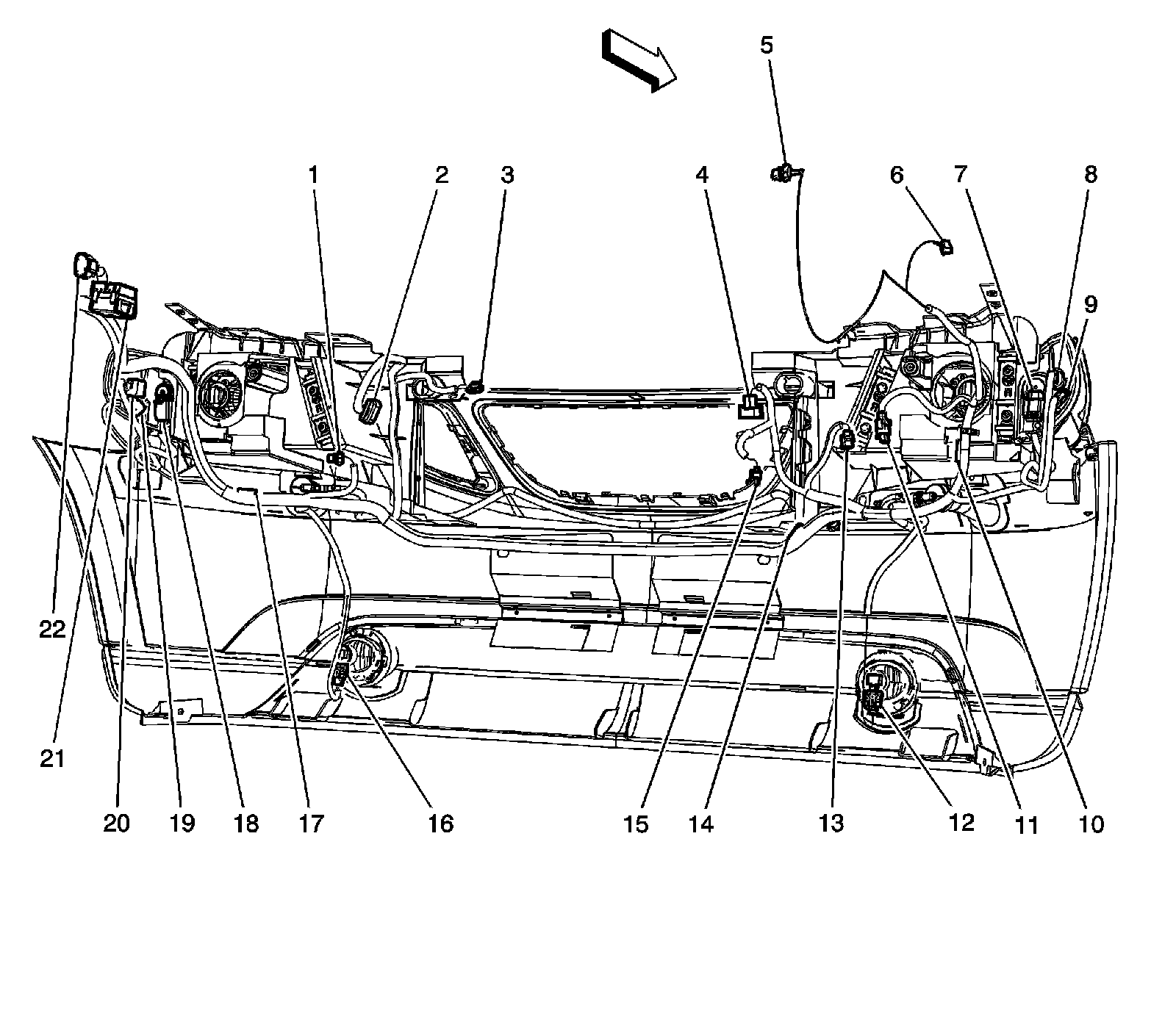

Forward Lamp Harness Routing




1 - Horn Assembly
2 - C118
3 - Ambient Air Temperature Sensor
4 - Headlamp Washer Fluid Pump (CE4)
5 - A/C Low Pressure Switch
6 - G103
7 - Park/Turn Signal Lamp - RF
8 - Marker Lamp - RF
9 - C103
10 - S103
11 - Rear Window Washer Fluid Pump
12 - Fog Lamp - RF
13 - Windshield Washer Fluid Pump
14 - S113
15 - Windshield Washer Fluid Level Switch
16 - Fog Lamp - LF
17 - S107
18 - Park/Turn Signal Lamp - LF
19 - C102
20 - Marker Lamp - LF
21 - Fuse Block - Underhood C4
22 - C105

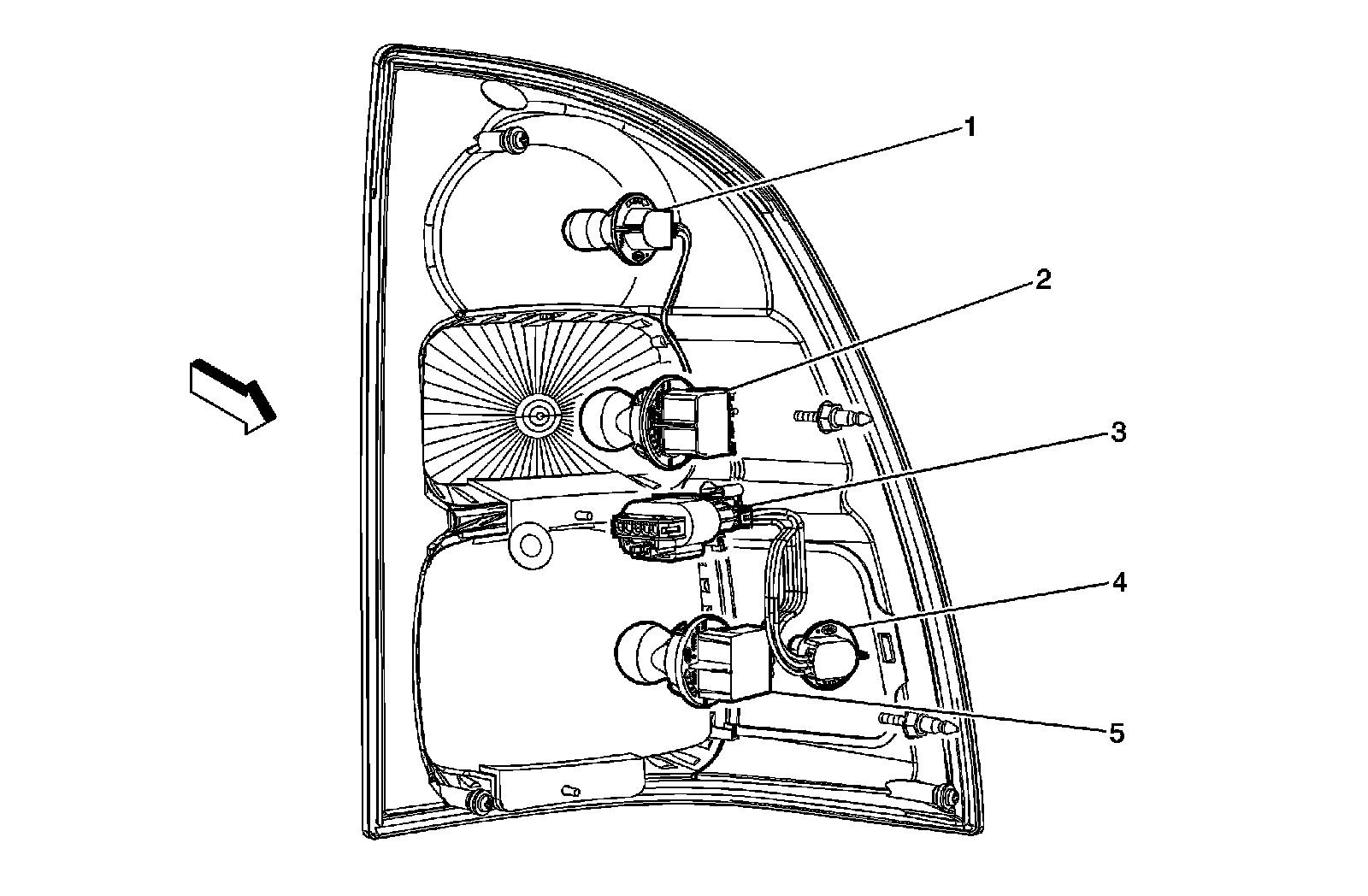

Left Rear Tail Lamps Harness Routing




1 - Backup Lamp - Left
2 - Turn Signal Lamp - LR
3 - C906
4 - Marker Lamp - LR
5 - Stop/Park Lamp - LR

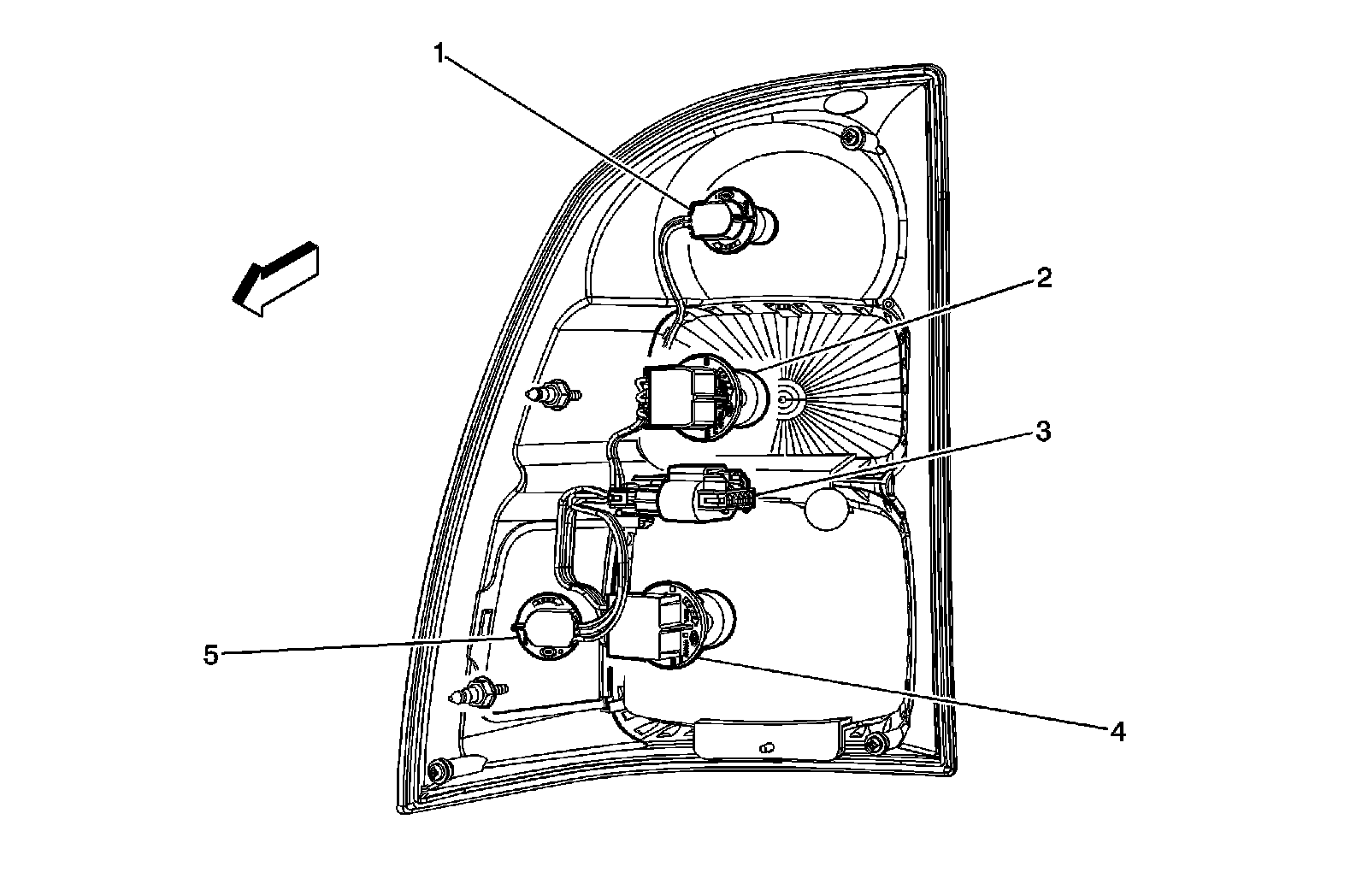

Right Rear Tail Lamps Harness Routing




1 - Backup Lamp - Right
2 - Turn Signal Lamp - RR
3 - C907
4 - Stop/Park Lamp - RR
5 - Marker Lamp - RR
