Engine Controls Schematics 7



Engine Controls Schematics

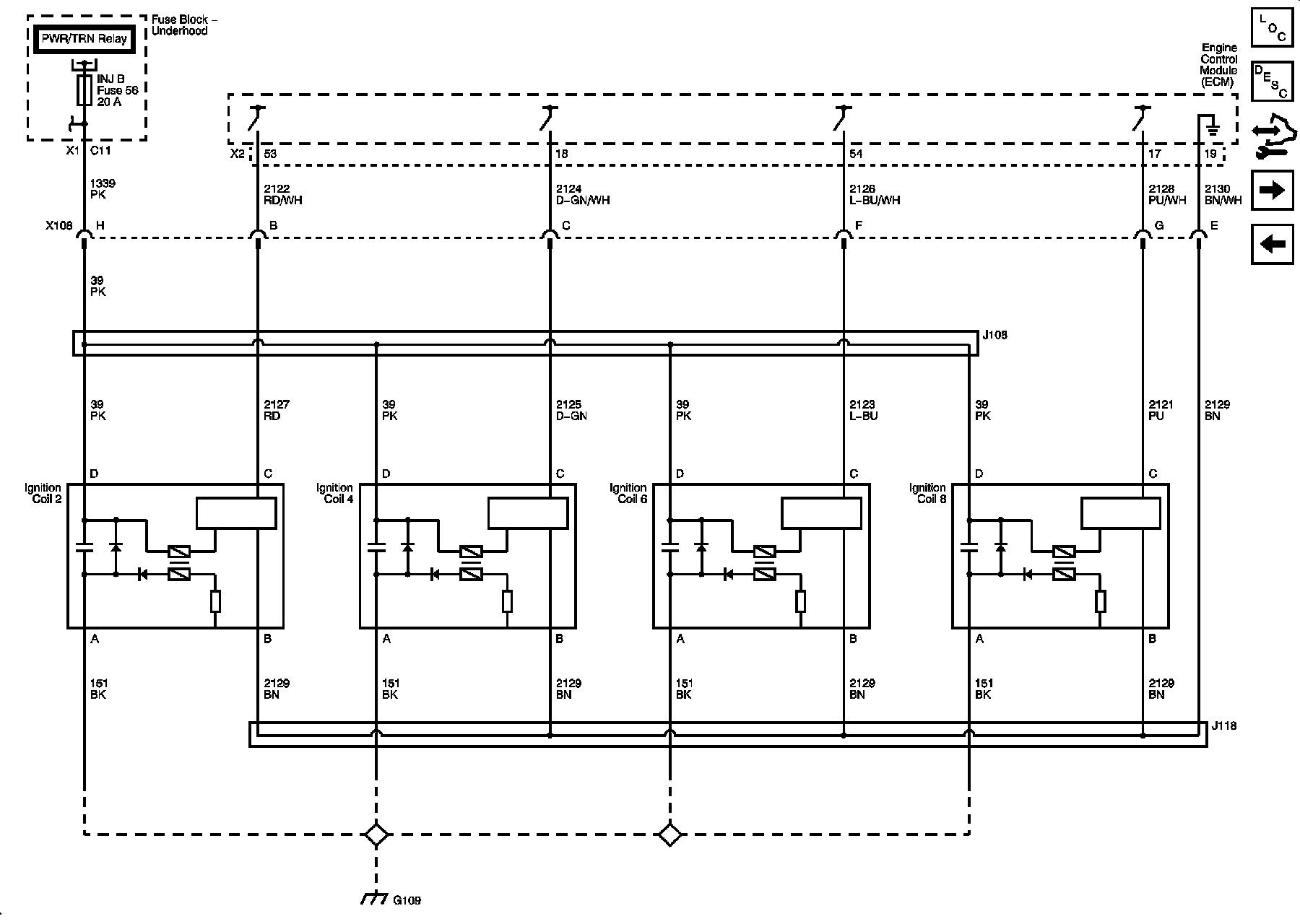

Ignition Controls - Ignition System Coils 2, 4, 6, and 8
