Seat Belt Pretensioner Harness Routing - Right

Harness Routing Views

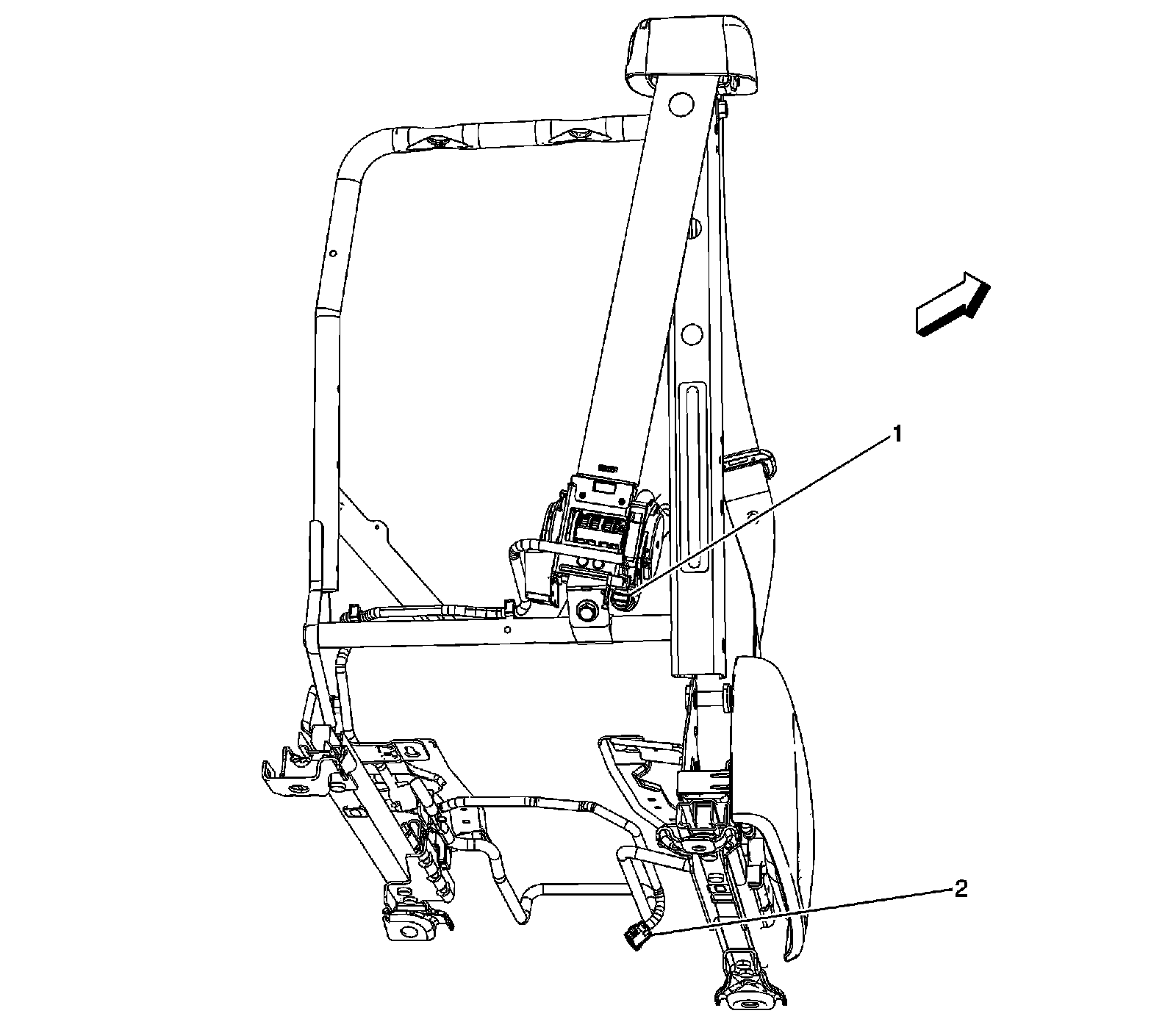

Seat Belt Pretensioner Harness Routing - Right

1 - Seat Belt Pretensioner - Right
2 - C318
