Power Seat Motor
Component Connector End Views

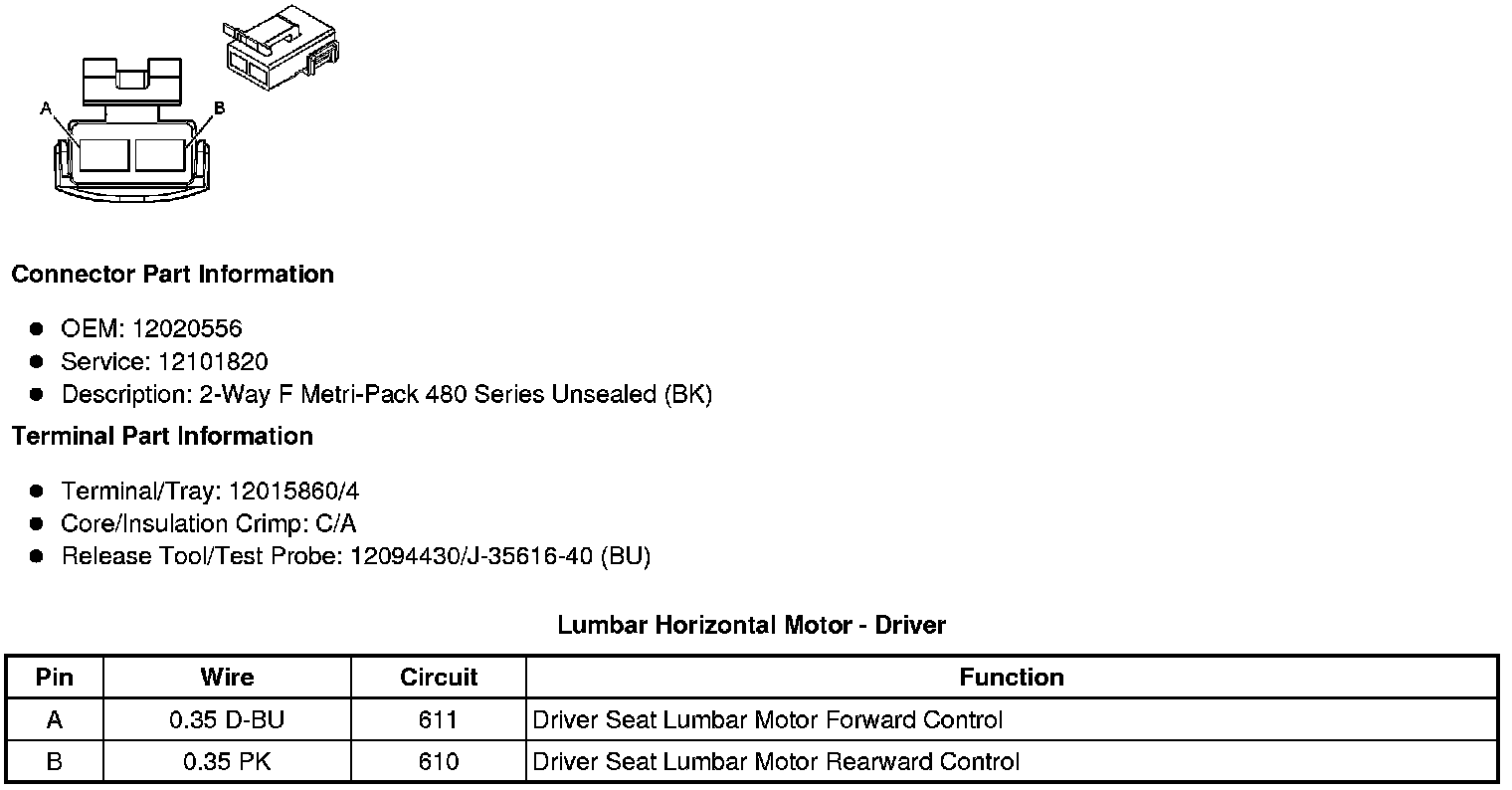

Lumbar Horizontal Motor - Driver

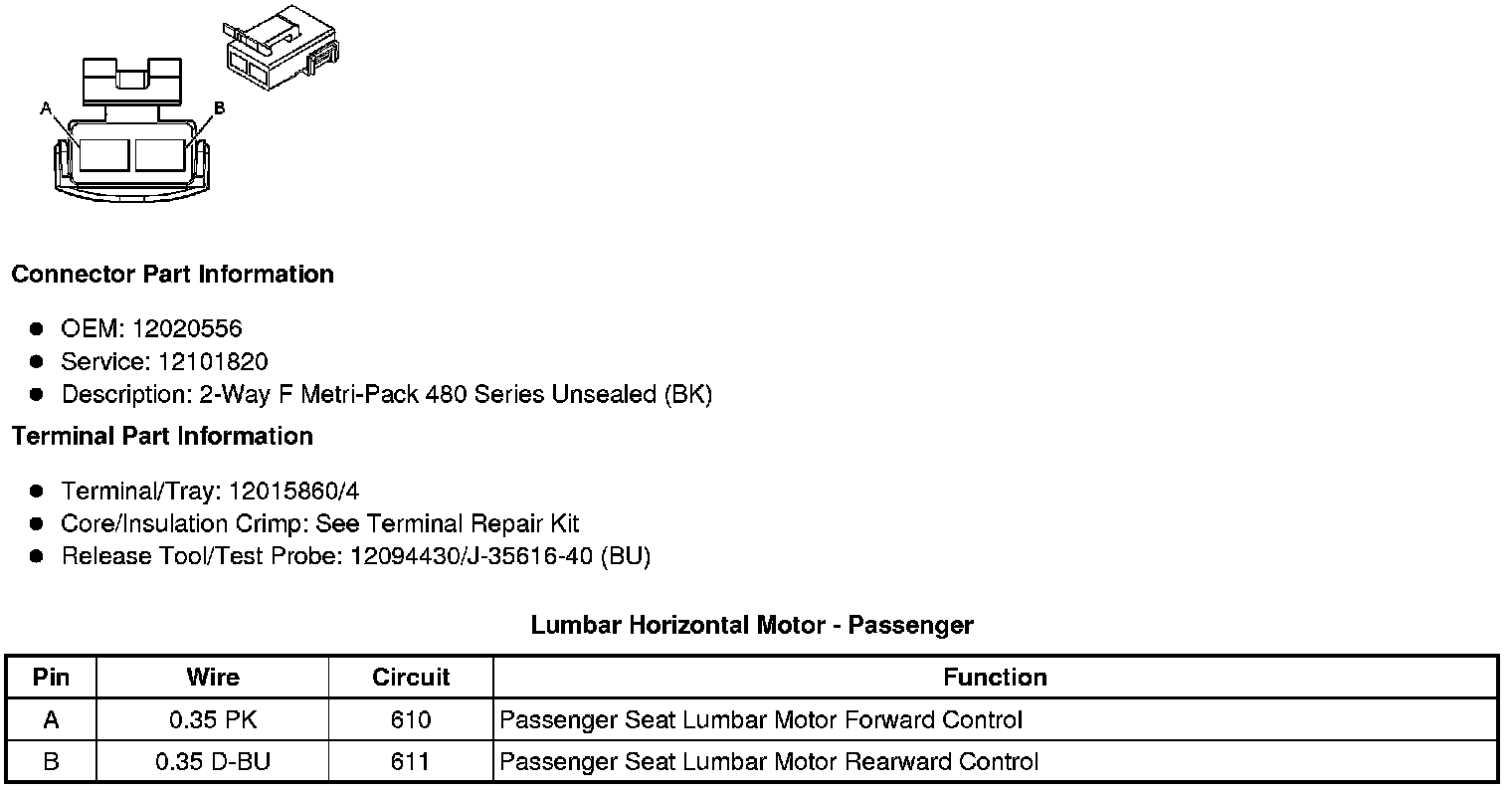

Lumbar Horizontal Motor - Passenger

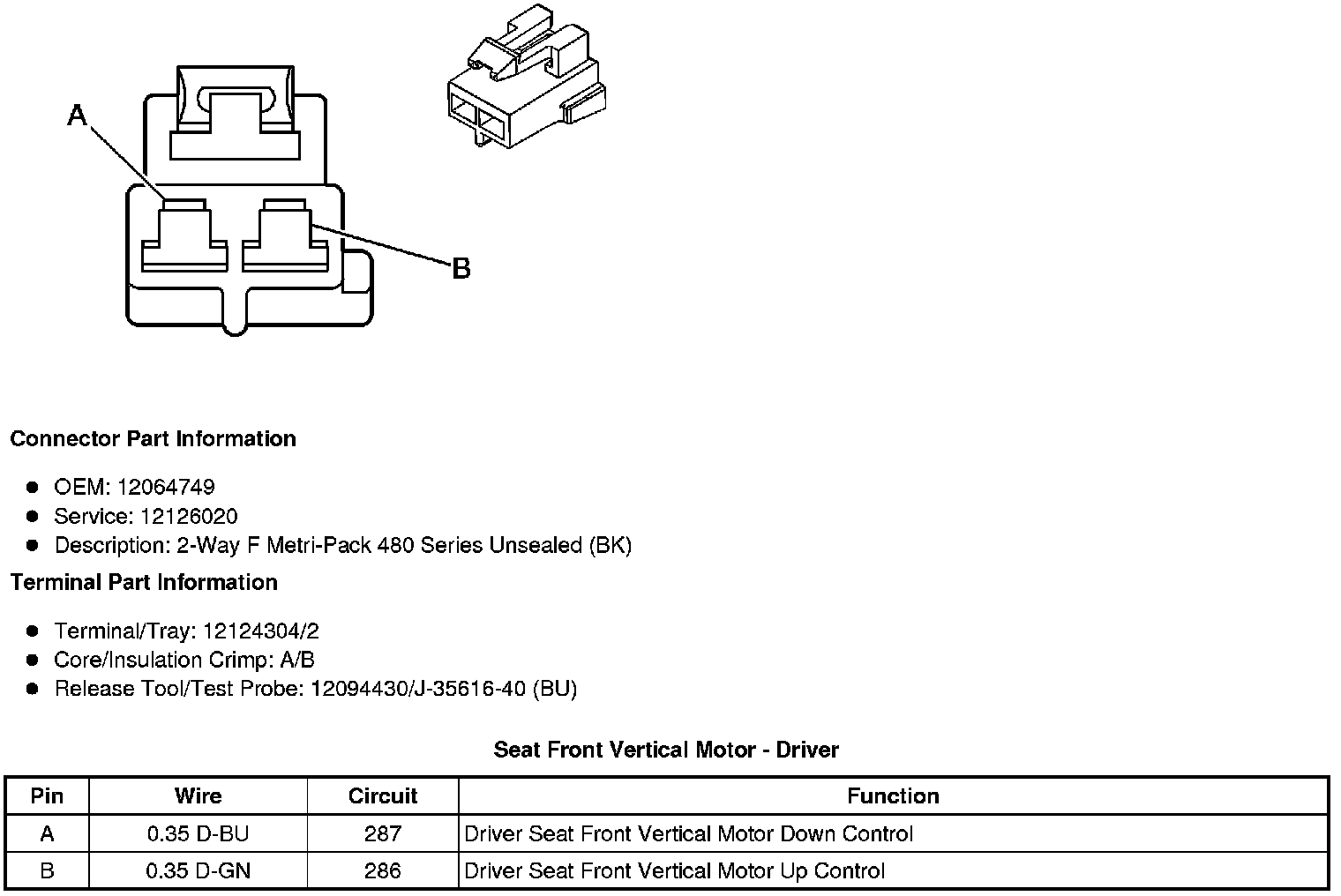

Seat Front Vertical Motor - Driver

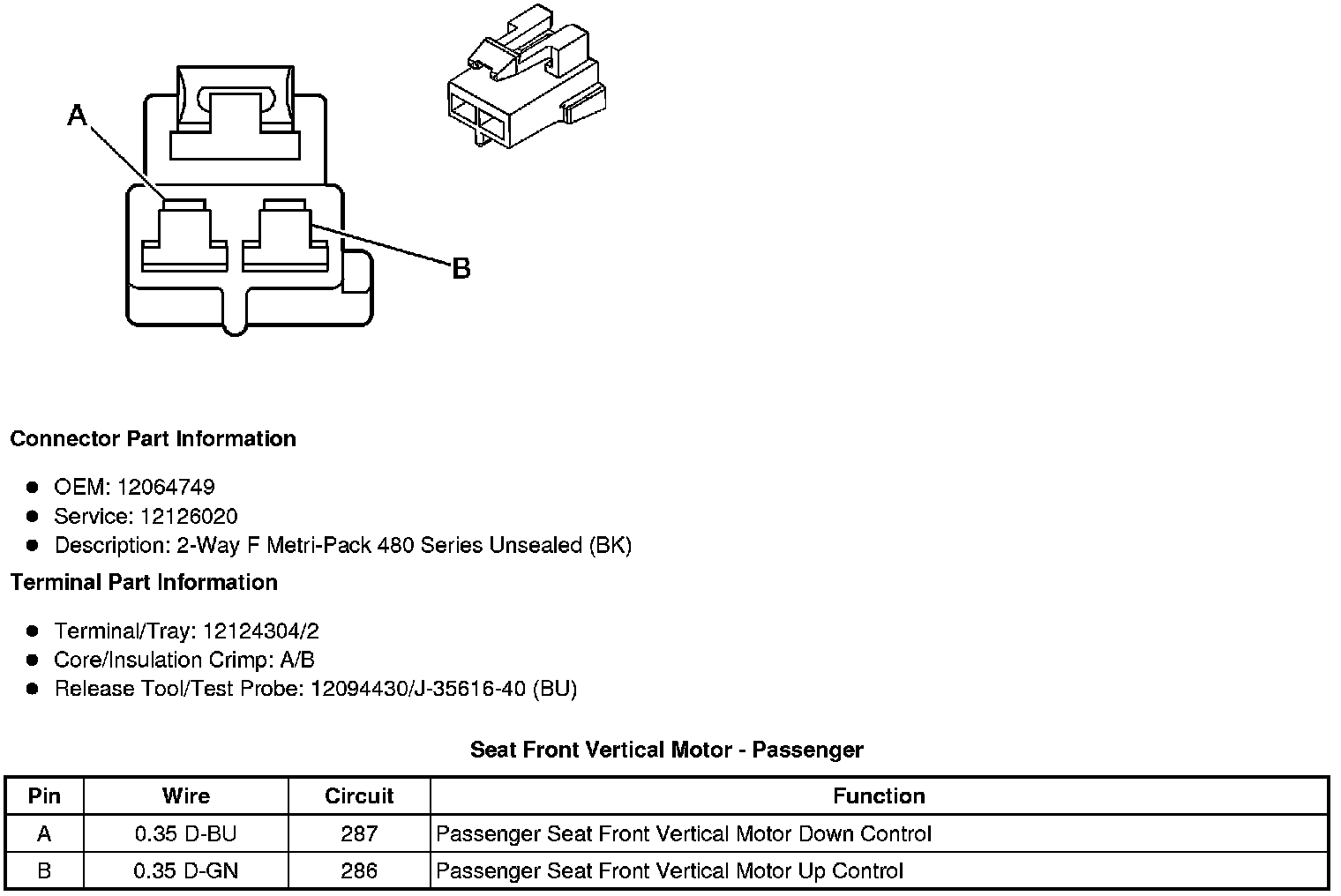

Seat Front Vertical Motor - Passenger

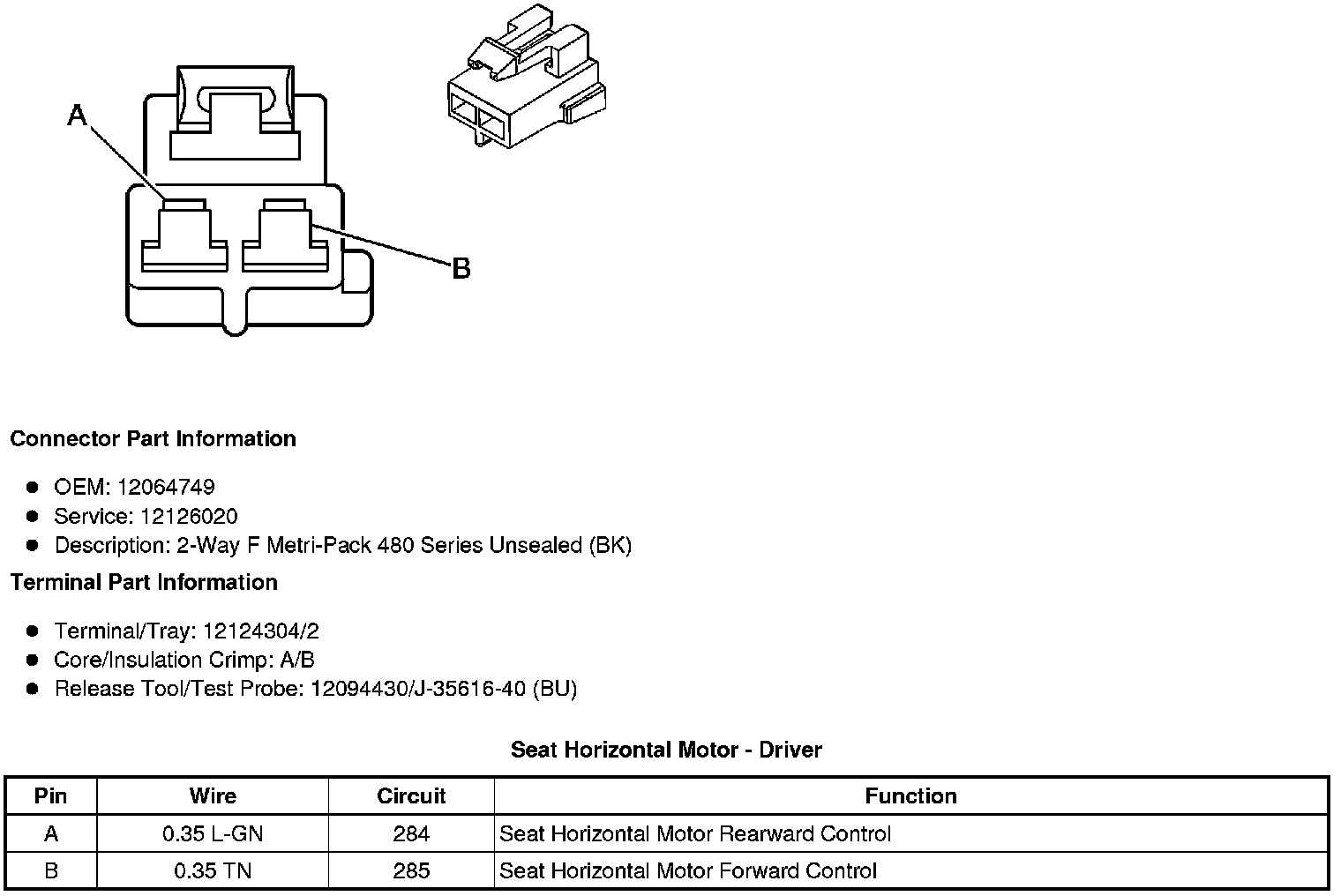

Seat Horizontal Motor - Driver

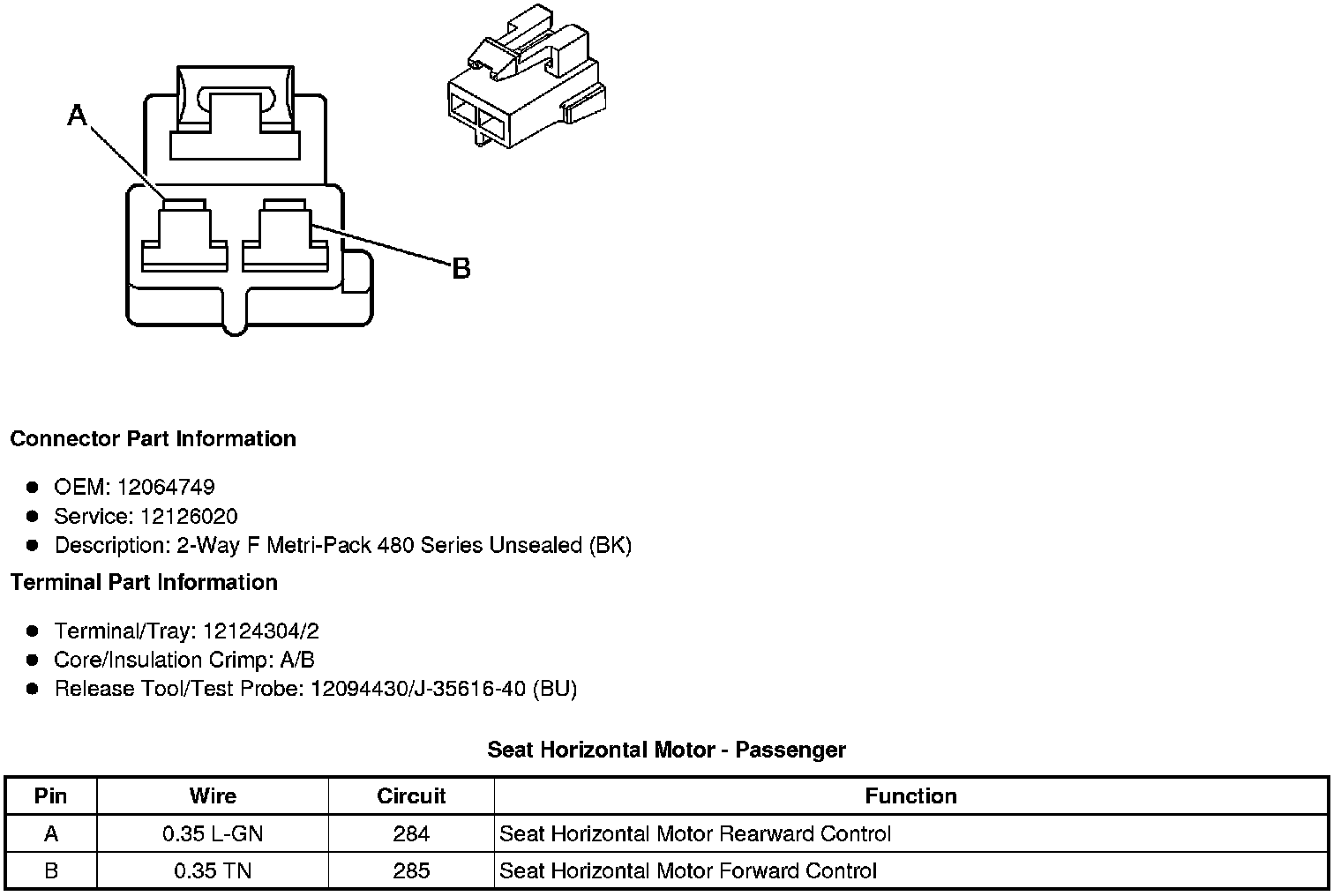

Seat Horizontal Motor - Passenger
Seat Rear Vertical Motor - Driver

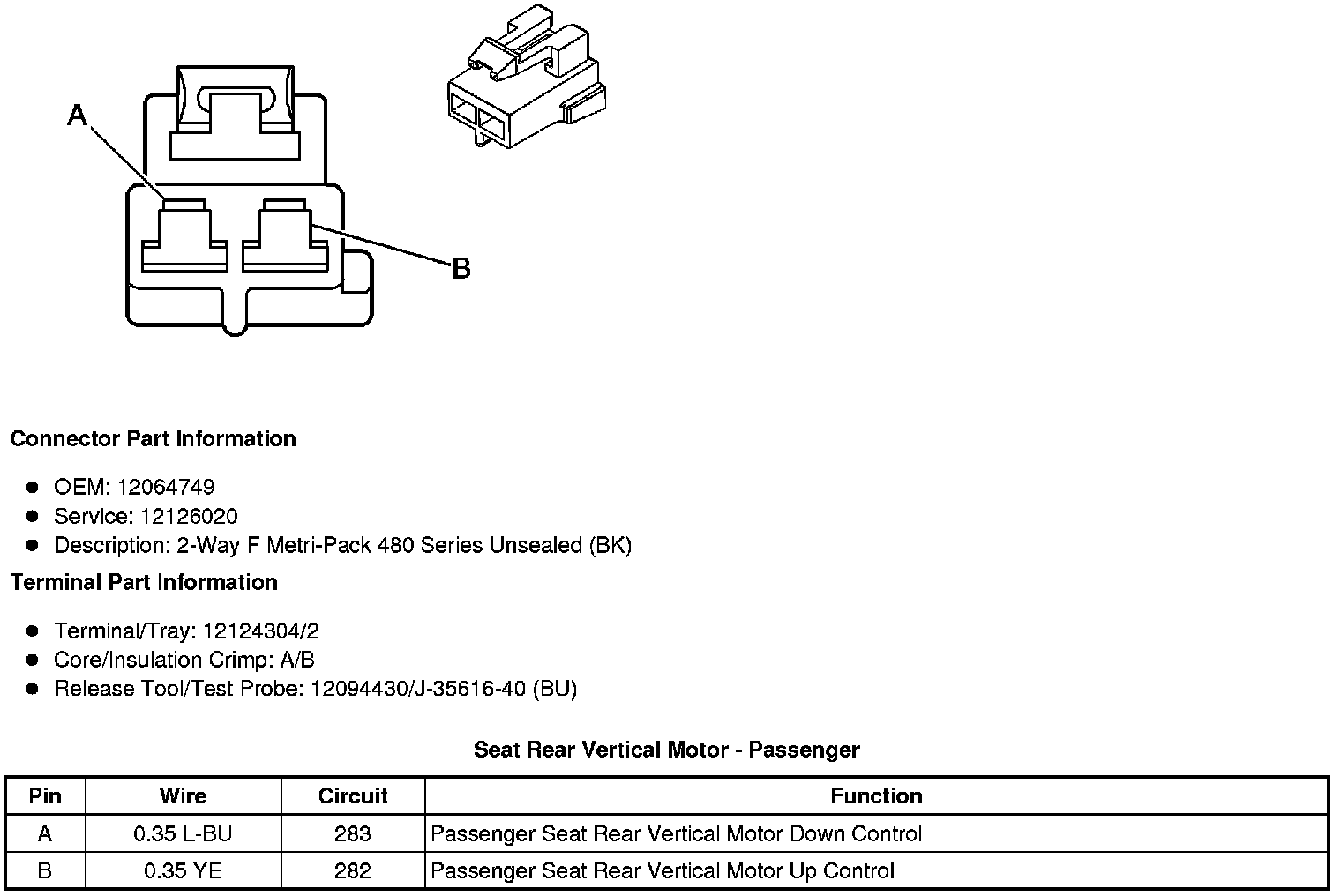

Seat Rear Vertical Motor - Passenger

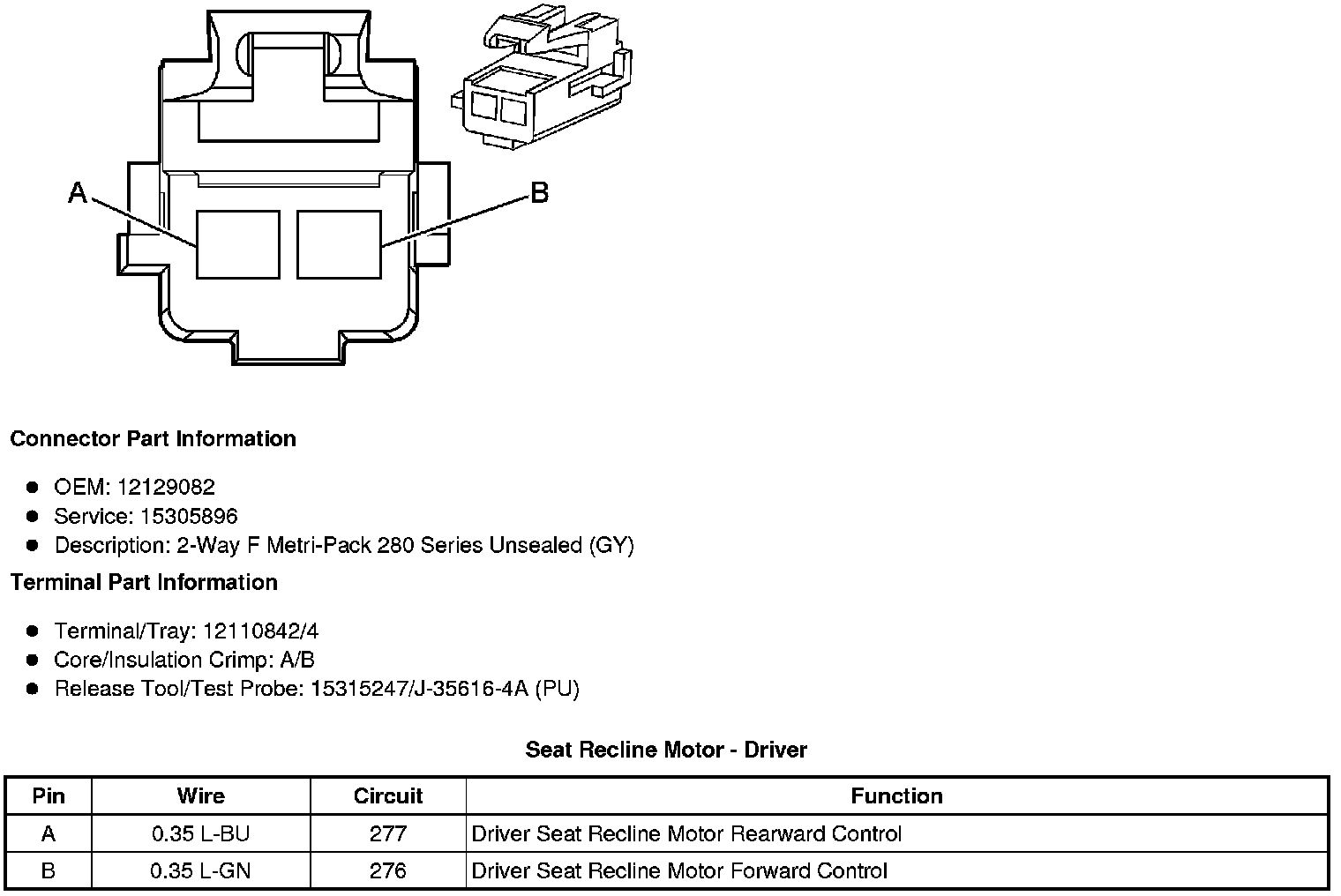

Seat Recline Motor - Driver
Seat Recline Motor - Passenger
