Intake Manifold

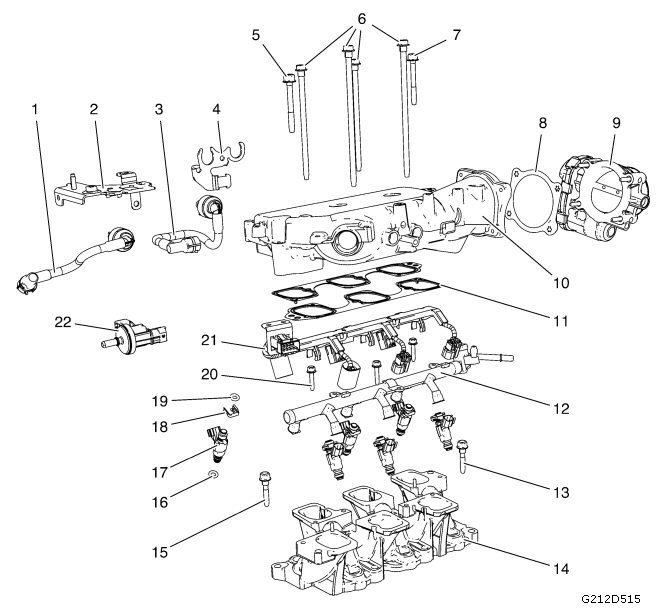

Intake Manifold (LAU)





(1) EVAP Purge Solenoid Tube - Intake Manifold to EVAP Solenoid
(2) EVAP Purge Solenoid Bracket
(3) Dirty PCV Hose
(4) Dirty PCV Hose Bracket
(5) Upper Intake Manifold Bolt - Short
(6) Upper Intake Manifold Bolt - Long
(7) Upper Intake Manifold Bolt - Short
(8) Throttle Body Gasket
(9) Throttle Body
(10) Upper Intake Manifold
(11) Upper Intake Manifold Gasket
(12) Fuel Rail
(13) Lower Intake Manifold Bolt
(14) Lower Intake Manifold
(15) Lower Intake Manifold Bolt
(16) Fuel Injector Lower Seal
(17) Fuel Injector
(18) Fuel Injector Retainer
(19) Fuel Injector Upper Seal
(20) Fuel Rail Bolt
(21) Fuel Injector Wiring Harness
(22) EVAP Purge Solenoid
